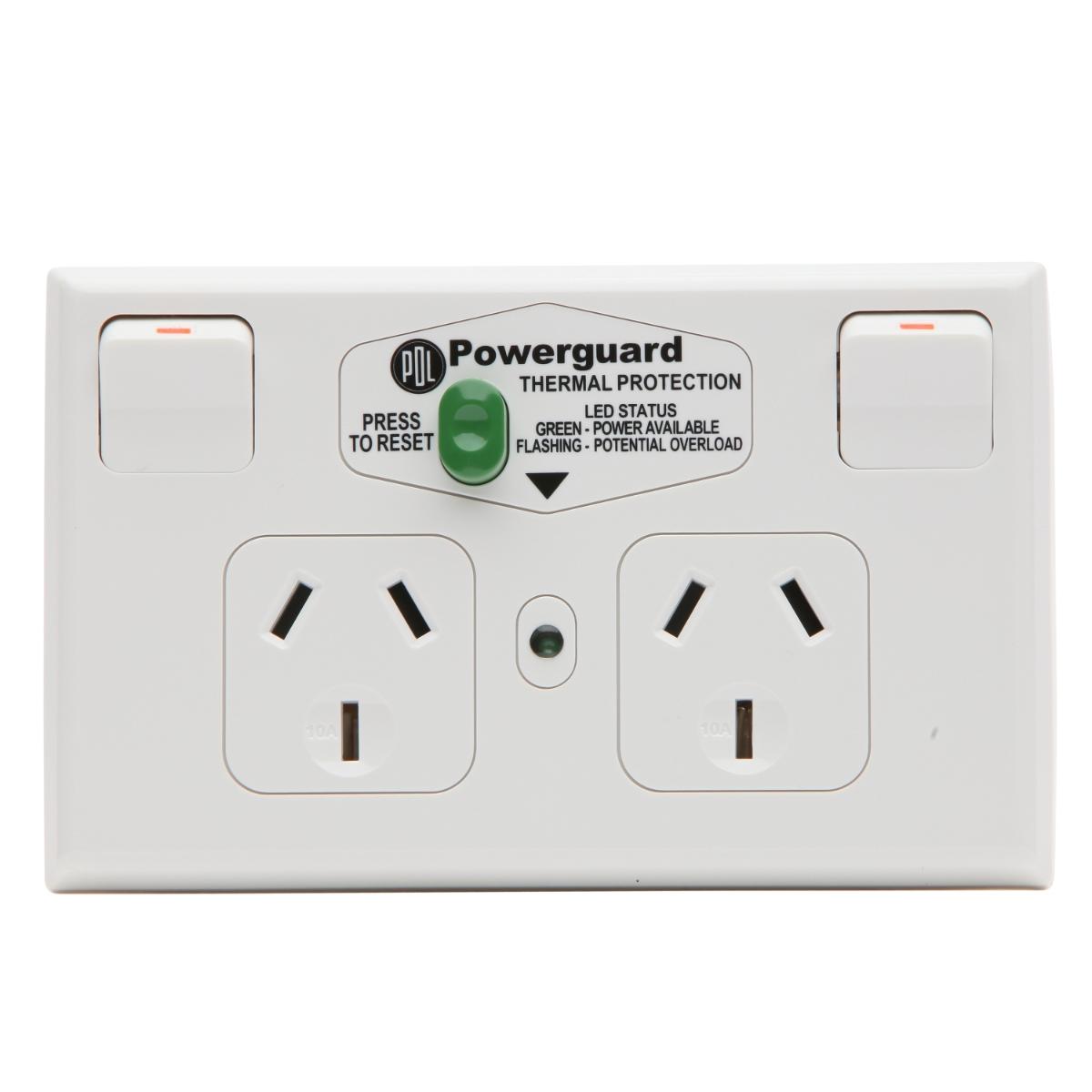

PDL PDL695TWH Twin Double Switch Socket With Thermal and Over-Current Protection, Clipsal - 600 Series, 10A 2P, White
Code: PDL695TWH
Unit of measure:
EACH
Description
PDL PDL695TWH 600 Series Twin Double Switch Socket With Thermal & Over-current Protection, 10a, 2p, White
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Colour tint | white |
| Installation direction | horizontal |
| Ambient air temperature for operation | -10-40 °C |
| Colour | White |
| Gang | 2 Gang |
| Rated current | 10 A |
| Mounting mode | surface mounted |
| Voltage | 250 VAC |
| UNSPCS | 39121400 |
| Number of Pins | 3 Pin |
| Height | 74mm |
| Network frequency | 50 Hz |
| Width | 118mm |
| Type of packing | carton |
| Cut-out dimensions | 50mm |
| [Ue] rated operational voltage | 230/240 V |
| Material | PC (polycarbonate) |
| Pole Configuration | 2 Pole |
| Control type | rocker |
| Quantity per set | set of 10 |
| Range | 600 Series |
| Brand Name | PDL |
| Surface finish | gloss |
| Item Name | Outlet Socket Switch |
| EAN/UPC | 9336361000597 |
| Type | General Purpose, Thermal Protection |
| Fixing center | 84mm |
| Cable cross section | 3 x 2.5-2.5mm² |
| Number of Poles | 2 |
| Number of Socket Outlets | 2 |
| Current | 10A |
| Product or component type | socket-outlet |
