Description

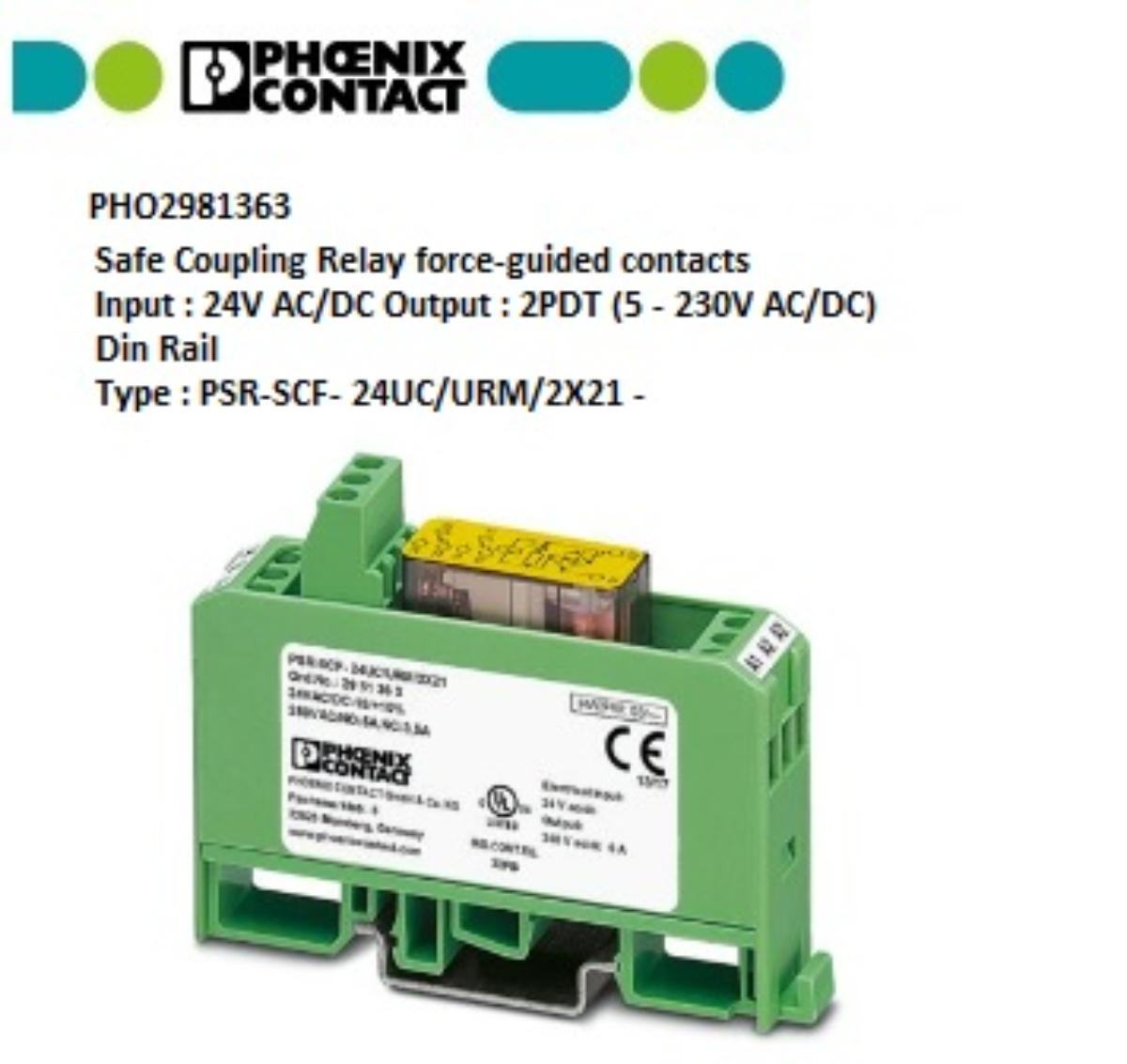

Phoenix Contact 2981363 Safe Coupling Relay force-guided contacts Input : 24V AC/DC Output : 2 PDT (5 - 230V AC/DC) Din Rail Type : PSR-SCF- 24UC/URM/2X21 -
Safe Coupling Relay force-guided contacts Input : 24V AC/DC Output : 2 PDT (5 - 230V AC/DC) Din Rail Type : PSR-SCF- 24UC/URM/2X21 -
Features:
• The safe coupling relay is used for power adaptation and electrical isolation in high and low-demand applications.
• The device couples digital signals from failsafe controllers.
• Alternatively, when used in combination with a suitable basic device the device provides additional output contacts.
• The coupling relay safely interrupts circuits.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Monitoring & Measurement |
| Function Type | Safe Coupling Relay |
| Output Nominal Voltage | 5 - 230V AC/DC |
| Product type | Coupling relay |
| Standard | DIN EN 60947-1 |
| Range | PSRclassic |
| Depth | 60.5mm |
| Brand Name | Phoenix Contact |
| Mounting | Din Rail |
| UOM | EACH |
| Box Quantity | 1 |
| Length | 60.5mm |
| Voltage | 24VDC |
| Height | 75mm |
| Input Voltage range | 24V AC/DC |
| Width | 17.5mm |
