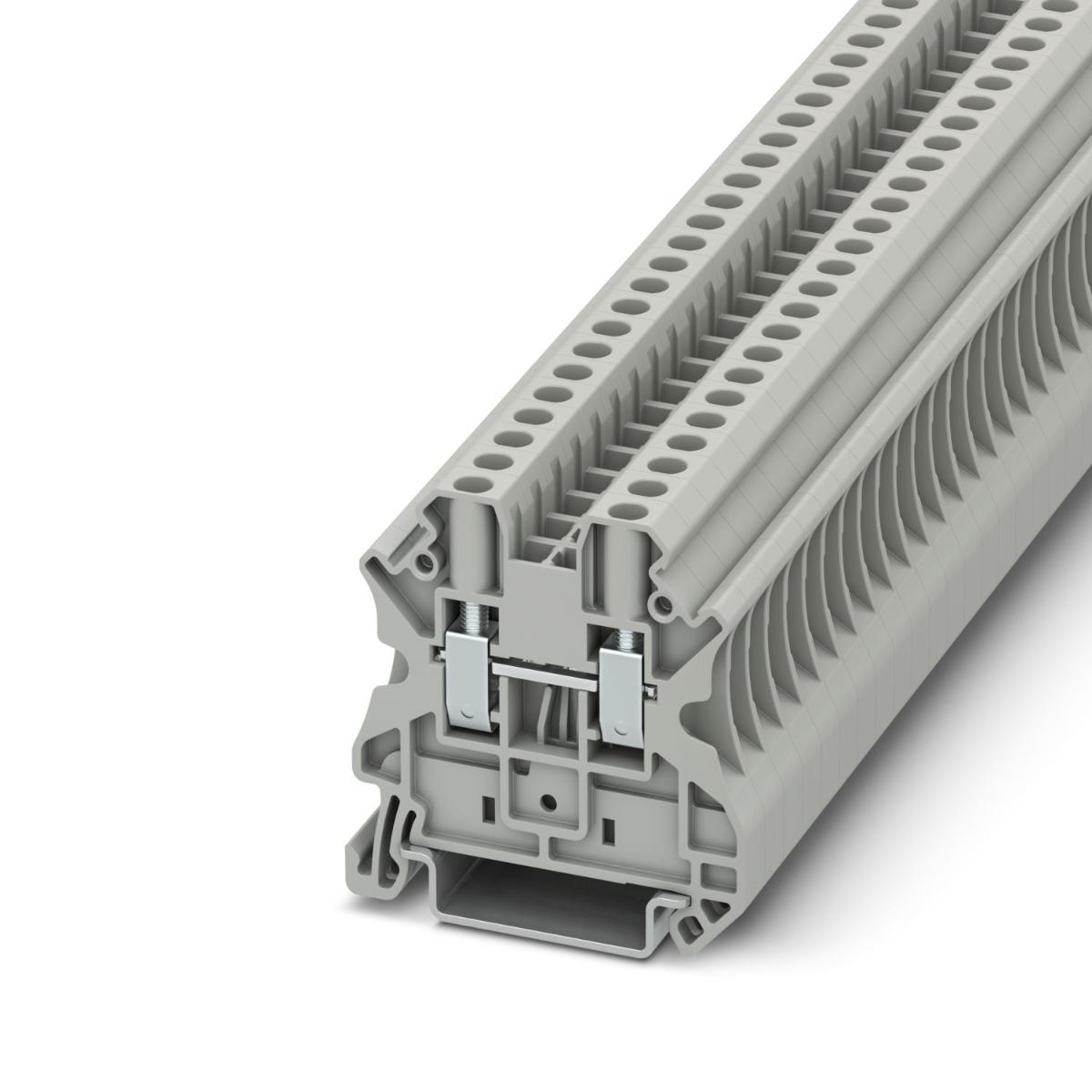

Phoenix Contact 3044102 UT 4 DIN Terminal, Feed-through Block, Screw Connection, 4mm2, 32A, 1000V, 46.9mm x 6.2mm x 47.7mm, Grey
Code: PHO3044102
Unit of measure:
EACH
Description
DIN TERMINAL UT4 GREY
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Standard | CSA/UL/VDE/cUL/LR/GL/DNV/RS/IECEE CB Scheme/EAC/EAC/cULus Recognized |
| Material | Polyamide |
| Range | UT 4 |
| Weight | 8.9kg |
| Colour | Grey |
| Brand Name | Phoenix Contact |
| Item Name | Terminal Block |
| Conductor size | 4mm² |
| UOM | Metric |
| Length | 46.9mm |
| Voltage | 1000V |
| UNSPCS | 39121410 |
| UNSPSC | 39121410 |
| Height | 47.7mm |
| Current | 32A |
| Width | 6.2mm |
