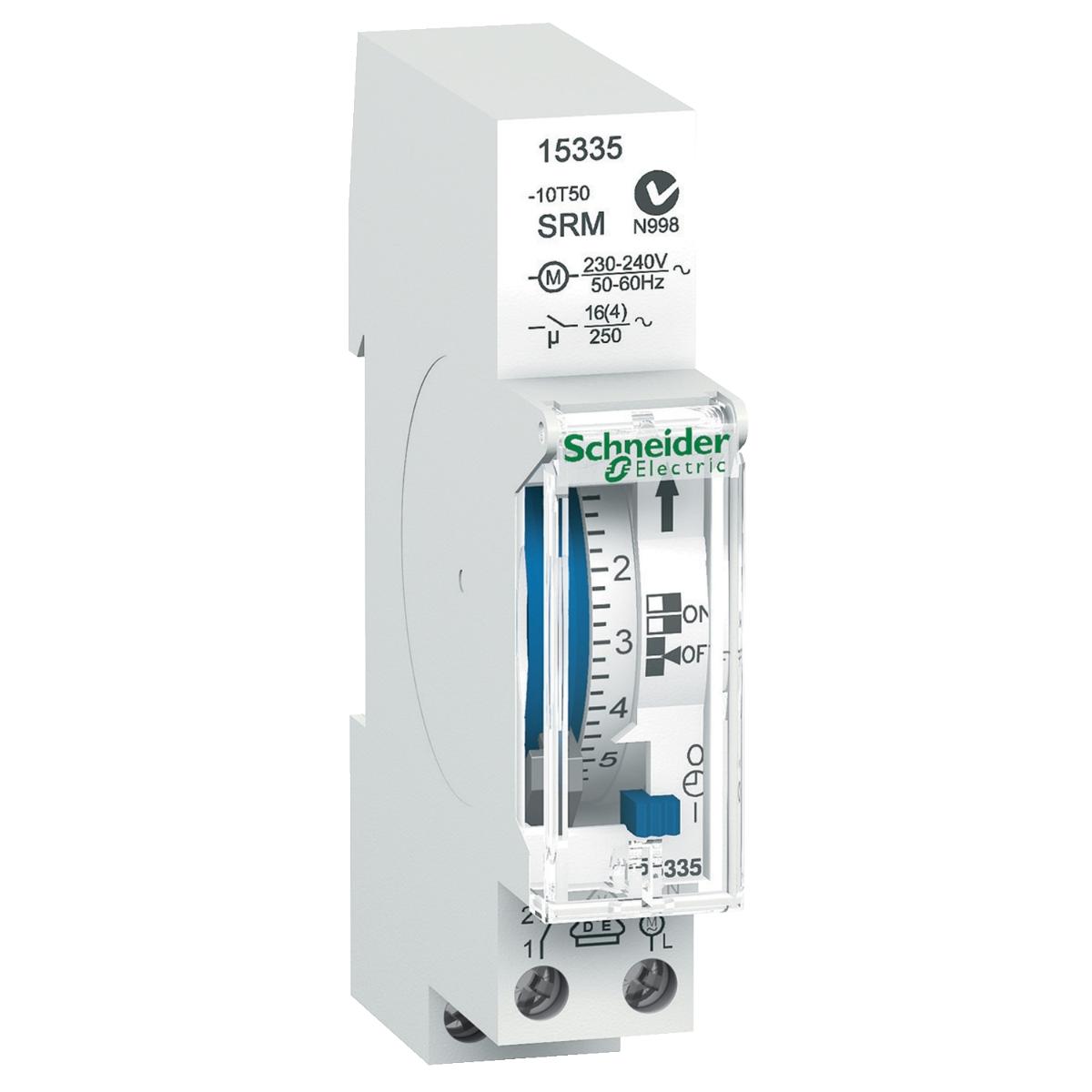

Schneider Electric 15335 IH mechanical time switch, Acti9, 24 h, without memory
Code: SCH15335
Unit of measure:
EACH
Description
Timer Switch
Brand Name: Schneider
Range: Acti9
Contact Configuration: 1 NO
Display: Analog
Number of Channels: 1
Voltage: 230 VAC
Current: 16 A
Dimensions: 90 mm Height x 18 mm Width x 66 mm Depth
Mount: Din Rail
Time Delay: 24 hr
Temperature Rating: -10 to 50 deg C
Degree of Protection: IP20B
No Reserve
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Colour tint | white (RAL 9003) |
| Maximum number of switchings | 48 on - 48 off |
| Updated by | none |
| Mount | Din Rail |
| Depth | 66mm |
| Ambient air temperature for operation | -25-50 °C |
| Mounting support | DIN rail |
| Function | none |
| Supplier Code | 15335 |
| Voltage | 230V |
| Time Delay | 24 Hour |
| Maximum switching current | 4 A - 250 V AC pf = 0.6 |
| Load type | compact fluorescent lamp 150 W |
| Cycle duration | 24 h |
| Height | 90mm |
| Width | 18mm |
| Number of channels | 1 |
| 9 mm pitches | 2 |
| Power consumption in W | 0.5 W |
| Device short name | IH |
| Function available | manual time changeover |
| Compatibility code | IH |
| Device application | building |
| [Ue] rated operational voltage | 230 V AC at 50 Hz |
| IP degree of protection | terminals: IP20 B |
| Range | Acti9 |
| Brand Name | Schneider Electric |
| Time changeover | manual |
| Item Name | Timer Switch |
| Product name | Acti9 IH |
| Minimum interval duration | 15 min |
| Net weight | 0.097 kg |
| Measurement accuracy | +/- 1 s/day 20-20 °C |
| Market segment | small commercial |
| Current | 16A |
| Type of setting | manual time changeover |
| Product or component type | mechanical time switch |
| Absence for holidays | no |
| Connections - terminals | screw terminals |
