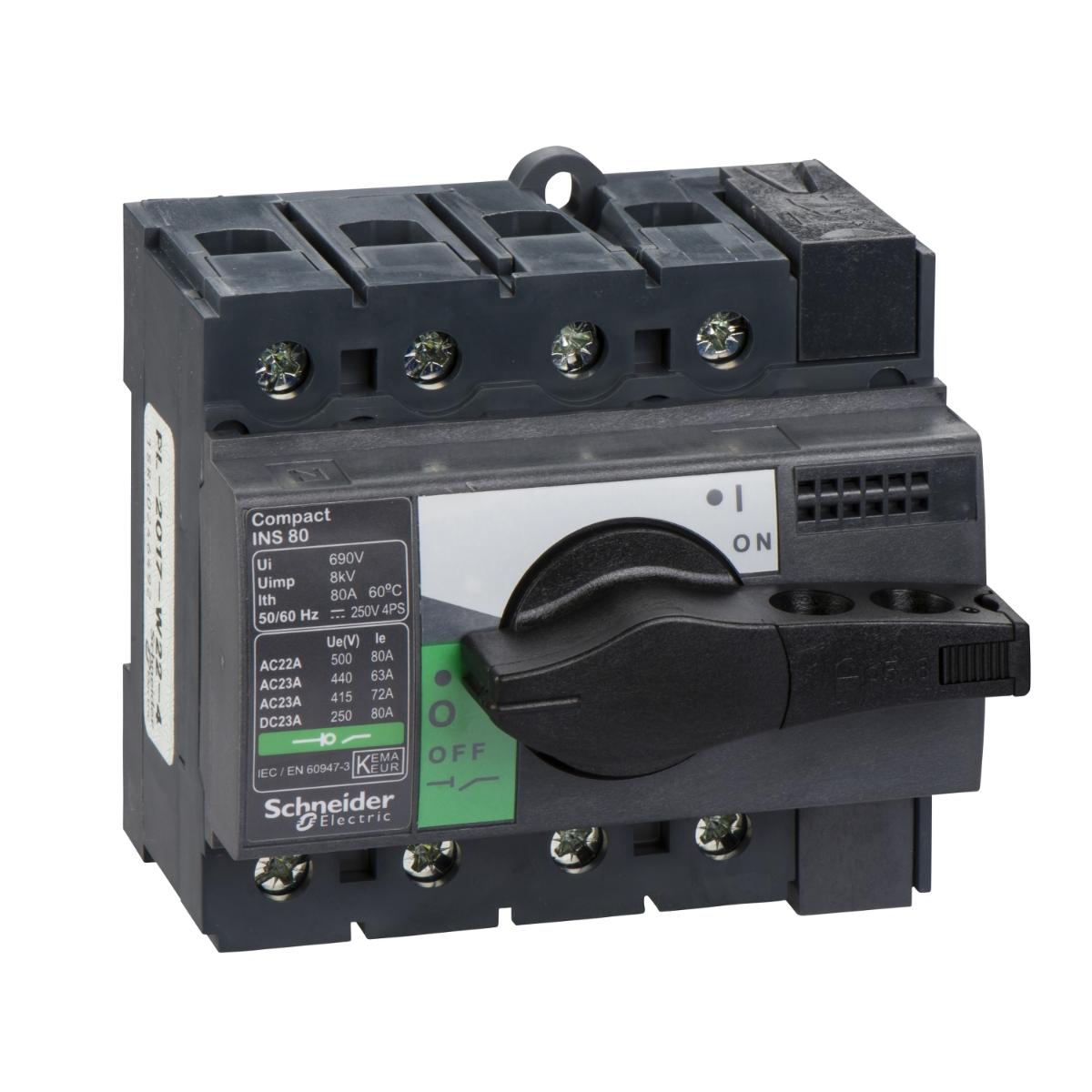

Schneider Electric 28905 switch disconnector, Compact INS80, 80A, standard version with Black rotary handle, 4 poles
Code: SCH28905
Unit of measure:
EACH
Description
INS80 4P 80A - SWITCH DISCONNECTOR
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Icm] rated short-circuit making capacity | 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz |
| Contact position indicator | yes |
| Visible break | no |
| Downside connection | front |
| Suitability for isolation | yes |
| Depth | 62.5mm |
| Ambient air temperature for operation | -25-70 °C |
| Connection pitch | 18mm |
| Mounting support | DIN rail |
| Mounting mode | fixed |
| [Ith] conventional free air thermal current | 80 A at 60 °C |
| Supplier Code | 28905 |
| Mechanical durability | 20000 cycles |
| Ambient air temperature for storage | -50-85 °C |
| Height | 85mm |
| Poles description | 4P |
| Network frequency | 50/60 Hz |
| Width | 90mm |
| [Icw] rated short-time withstand current | 3 kA during 1 s conforming to IEC 60947-3 |
| Device short name | Compact INS80 |
| Compatibility code | INS80 |
| Network type | DC |
| [Ue] rated operational voltage | 250 V DC |
| Control type | rotary handle |
| IP degree of protection | IP40 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| Range | ComPact |
| Standards | IEC 60947-1 |
| Brand Name | Schneider Electric |
| Product certifications | KEMA-KEUR |
| Electrical durability | AC-22A: 1500 cycles 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Upside connection | front |
| Product name | ComPacT INS |
| Switch-disconnector name | Compact INS80 |
| Pollution degree | 3 |
| Cable cross section | 1.5-50mm² |
| Rated duty | uninterrupted |
| Net weight | 0.6 kg |
| IK degree of protection | IK07 conforming to EN 50102 |
| Maximum power | AC-23: 22 kW at 220/240 V AC 50/60 Hz |
| Handle colour | black |
| Intermittent duty class | class 120 - 60 % |
| [Ie] rated operational current | DC-22A: 80 A DC 125 V 2 poles in series |
| Product or component type | switch disconnector |
