SWITCH DISCONN INS125 125A 4P + ROT HDL | Circuit Breakers | Electrical Distribution | All Categories

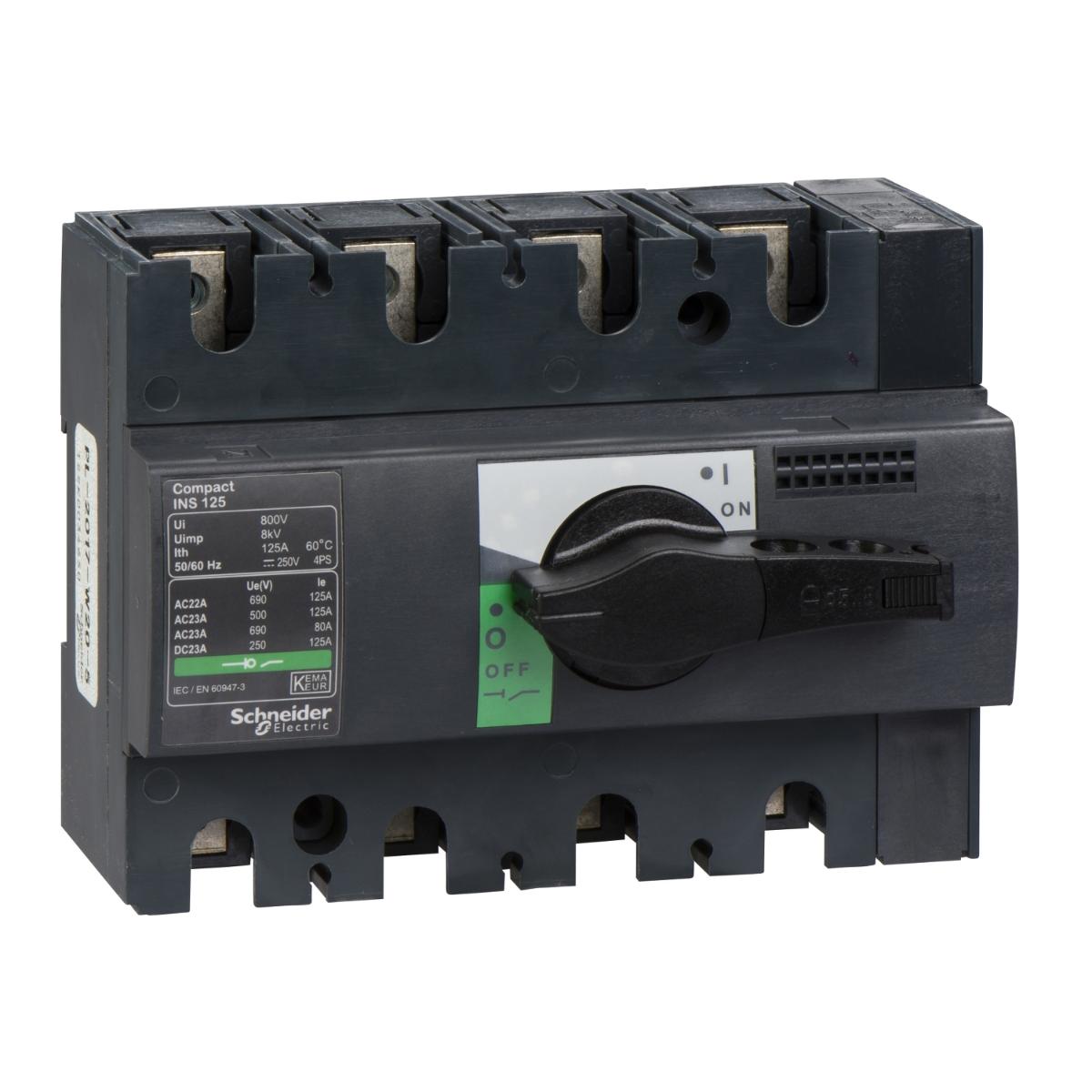

Schneider Electric 28911 switch disconnector, Compact INS125, 125A, standard version with Black rotary handle, 4 poles

Code: SCH28911

Unit of measure: EACH

Description

Schneider Electric 28911 switch disconnector, Compact INS125, 125A, standard version with Black rotary handle, 4 poles

This Compact INS125 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.

Features:
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
• Ergonomic new toggle for easier breaker manual operation

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

[Icm] rated short-circuit making capacity	20 kA switch-disconnector alone 690 V AC at 50/60 Hz
Contact position indicator	yes
Visible break	no
Downside connection	front
Suitability for isolation	yes
Depth	62.5mm
Ambient air temperature for operation	-25-70 °C
Connection pitch	30mm
Mounting support	plate
Mounting mode	fixed
[Ith] conventional free air thermal current	125 A at 60 °C
Supplier Code	28911
Mechanical durability	15000 cycles
Ambient air temperature for storage	-50-85 °C
Height	100mm
Poles description	4P
Network frequency	50/60 Hz
Width	135mm
[Icw] rated short-time withstand current	1.23 kA during 20 s conforming to IEC 60947-3
Device short name	Compact INS125
Compatibility code	INS125
Network type	DC
[Ue] rated operational voltage	690 V AC 50/60 Hz
Control type	rotary handle
IP degree of protection	IP40 conforming to IEC 60529
[Ui] rated insulation voltage	800 V AC 50/60 Hz
Range	ComPact
Standards	IEC 60947-1
Product certifications	KEMA-KEUR
Brand Name	Schneider Electric
Electrical durability	AC-22A: 1500 cycles 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
Upside connection	front
Product name	ComPacT INS
Switch-disconnector name	Compact INS125
Pollution degree	3
Rated duty	uninterrupted
Net weight	0.9 kg
IK degree of protection	IK07 conforming to EN 50102
Maximum power	AC-23: 55 kW at 380/415 V AC 50/60 Hz
Handle colour	black
Intermittent duty class	class 120 - 60 %
[Ie] rated operational current	AC-23A: 125 A AC 50/60 Hz 440/480 V
Product or component type	switch disconnector
