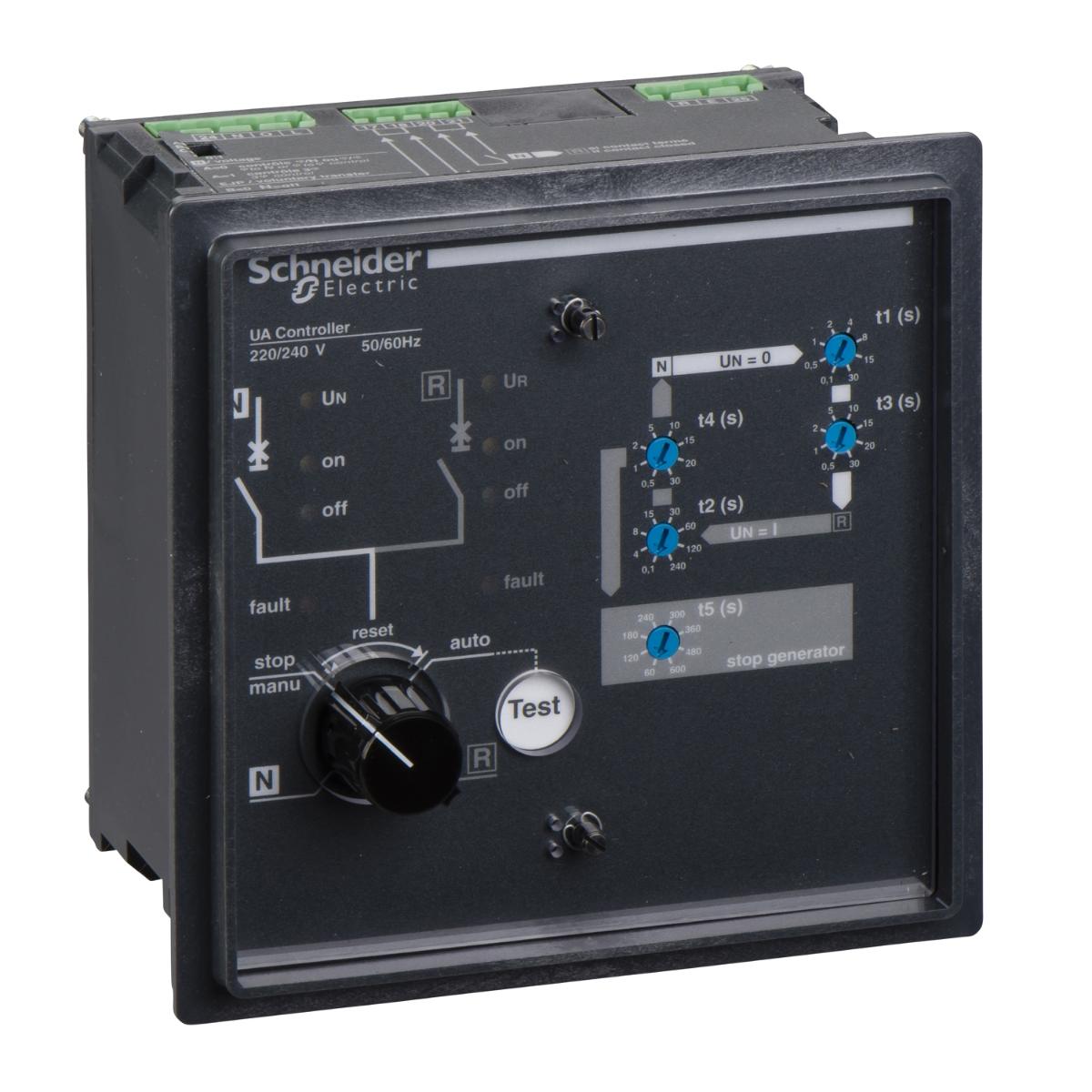

Schneider Electric 29378 UA controller, TransferPacT source changeover, automatic control system integrated, 220…240VAC at 50/60Hz

Code: SCH29378

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric 29378 UA controller, TransferPacT source changeover, automatic control system integrated, 220…240VAC at 50/60Hz

It is an automatic UA controller of source changeover system for Compact NSX, Compact NS and Masterpact devices. It allows the transfer from one source to another one, the engine generator set start-up and the load shedding. It may be installed directly on the Transferpact ACP control plate or mounted on the front panel of the switchboard. The control voltage is from 220VAC to 240VAC 50/60Hz.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

[Us] rated supply voltage	220...240 V AC at 50/60 Hz
Device short name	UA
Compatibility code	UA
Operating mode	automatic operation
IP degree of protection	IP40 front: conforming to EN 60529
Interlocked device	Compact NS630b...1600
Range	MasterPact NW
Standards	IEC 947-5-1
Genset exerciser	adjustable delayed shutdown
Brand Name	Schneider Electric
Input type	contacts customer voluntary order to transfer to source R
Test function	by pressing the test button on the front of the controller
Product name	UA
Selection modes	circuit breaker on N
[Ith] conventional free air thermal current	8 A
Supplier Code	29378
Output type	contacts customer: indication of operation in automatic or stop mode
Local signalling	off
IK degree of protection	front: IK07 conforming to EN 50102
Complementary function	setting of maximum startup time for the replacement source
[Ie] rated operational current	DC-13: 2 A 24 V
Product or component type	control unit
