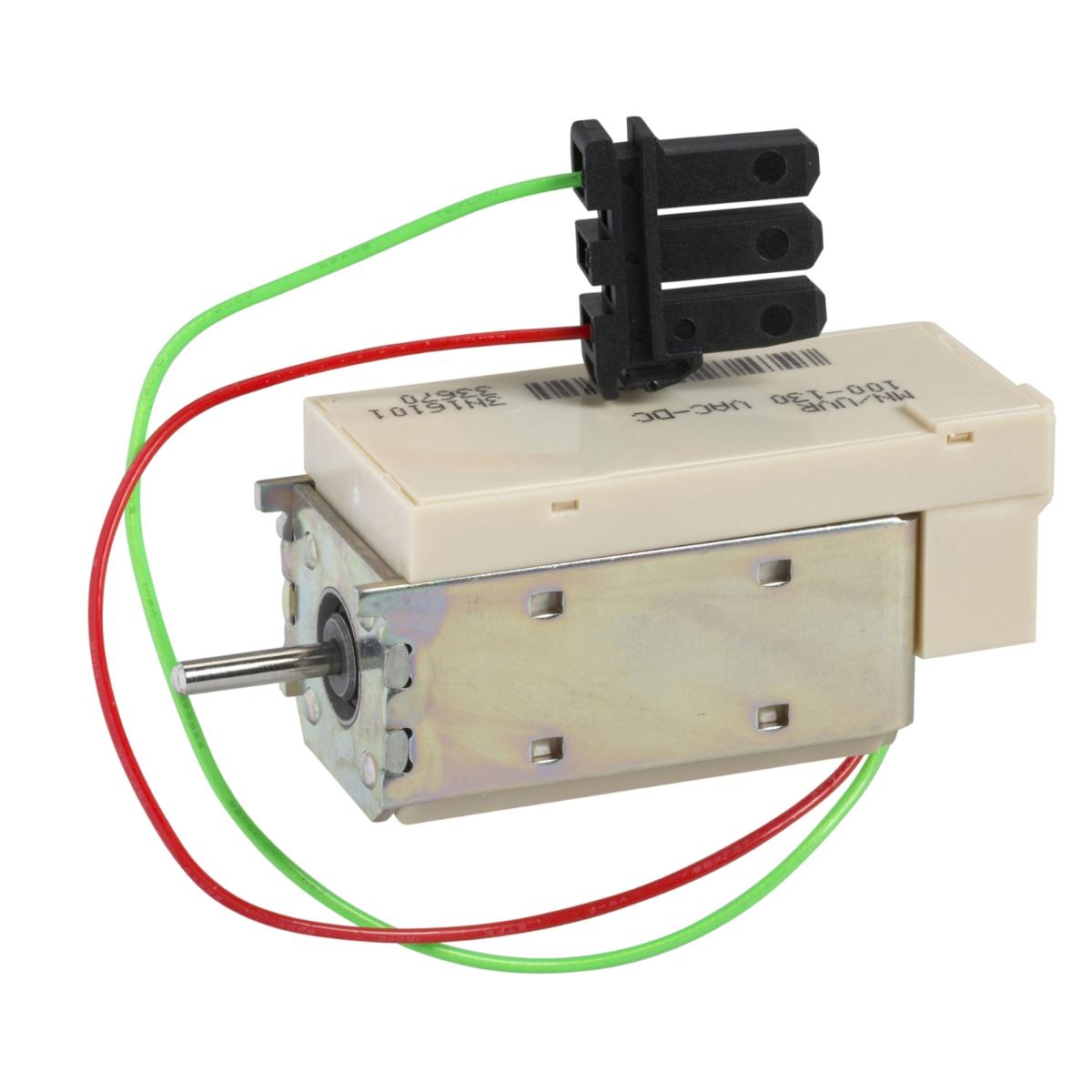

Schneider Electric 33659 Standard opening voltage release MX, ComPacT NS630b/NS3200, fixed, 24/30VDC, 24VAC, spare part
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Uc] control circuit voltage | 24...30 V DC |
| Device short name | MX |
| Voltage release type | instantaneous voltage release |
| Device application | control |
| Control type | standard |
| Range | Galaxy VL |
| Accessory / separate part category | spare part for ComPacT NS1600b...3200 new generation |
| Brand Name | Schneider Electric |
| Range compatibility | ComPact ComPact NS630b...1600 |
| Mounting mode | fixed |
| Threshold tripping voltage | 0.7...1.1 x Un opening |
| Response time | 50 ms +/- 10 % for Compact NS630b...1600 |
| Supplier Code | 33659 |
| Supply holding power | 4.5 VA |
| Product or component type | voltage release |
