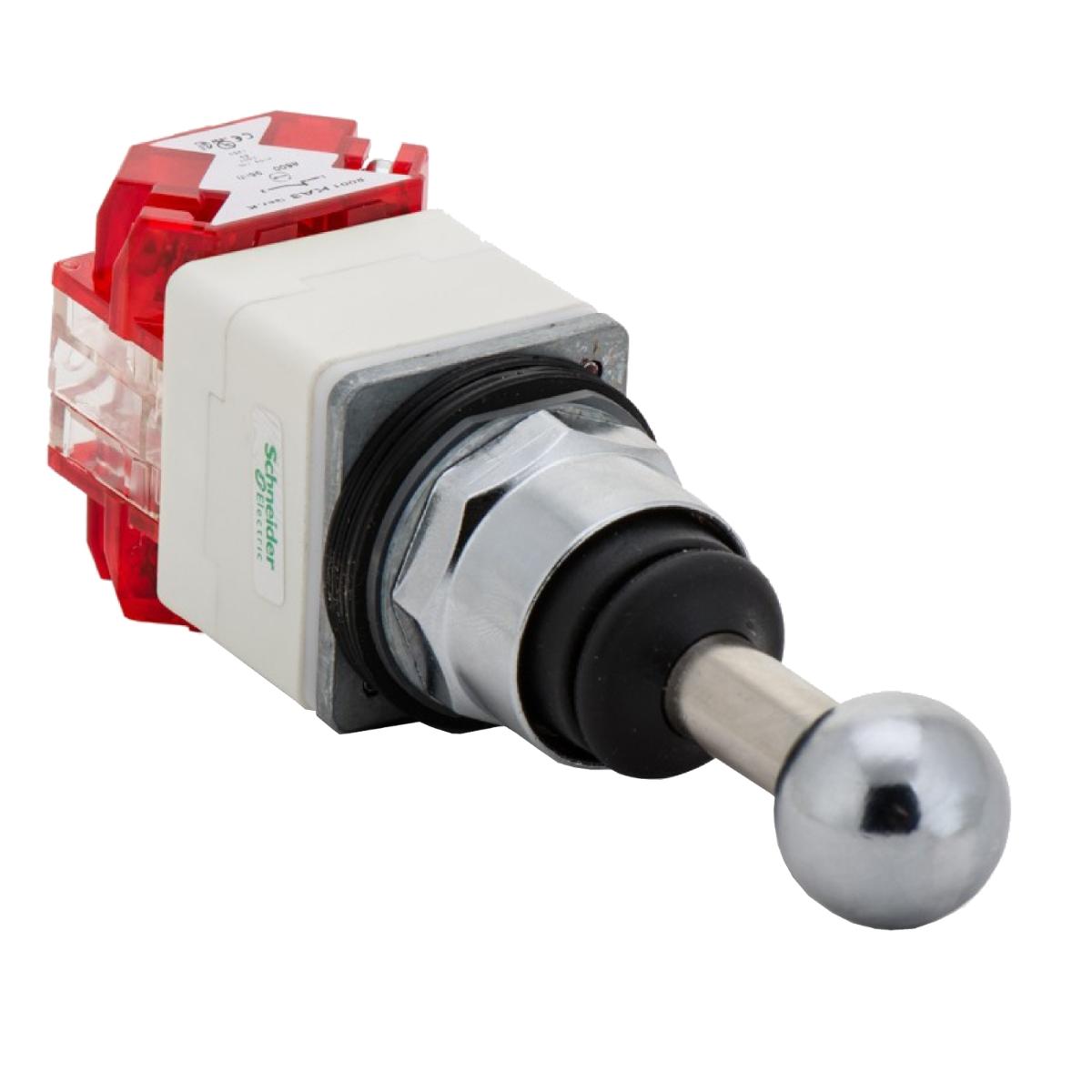

Schneider Electric 9001K73 Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, stay put
Code: SCH9001K73
Unit of measure:
EACH
Description
JOYSTICK 3 POSITION 30MM TYPE-K STAYPUT
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Size | 30mm |
| Operating position | any position |
| Ambient air temperature for operation | -25-70 °C |
| Supplier Code | 9001K73 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -40-70 °C |
| Mounting diameter | 30mm |
| Operator profile | 80mm long operating shaft |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type of operator | stay put |
| NEMA degree of protection | NEMA 3R |
| Device short name | 9001K |
| Compatibility code | 9001K |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Contacts type and composition | without contact block |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | Harmony 9001K |
| Standards | UL 508 |
| Shape of signaling unit head | octagonal |
| Overvoltage category | II conforming to IEC 61140 |
| Brand Name | Schneider Electric |
| Product certifications | UL 508 |
| Operator direction information | 2 directions |
| Device presentation | basic element |
| Protective treatment | TC |
| Bezel material | metal |
| Net weight | 0.372 kg |
| Product or component type | head for joystick controller |
