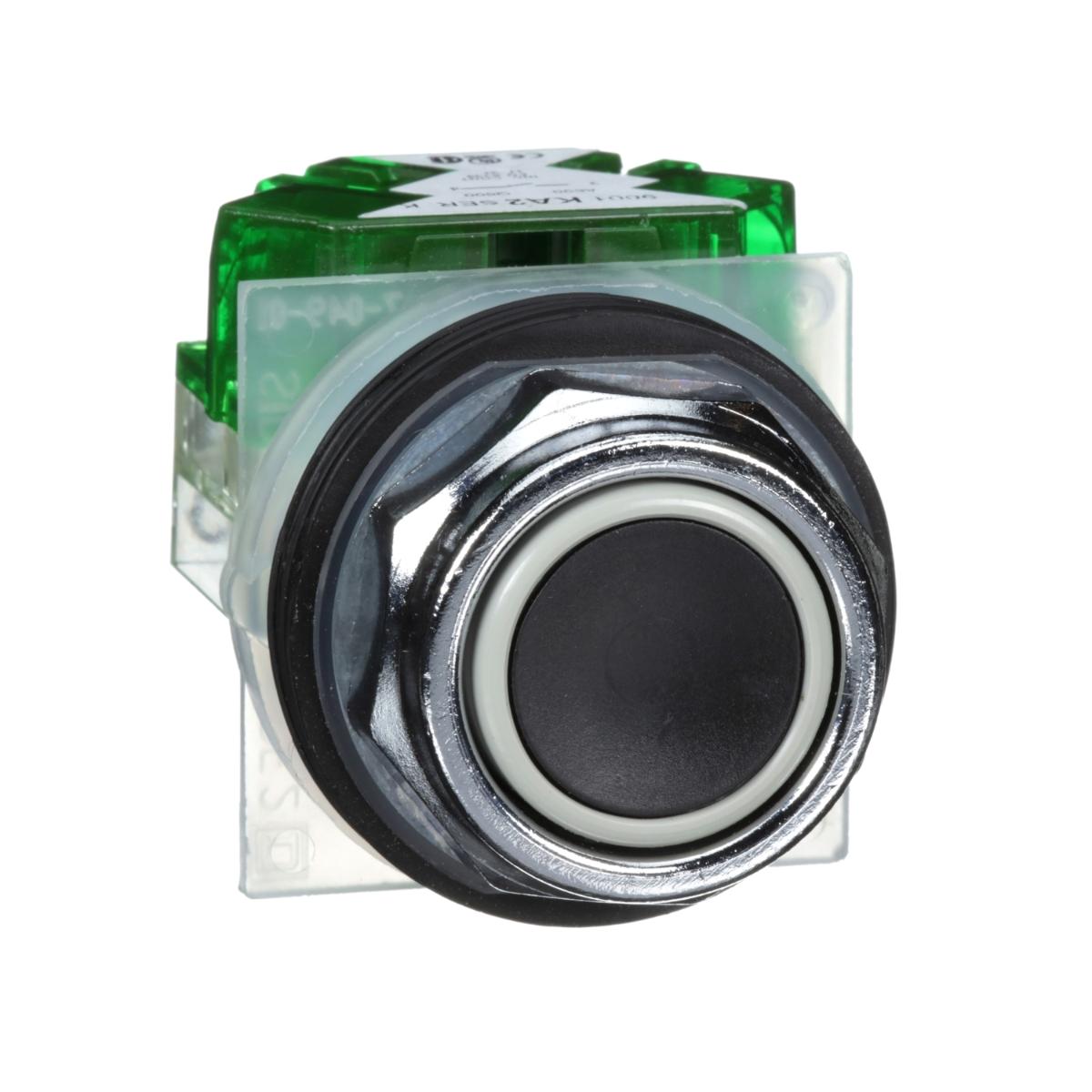

Schneider Electric 9001KR1BH5 Push button, Harmony 9001K, metal, flush, Black, 30mm, spring return, 1NO
Code: SCH9001KR1BH5
Unit of measure:
EACH
Description
PUSHBUTTON 600VAC 10A 30MM TYPE K
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Icm] rated short-circuit making capacity | 30 kA at 240 V AC-15- 7200 VA |
| Size | 30mm |
| Operating position | any position |
| Positive opening | without |
| Shape of screw head | cross slotted |
| CAD overall depth | 56mm |
| Cap/operator or lens colour | black |
| Ambient air temperature for operation | -25-70 °C |
| [Ith] conventional free air thermal current | 10 A |
| Supplier Code | 9001KR1BH5 |
| Mechanical durability | 5000000 cycles |
| Ambient air temperature for storage | -40-70 °C |
| Mounting diameter | 30mm |
| Operator profile | black flush- unmarked |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type of operator | spring return |
| NEMA degree of protection | NEMA 4 |
| Device short name | 9001K |
| Compatibility code | 9001K |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Contacts type and composition | 1 NO |
| Contacts material | silver alloy contacts |
| IP degree of protection | IP66 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Range | Harmony 9001K |
| Terminals description ISO n°1 | (13-14)NO |
| Standards | EN/IEC 60947-5-4 |
| Shape of signaling unit head | octagonal |
| Short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| Product certifications | UL 508 |
| Brand Name | Schneider Electric |
| Electrical shock protection class | class II conforming to IEC 61140 |
| CAD overall width | 48mm |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| Device presentation | complete product |
| Protective treatment | TC |
| Bezel material | metal |
| Rated breaking capacity | 0.55 kA at 125 V DC-13 |
| Tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| Net weight | 0.121 kg |
| Contact operation | standard |
| CAD overall height | 45mm |
| [Ie] rated operational current | 0.55 A at 125 V- DC-13- A600-Q600 conforming to NEMA |
| Operator additional information | metal guard |
| Product or component type | push-button |
| Connections - terminals | screw clamp terminals 1 x 0.22...2 x 1.5mm² conforming to IEC 60947-1 |
