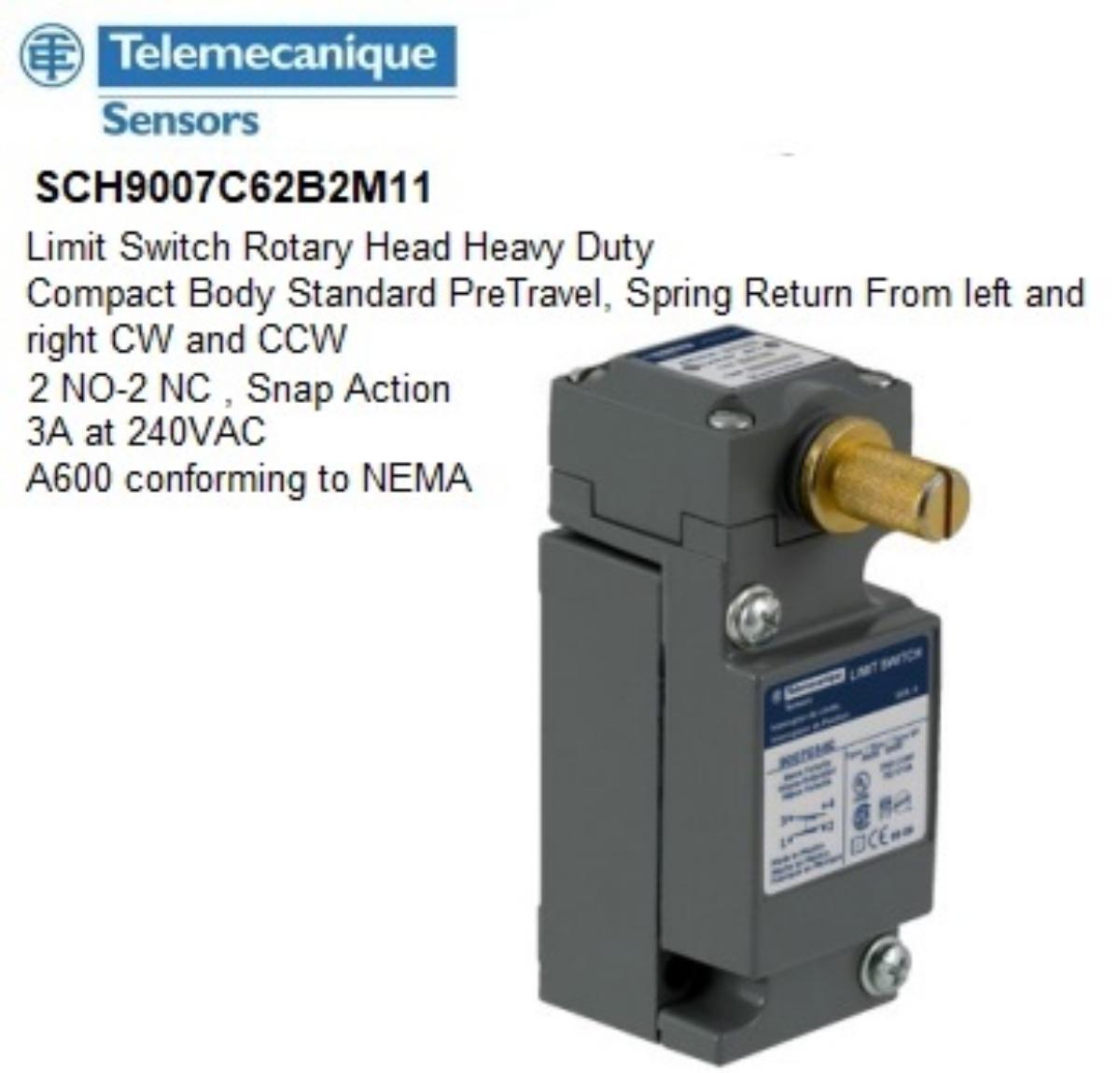

Telemecanique 9007C62B2M11 Limit Switch Rotary Head Heavy Duty Compact Body Standard PreTravel, Spring Return From left and right CW and CCW, 2 NO-2 NC, Snap action, 3A at 240VAC, A600 conforming to NEMA, 9007 Series
Code: SCH9007C62B2M11
Unit of measure:
EACH
Description
Limit Switch Rotary Head Heavy Duty Compact Body Standard PreTravel, Spring Return From left and right CW and CCW, 2 NO-2 NC, Snap action, 3A at 240VAC, A600 conforming to NEMA, 9007 Series
Features:
• The 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality
• 2 NO/NC, rotary head, CW+CCW, standard
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Temperature Rating | -28.8 to 85 deg C |
| Category | Limit Switch |
| Standard | UL, CSA. CE |
| Material | Zinc Alloy |
| Type Metal / Poly | Metal |
| Range | 9007 Type C series |
| Brand Name | Telemecanique |
| Item Name | Limit Switch |
| Type | Heavy Duty |
| Contact Configuration | 2 NO-2 NC |
| Supplier Code | 9007C62B2M11 |
| Voltage | 600 V |
| Body Only / Complete | Body only |
| Head Type | Rotary head - From left and right CW and CCW |
| Current | 10A |
