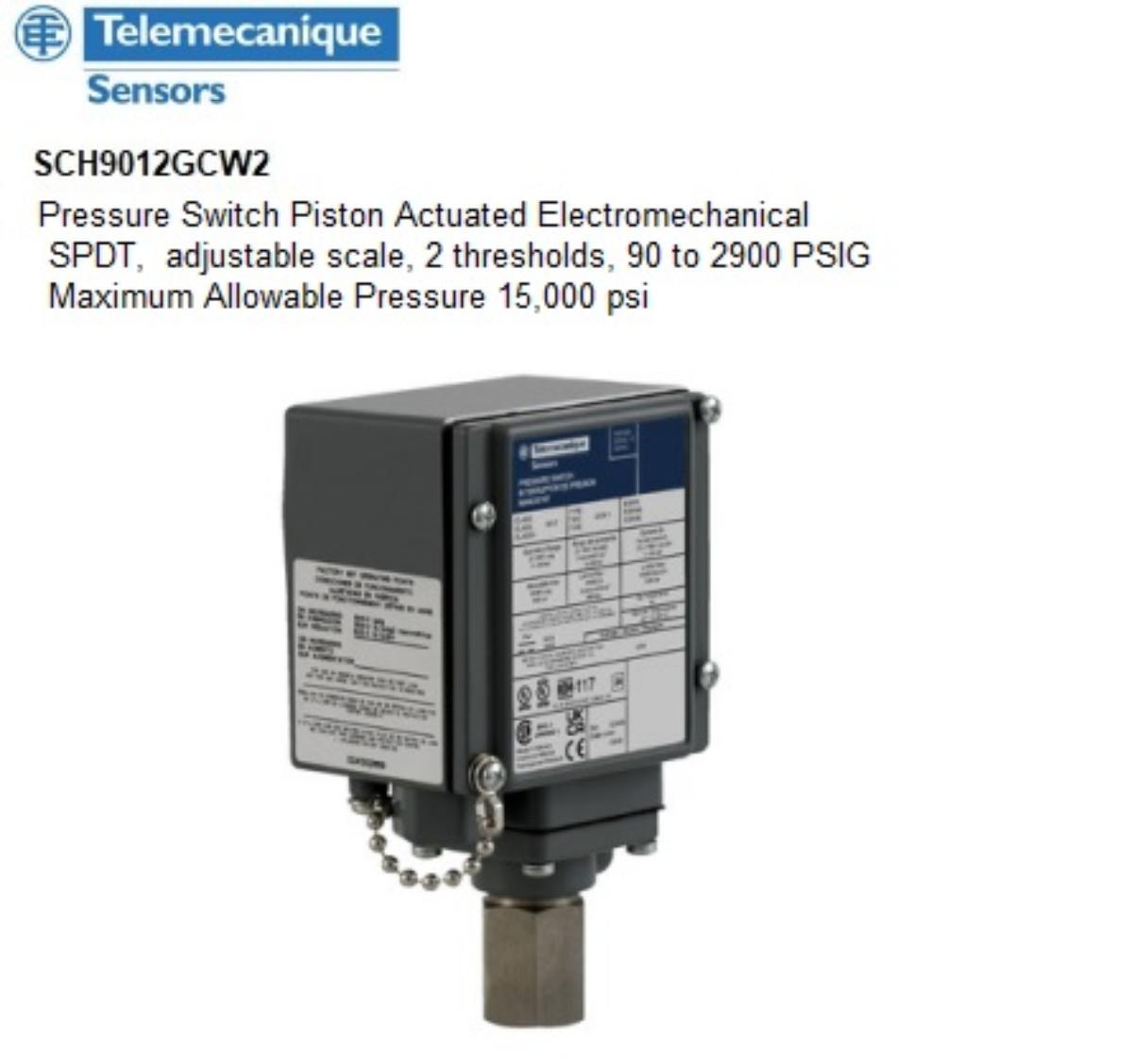

Pressure Switch Piston Actuated Electromechanical pneumatic systems hydraulic systems SPDT adjustable scale, 2 thresholds, 90 to 2900 PSIG, Maximum Allowable Pressure 15,000 psi, 0.25 inch 18 NPTF conforming to UL 508 Fluid connection type

Features:
• Type G machine tool switches are available with NEMA 4, 4X, and 13 (IEC IP66) enclosure ratings.
• Class 9012 single-stage pressure switches are control circuit rated devices used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control or monitor the system pressure
• Fluids Controlled : Air, water, hydraulic oils, gases, steam (depending on the model)
• Have outstanding repeatability and drift performance. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions.
• SPDT snap switches contain two double-break contact elements (1 N.O., 1 N.C.) that must be used on circuits of the same polarity
