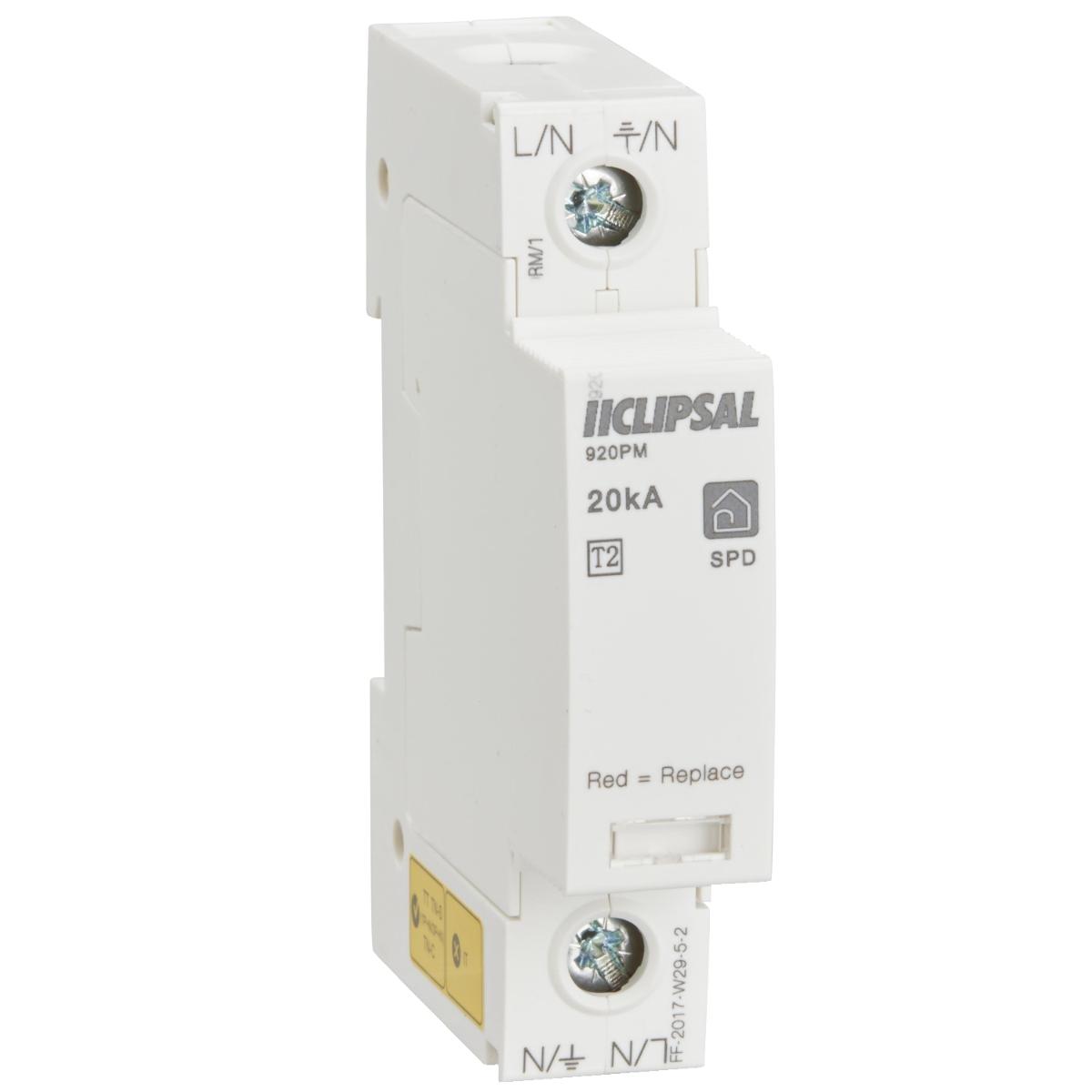

Clipsal 920RM/1 Surge Protection Device (SPD), Clipsal Resi MAX, 1P Imax 20 kA
Code: SCH920RM/1
Unit of measure:
EACH
Description
Schneider Electric 920RM/1 Resimax Surge Arrestor, 1 Pole, 20KA
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Remote signalling | without |
| Relative humidity | 5-95 % |
| Surge arrester class type | type 2 |
| Ambient air temperature for operation | -25-60 °C |
| Depth | 64mm |
| Mounting support | 35mm DIN rail |
| Mounting mode | clip-on |
| Supplier ref | 920RM/1 |
| Supplier Code | 920RM/1 |
| Height | 85mm |
| Poles description | 1P |
| Maximum residual current | 0.6 mA |
| Width | 18mm |
| Maximum [Up] voltage protection level | <1.2 kV |
| 9 mm pitches | 2 |
| Maximum discharge current | 20 kA |
| Wire stripping length | 14mm |
| Earthing system | TN-C |
| [Ue] rated operational voltage | 240 V +/- 10 % AC 50/60 Hz |
| IP degree of protection | IP20 |
| Range | Resi MAX |
| Standards | IEC 61643-11:2011 |
| Surge arrester type | electrical distribution network |
| Brand Name | Schneider Electric |
| [Uc] maximum continuous operating voltage | 350 V |
| Disconnector device type | fusible disconnect gG 125 A |
| Local signalling | white/red flag |
| Nominal discharge current | 5 kA |
| Product or component type | surge arrester |
| Connections - terminals | tunnel type terminal4-16mm² flexible with ferrule |
