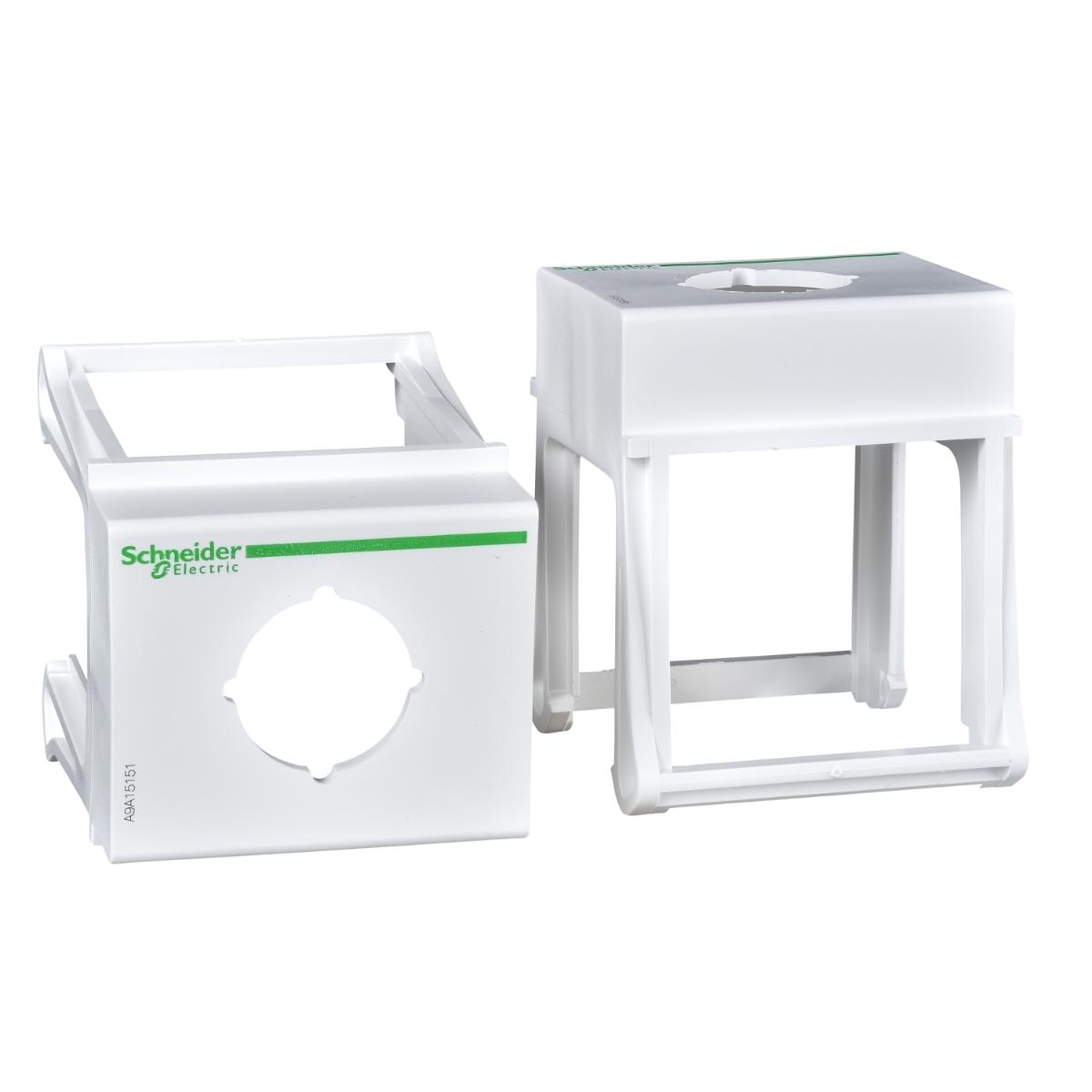

Schneider Electric A9A15151 DIN rail mounting base - Ø 22 mm units - for control and signalling unit

Code: SCHA9A15151

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric A9A15151 DIN rail mounting base - Ø 22 mm units - for control and signalling unit

This Acti9 button holder is for buttons, switches and indicators with metal or plastic flange of the SE XB4, XB5 type. It is dedicated to 22mm diameter button for control and signalling units. It could be used for control and indications auxiliaries as push-buttons, emergency stops, switches, light indicators. It is suitable for tertiary and industrial applications. It can be attached to a symmetrical 35mm rail, in modular cabinets or enclosures. The color is white (RAL9003). The drilling diameter is 22.3mm. It is a self-extinguishing material. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 60mm x (D) 66,7mm

Features:
• Allow to mount control or signalling unit on DIN rail

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Button and pilot light accessory type	mounting support on DIN rail
Colour tint	white
Compatibility code	XB4
Product compatibility	XB5
Colour code	RAL 9003
Fixing mode	by clips
Material	insulated material
Quantity per set	set of 1
Range	Harmony XB5
Control button component destination	command unit
Mounting support	35mm symmetrical rail
Brand Name	Schneider Electric
Supplier Code	A9A15151
Mounting location	in cabinet
Drilling diameter	22.3mm
Net weight	0.04 kg
Market segment	small commercial
Diameter	22mm
9 mm pitches	6
Internal depth	60mm
