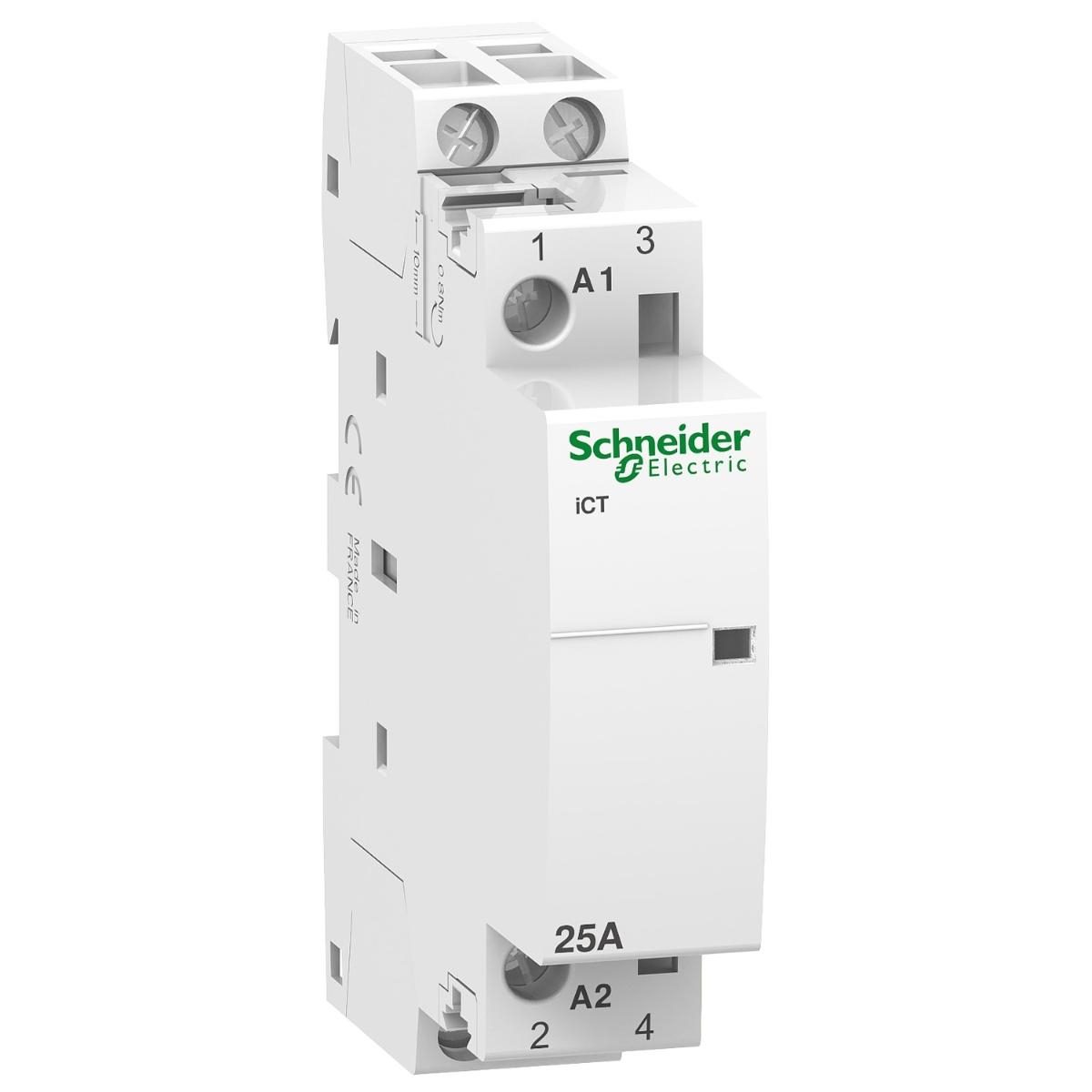

Schneider Electric A9C20132 iCT 25A 2NO 24V 50Hz contactor, White
Code: SCHA9C20132
Unit of measure:
EACH
Description
ICT 25A 2NO 24VAC 50HZ CONTACTOR
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for operation | -5-60 °C |
| Noise level | 30 dB |
| Mounting mode | clip-on |
| Switching frequency | 100 switching operations/day |
| Supplier Code | A9C20132 |
| Ambient air temperature for storage | -40-70 °C |
| Network frequency | 50 Hz |
| 9 mm pitches | 2 |
| Inrush power in VA | 15 VA |
| Network type | AC |
| Hold-in power consumption in VA | 3.8-3.8 VA |
| Control type | remote control |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529 |
| Range | Acti9 |
| Electrical durability | 30000 cycles IEC/EN 61095 50 Hz AC-7C |
| Local signalling | action indicator |
| Pollution degree | 2 |
| Tightening torque | power circuit: 0.8-0.8 N.m |
| Market segment | small commercial |
| [Ie] rated operational current | 8.5 A AC-7B |
| Connections - terminals | control circuit: tunnel type terminals2 cable(s) 1.5-2.5mm² flexible |
| Control signal type | maintained |
| Depth | 68.5mm |
| Colour | White |
| Mounting support | 35mm symmetrical DIN rail |
| Pole contact composition | 2 NO |
| Power losses per pole | 1.4 W |
| Mechanical durability | 1000000 cycles |
| Height | 81mm |
| Poles description | 2P |
| Width | 18mm |
| Operating altitude | 2000 m |
| [Uc] control circuit voltage | 24 V AC 50 Hz |
| Tropicalisation | 2 conforming to IEC 1095 |
| Device short name | iCT |
| Compatibility code | iCT |
| Product compatibility | iACTc |
| Device application | motor-heating-lighting |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Total power losses | 2.8 W |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| Standards | IEC/EN 61095 |
| Brand Name | Schneider Electric |
| Heat dissipation | 1.3-1.3 W at 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Product name | Acti9 iCT |
| Maximum power | 1.3 W at 250 V AC |
| Product or component type | contactor |
