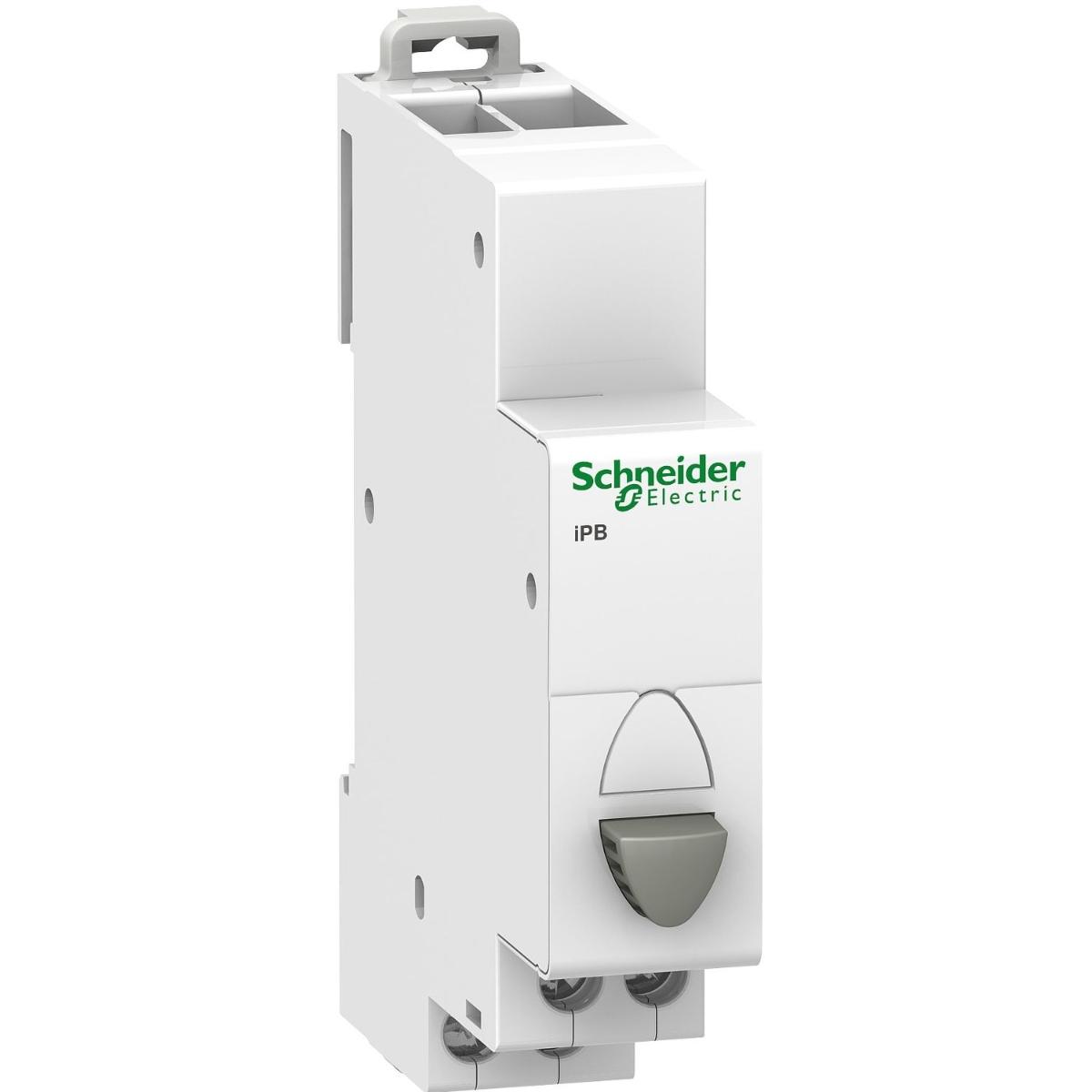

Schneider Electric A9E18033 Single push button, Acti9, 1NO-1NC Grey, White
Code: SCHA9E18033
Unit of measure:
EACH
Description
Schneider Electric Acti 9 iPB Acti9 iPB 1NO-1NC single push button grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 95-95 % at 55-55 °C |
| Standard | IEC 60947-4-1 |
| Depth | 71.5mm |
| Ambient air temperature for operation | -35-70 °C |
| Colour | White |
| Mounting support | 35mm symmetrical DIN rail |
| Mounting mode | fixed |
| Comb busbar and distribution block compatibility | upside: Librio |
| Connection Type | Tunnel Terminal |
| Voltage | 250V |
| Supplier Code | A9E18033 |
| Ambient air temperature for storage | -40-80 °C |
| Height | 82mm |
| Width | 18mm |
| 9 mm pitches | 2 |
| Wire stripping length | 9mm |
| Warranty | 18 Month |
| Tropicalisation | 2 |
| Device short name | iPB |
| Compatibility code | iPB |
| Contacts type and composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 250 V AC |
| Control type | 1 push-button grey |
| Range | Acti9 |
| Standards | IEC 60669-1 |
| Brand Name | Schneider Electric |
| Item Name | Push Button |
| Electrical durability | AC-22: 30000 cycles AC 50/60 Hz |
| Contact Configuration | 1 NO +1 NC |
| Product name | Acti9 iPB |
| Tightening torque | 1-1 N.m |
| Market segment | residential |
| Current | 20A |
| [Ie] rated operational current | 20 A |
| Product or component type | push-button |
| Connections - terminals | staggered tunnel terminal1 cable(s) 0.5-0.5mm² flexible with ferrule |
