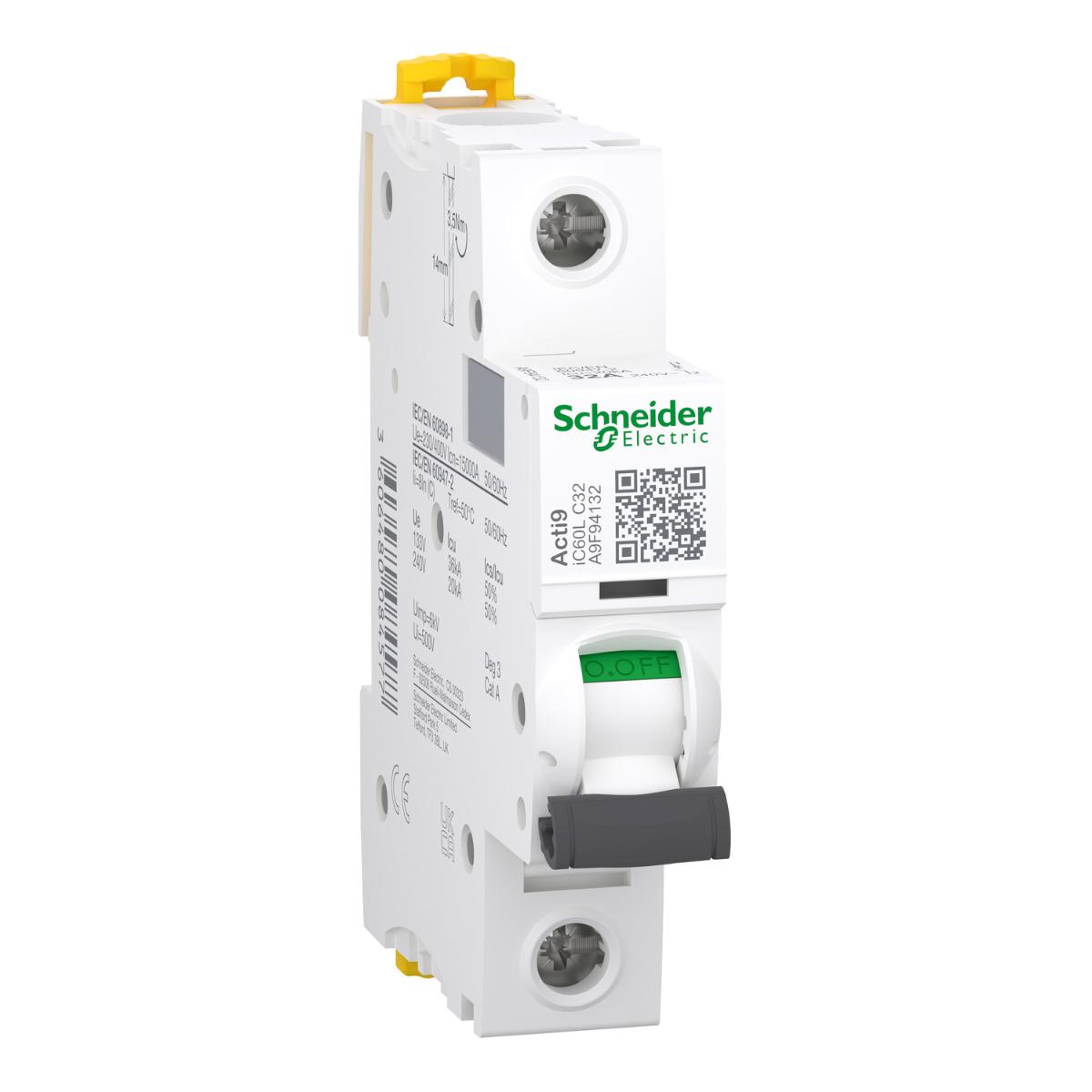

Schneider Electric A9F94132 Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 32A, C curve, 15000A (IEC/EN 60898-1), 20kA (IEC/EN 60947-2), White
Code: SCHA9F94132
Unit of measure:
EACH
Description
ACTI9 IC60L 1P C 32A MCB
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 95-95 % at 55-55 °C |
| Number of protected poles | 1 |
| Ambient air temperature for operation | -35-70 °C |
| [Ics] rated service breaking capacity | 25 kA 100 % conforming to IEC 60947-2 - 12...60 V DC |
| Earth-leakage protection | without |
| Mounting mode | fixed |
| Breaking capacity code | L |
| Comb busbar and distribution block compatibility | top or bottom: YES |
| Supplier Code | A9F94132 |
| Ambient air temperature for storage | -40-85 °C |
| Network frequency | 50/60 Hz |
| 9 mm pitches | 2 |
| Network type | AC |
| Control type | toggle |
| IP degree of protection | IP20 conforming to EN 60529 |
| Range | Acti9 |
| Overvoltage category | IV |
| Curve code | C |
| Electrical durability | 10000 cycles |
| Local signalling | trip indicator |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Tightening torque | 3.5-3.5 N.m top or bottom |
| Market segment | small commercial |
| Connections - terminals | single terminal (top or bottom) 1-25mm² flexible |
| Contact position indicator | yes |
| Suitability for isolation | yes conforming to IEC 60898-1 |
| [In] rated current | 32 A |
| Depth | 78.5mm |
| Connection pitch | 18mm between devices |
| Colour | White |
| Mounting support | DIN rail |
| Power losses per pole | 2.8 W |
| Mechanical durability | 20000 cycles |
| Breaking capacity | 20 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 |
| Height | 85mm |
| Limitation class | 3 conforming to IEC 60898-1 |
| Poles description | 1P |
| Width | 18mm |
| Operating altitude | 0...2000 m |
| Wire stripping length | 14mm for top or bottom connection |
| Device short name | iC60L |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Compatibility code | iC60 |
| Trip unit technology | thermal-magnetic |
| Device application | distribution |
| [Ue] rated operational voltage | 12...60 V AC 50/60 Hz |
| Total power losses | 2.8 W |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Standards | IEC 60898-1 |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Product name | Acti9 iC60 |
| Magnetic tripping limit | 8 x In +/- 20 % |
| Utilisation category | category A conforming to IEC 60947-2 |
| Net weight | 0.215 kg |
| Product or component type | miniature circuit-breaker |
