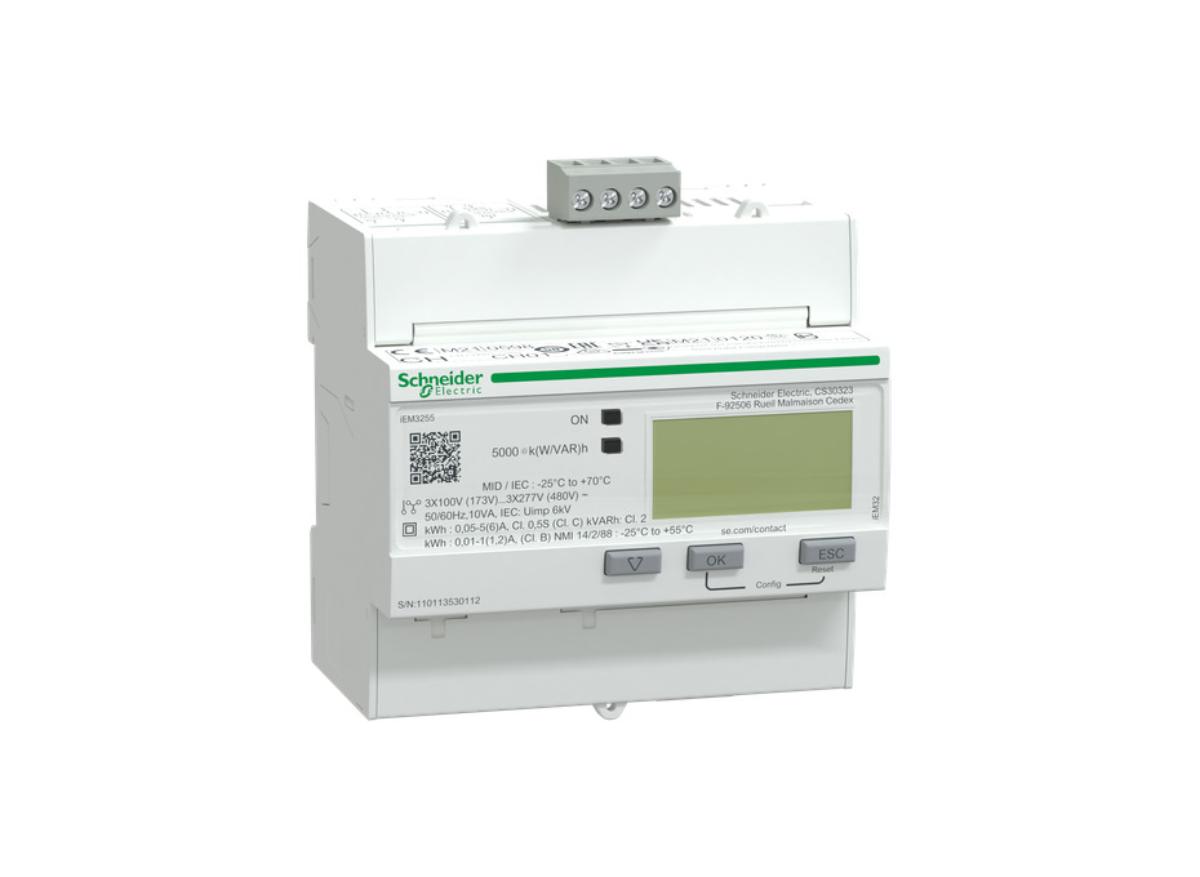

Schneider Electric A9MEM3255-NMI IEM3255 energy meter, Acti9, CT - Modbus - 1 digital I - 1 digital O - multi-tariff - NMI, White
Code: SCHA9MEM3255NMI
Unit of measure:
EACH
Description
TRIPHASE KWH METER CT MODBUS IO
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 50-50 °C |
| Accuracy class | class 0.5S active energy conforming to IEC 61557-12 |
| [In] rated current | 1 A |
| Ambient air temperature for operation | -25-70 °C - IEC |
| Depth | 69mm |
| Colour | White |
| Mounting support | DIN rail |
| Communication port support | screw terminal block: RS485 |
| Mounting mode | clip-on |
| Supplier ref | A9MEM3255-NMI |
| Type of measurement | current |
| Output voltage | 5...40 V DC@50 mA |
| Number of outputs | 1 digital (static) |
| Rated voltage | 173-480 V |
| Supplier Code | A9MEM3255-NMI |
| Ambient air temperature for storage | -40-85 °C |
| Height | 95mm |
| Measurement current | 1-32767000 mA |
| Poles description | 1P + N |
| Network frequency | 50 Hz |
| Number of inputs | 1 digital 0...5 V/11...40 V 24 V DC |
| Width | 90mm |
| Operating altitude | < 2000 m |
| 9 mm pitches | 10 |
| Display type | LCD display |
| Device short name | iEM3255 |
| Information displayed | tariff (4) |
| Analogue input type | current transformer 1 A or 5 A |
| Technology type | electronic |
| Device application | sub billing |
| Communication port protocol | Modbus RTU at 9.6- 19.2 and 38.4 kbauds even/odd or none- insulation 4000 V |
| IP degree of protection | IP20 body: conforming to IEC 60529 |
| Range | Acti9 |
| Maximum value measured | 99999999 MWh |
| Standards | IEC 61010 |
| Overvoltage category | III |
| Product certifications | ACMA |
| Brand Name | Schneider Electric |
| Product name | Acti9 iEM3000 |
| Sampling rate | 32 samples/cycle |
| Local signalling | alarm: overload |
| Pollution degree | 2 |
| Metering type | active- reactive- apparent energy (signed- four quadrant) |
| Market segment | healthcare cost management: cost allocation |
| Product or component type | energy meter |
| Connections - terminals | voltage circuit: screw terminals 2.5-2.5mm² cable(s) |
