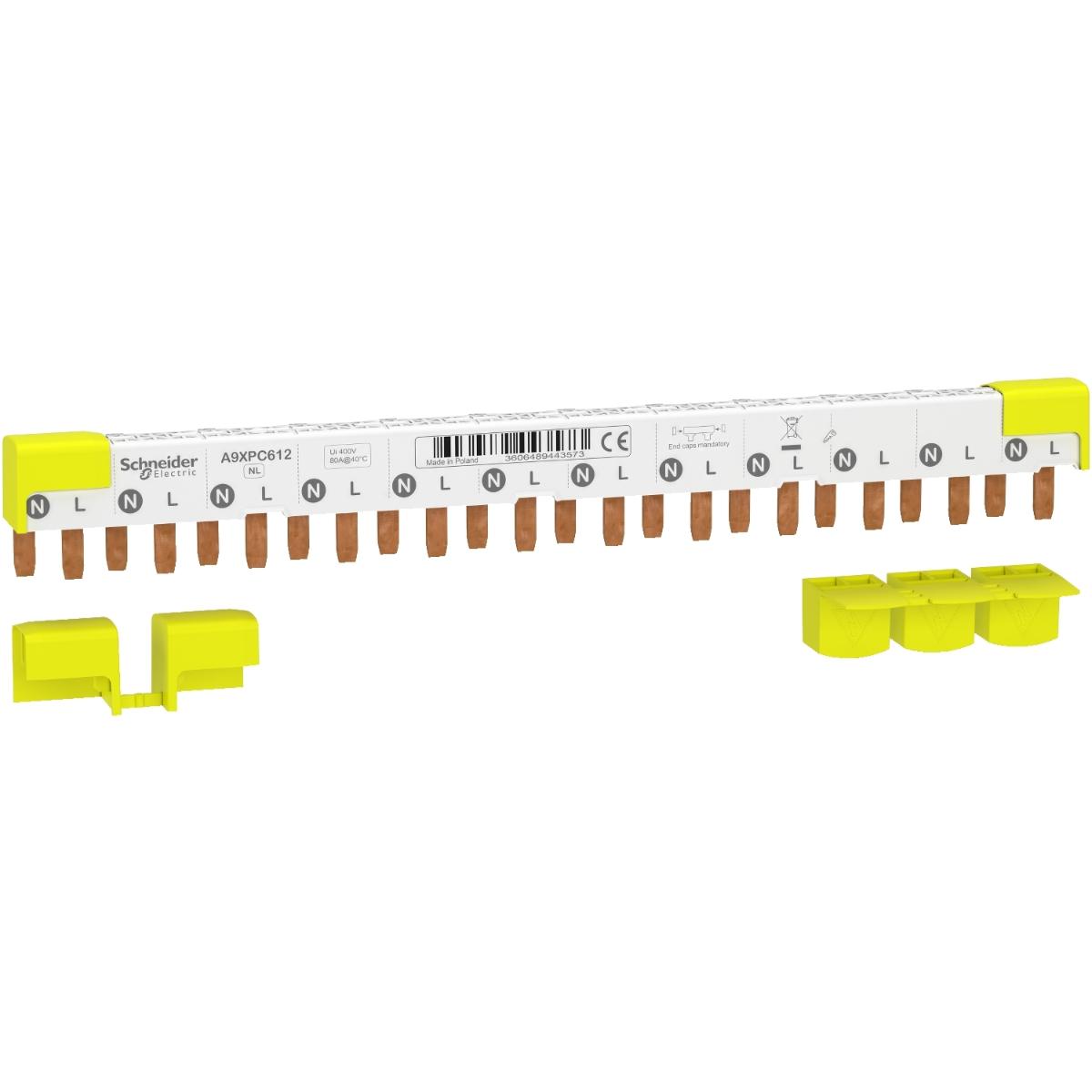

Schneider Electric A9XPC612 comb busbar, Acti9, 1L+N, 9 mm pitch, 12 modules, 80 A, White
This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is a set of 1 product. It is suitable for 12 devices with 1P+N pole and without associated auxiliaries. The length is 218mm. The total number of modules of 18mm is 12. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.
Features:
• Compatible with the breaking capacity of Schneider Electric circuit breakers
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Total number of 18 mm modules | 12 |
| Distribution type | N L |
| Number of ways | 12 ways N + 1 L |
| Connector type | tooth |
| Depth | 27mm |
| Connection pitch | 9mm between phase and neutral |
| Colour | White |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Mounting mode | horizontal |
| Distance between way | 18mm |
| Supplier Code | A9XPC612 |
| Height | 32mm |
| Width | 218mm |
| 9 mm pitches | 24 |
| Insulation | insulated |
| Poles configuration for 1 way | 1 x 1P + N |
| [Ue] rated operational voltage | 230 V AC Ph/N |
| Marking | N L |
| [Ui] rated insulation voltage | 400 V AC conforming to IEC 61439-1 |
| Lines description | 1L + N |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Range | Acti9 |
| Standards | EN/IEC 61439-1 |
| Accessory / separate part category | connection accessory |
| Brand Name | Schneider Electric |
| Range compatibility | Acti9 Acti9 iC40 |
| Device presentation | cuttable |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Provided equipment | tooth covers |
| Pollution degree | 3 conforming to EN/IEC 60439-1 |
| Mounting location | top on tunnel type terminals |
| Net weight | 93 g |
| [Ie] rated operational current | 80 A at 40 °C |
| Product or component type | comb busbar |
