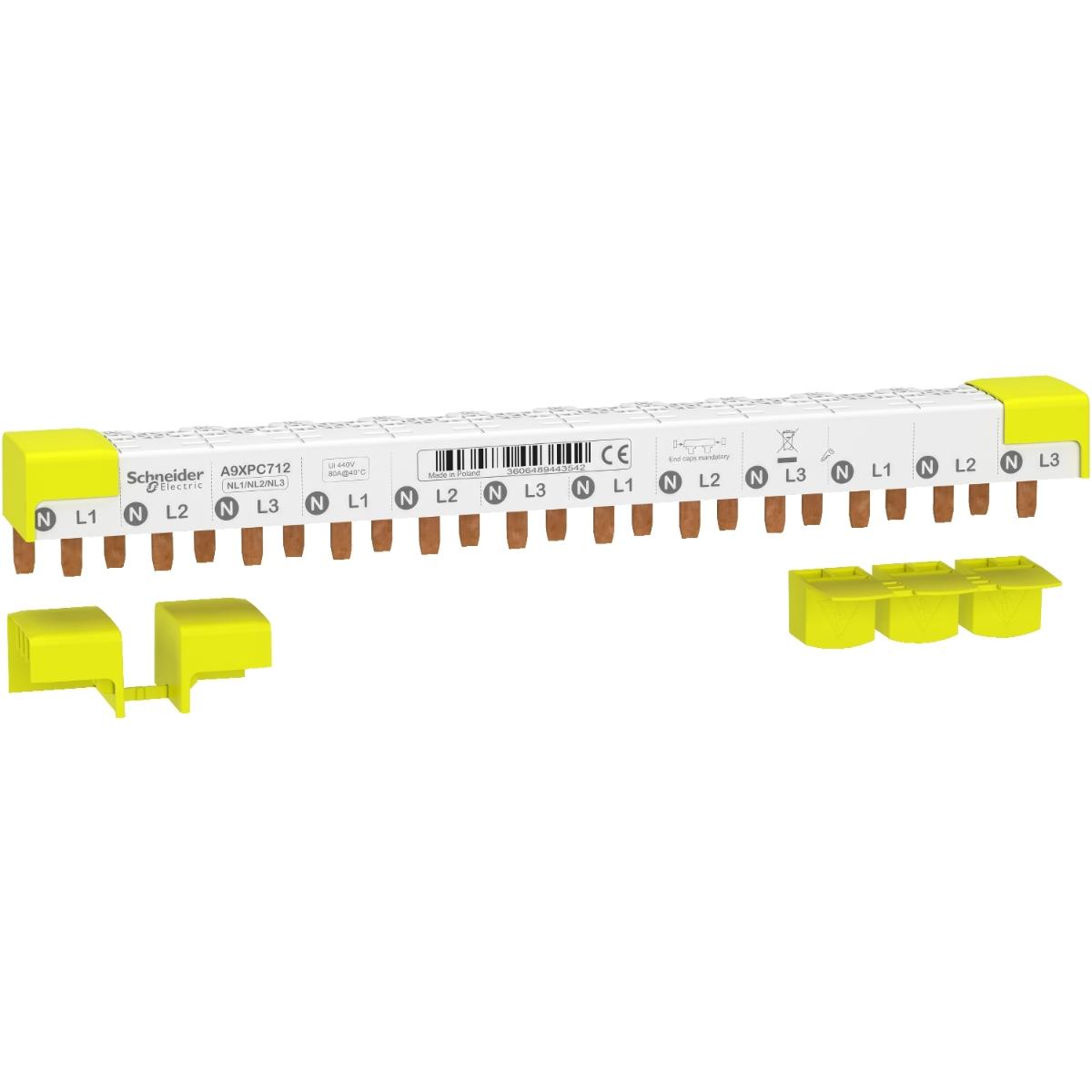

Schneider Electric A9XPC712 comb busbar, Acti9, 3P+N balanced, 9 mm pitch, 12 modules, 80 A, White
Code: SCHA9XPC712
Unit of measure:
EACH
Description
ACTI9 COMB BUSBAR IC40 3PN 12 MOD. 18MM
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Total number of 18 mm modules | 12 |
| Distribution type | N L1 N L2 N L3 |
| Number of ways | 4 ways N + 3 L (balanced) |
| Connector type | tooth |
| Connection pitch | 18mm between phases |
| Depth | 28mm |
| Colour | White |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Mounting mode | horizontal |
| Distance between way | 54mm |
| Supplier Code | A9XPC712 |
| Height | 32mm |
| Width | 218mm |
| 9 mm pitches | 24 |
| Insulation | insulated |
| Poles configuration for 1 way | 3 x 1P + N |
| [Ue] rated operational voltage | 400 V AC Ph/Ph |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Marking | N L1 N L2 N L3 |
| [Ui] rated insulation voltage | 440 V AC conforming to IEC 61439-1 |
| Lines description | 3L + N |
| Range | Acti9 |
| Standards | EN/IEC 61439-1 |
| Accessory / separate part category | connection accessory |
| Brand Name | Schneider Electric |
| Range compatibility | Multi9 Multi9 N40 |
| Device presentation | cuttable |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Provided equipment | tooth covers |
| Pollution degree | 3 conforming to EN/IEC 60439-1 |
| Mounting location | top on tunnel type terminals |
| Net weight | 150 g |
| [Ie] rated operational current | 80 A at 40 °C |
| Product or component type | comb busbar |
