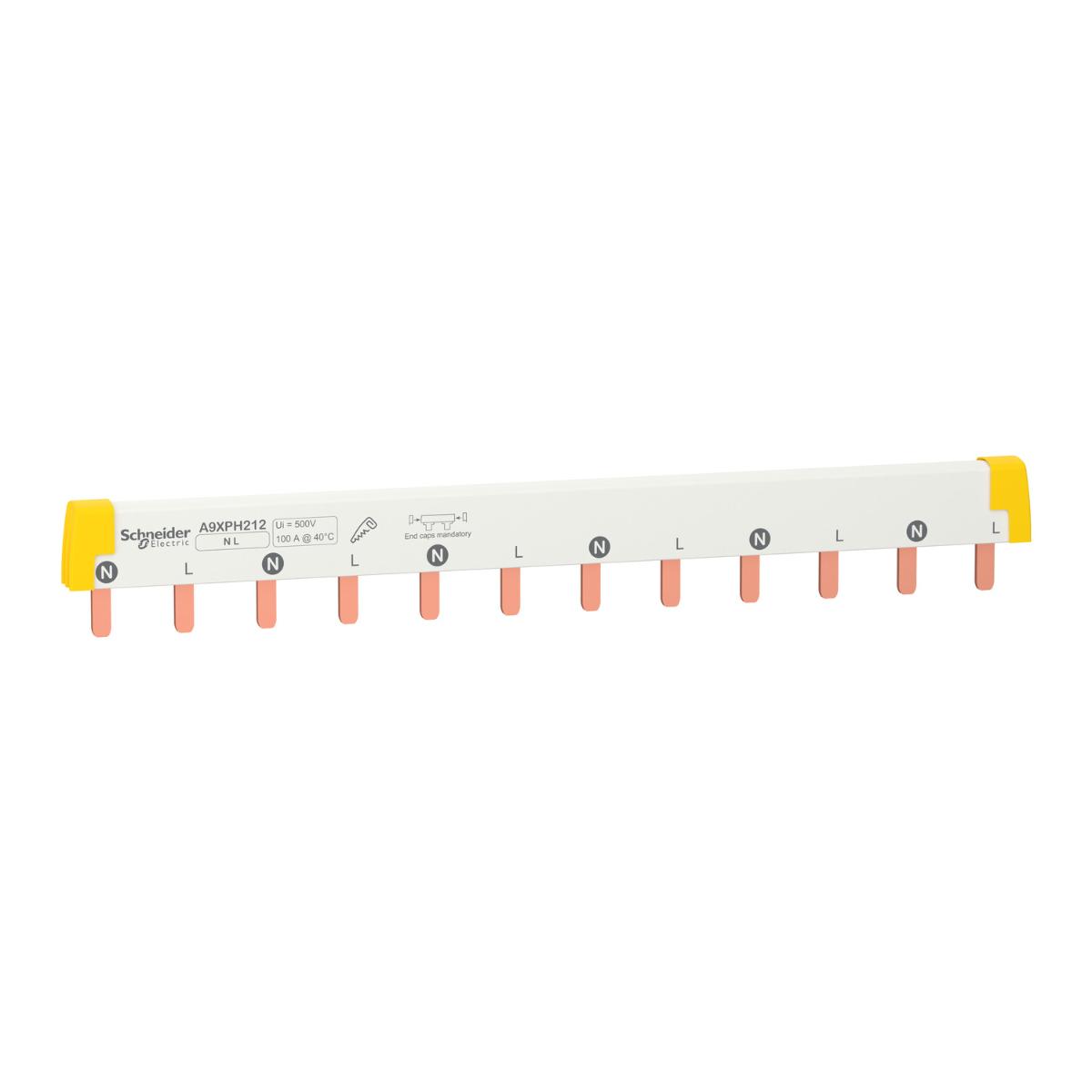

Schneider Electric A9XPH212 Comb Busbar, Acti9, 1L+N, 18 mm pitch, 12 modules, 100 A, White
Code: SCHA9XPH212
Unit of measure:
EACH
Description
COMB BUSBAR 2P 100A 12MOD
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Total number of 18 mm modules | 12 |
| Distribution type | N L |
| Number of ways | 6 ways N + 1 L |
| Connector type | tooth |
| Connection pitch | 18mm |
| Colour | White |
| Fire resistance | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Mounting mode | horizontal |
| Supplier ref | A9XPH212 |
| Distance between way | 36mm |
| Supplier Code | A9XPH212 |
| Width | 220mm |
| 9 mm pitches | 24 |
| Insulation | insulated |
| Poles configuration for 1 way | 1 x 2P |
| [Ue] rated operational voltage | 415 V AC |
| Marking | N L |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| Lines description | 1L + N |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Range | Acti9 |
| Standards | EN/IEC 61439-1 |
| Accessory / separate part category | connection accessory |
| Brand Name | Schneider Electric |
| Range compatibility | Acti9 Acti9 iID |
| Device presentation | cuttable |
| Pollution degree | 3 conforming to IEC 60947-7-1 |
| Mounting location | top or bottom on double terminal |
| [Ie] rated operational current | 100 A at 40 °C |
| Product or component type | comb busbar |
