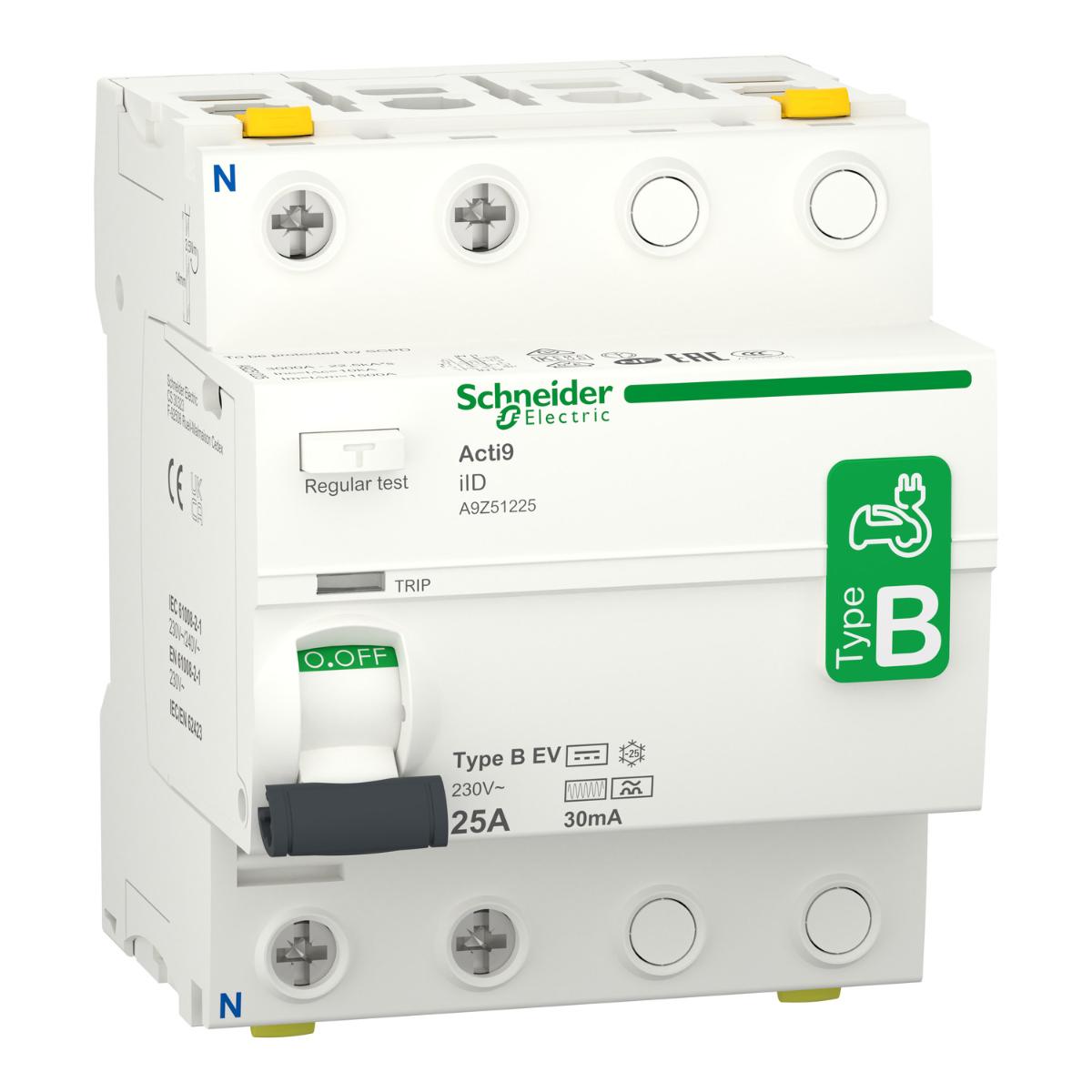

Schneider Electric A9Z51225 Acti9 iID - Residual Current Circuit Breaker - 2P - 25A - 30mA - B type, White
Code: SCHA9Z51225
Unit of measure:
EACH
Description
ACTI9 IID 2P 25A 30MA B EV RCCB
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Electromagnetic compatibility | 8/20 µs impulse withstand- 3 kA conforming to EN/IEC 61008-1 |
| Residual current tripping technology | voltage independent |
| Ambient air temperature for operation | -25-60 °C |
| Mounting mode | clip-on |
| Comb busbar and distribution block compatibility | top or bottom: tooth |
| Supplier Code | A9Z51225 |
| Earth-leakage sensitivity | 30 mA |
| Ambient air temperature for storage | -40-85 °C |
| Network frequency | 50 Hz |
| Neutral position | left |
| 9 mm pitches | 8 |
| Network type | AC |
| Control type | toggle |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529 |
| Range | Acti9 |
| Overvoltage category | IV |
| Electrical durability | 15000 cycles |
| Local signalling | ON/OFF indication |
| Pollution degree | 3 |
| Tightening torque | 3.5-3.5 N.m top or bottom |
| Earth-leakage protection class | type B-EV (Electric Vehicle) |
| Connections - terminals | double terminal back 1-16mm² flexible |
| Contact position indicator | yes |
| [In] rated current | 25 A |
| Earth-leakage protection time delay | instantaneous |
| Depth | 79mm |
| Connection pitch | 18mm |
| Colour | White |
| Mounting support | DIN rail |
| Power losses per pole | 0.53 W |
| Rated breaking and making capacity | Im 1500 A |
| Mechanical durability | 20000 cycles |
| Rated conditional short-circuit current | 10 kA |
| Height | 88mm |
| Poles description | 2P |
| Width | 72mm |
| Operating altitude | 0...2000 m |
| Wire stripping length | 14mm for top or bottom connection |
| Quality labels | IMQ |
| Device short name | iID |
| Device application | Electrical Vehicle charger |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Device location in system | group incomer |
| Total power losses | 1.06 W |
| [Ui] rated insulation voltage | 250 V |
| Standards | EN 61008-2-1 |
| Product certifications | CCC |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Product name | Acti9 iID |
| Locking options description | padlocking device |
| Net weight | 350 g |
| IK degree of protection | IK05 |
| Product or component type | residual current circuit breaker (RCCB) |
