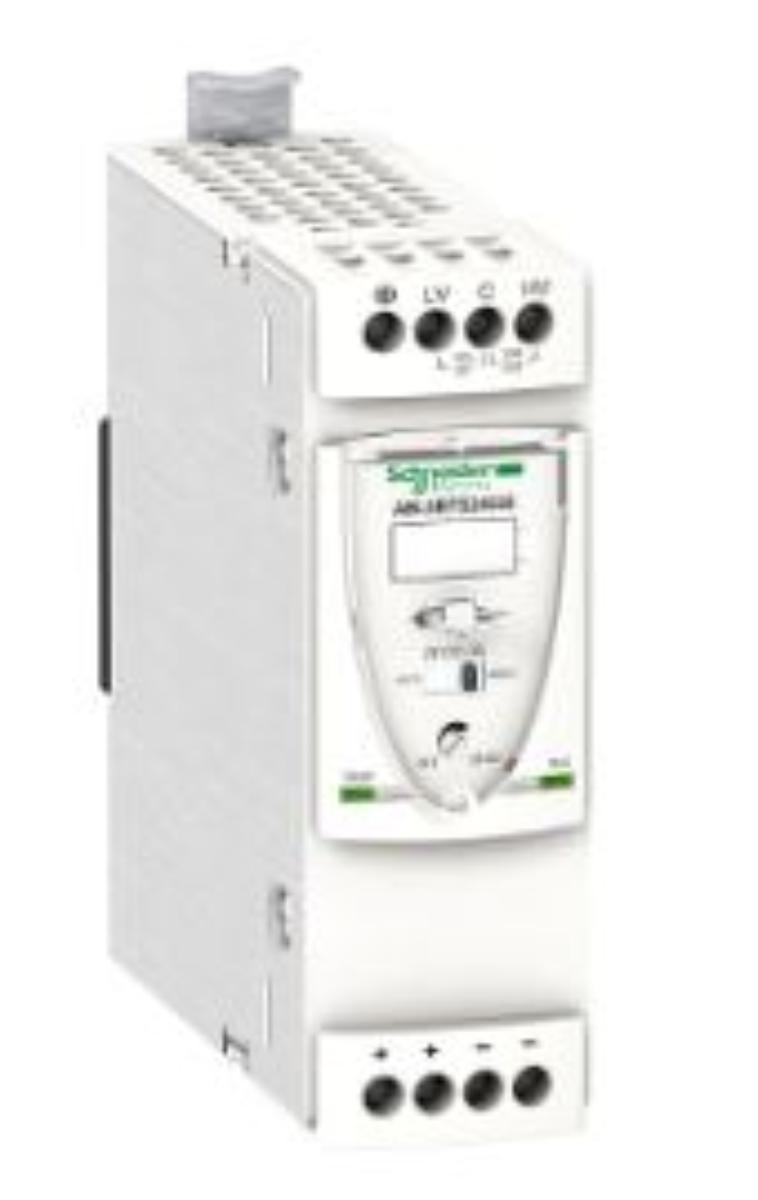

Schneider Electric ABL8RPS24030 Regulated Switch Power Supply, Phaseo ABL7 ABL8, 1 or 2 phase, 100..500V, 24V, 3A
Code: SCHABL8RPS24030
Unit of measure:
EACH
Description
UNIV POWER SUP 1P 24V 3A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Rated power in W | 72 W |
| Output voltage limits | 24...28.8 V adjustable |
| Input voltage | 200...500 V AC phase to phase- terminal(s): L1-L2 |
| Operating position | vertical |
| Supply | SELV conforming to IEC 60364-4-41 |
| Depth | 125mm |
| Ambient air temperature for operation | -25-50 °C without derating mounting position A < 2000 m |
| Anti-harmonic filter | low frequency harmonic currents |
| Mounting support | 35 x 7.5mm symmetrical DIN rail |
| Output voltage | 24 V DC |
| Efficiency | 87 % |
| Supplier Code | ABL8RPS24030 |
| Environmental characteristic | safety conforming to EN/IEC 61204-3 |
| Height | 125mm |
| Power factor | 0.59 at 120 V AC |
| Power dissipation in W | 7.8 W |
| Output protection type | thermal- protection technology: automatic reset |
| Width | 45mm |
| Operating altitude | 2000 m |
| Status LED | 1 LED (green- red and orange) output current |
| Dielectric strength | 4000 V with between input and output |
| Compatibility code | ABL8R |
| Input voltage limits | 85...132 V AC |
| Power supply type | regulated switch mode |
| Marking | CE |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Range | Modicon Power Supply |
| Output coupling | parallel |
| Standards | EN/IEC 62368-1 |
| Power supply output current | 3 A |
| Product certifications | RCM |
| Brand Name | Schneider Electric |
| Provided equipment | power factor correction filter conforming to IEC 61000-3-2 |
| Net weight | 0.3 kg |
| Inrush current | 30 A |
| Product or component type | power supply |
| Connections - terminals | screw type terminals: 1 x 0.5...1 x 4mm²- (AWG 22...AWG 12) for input ground connection |
