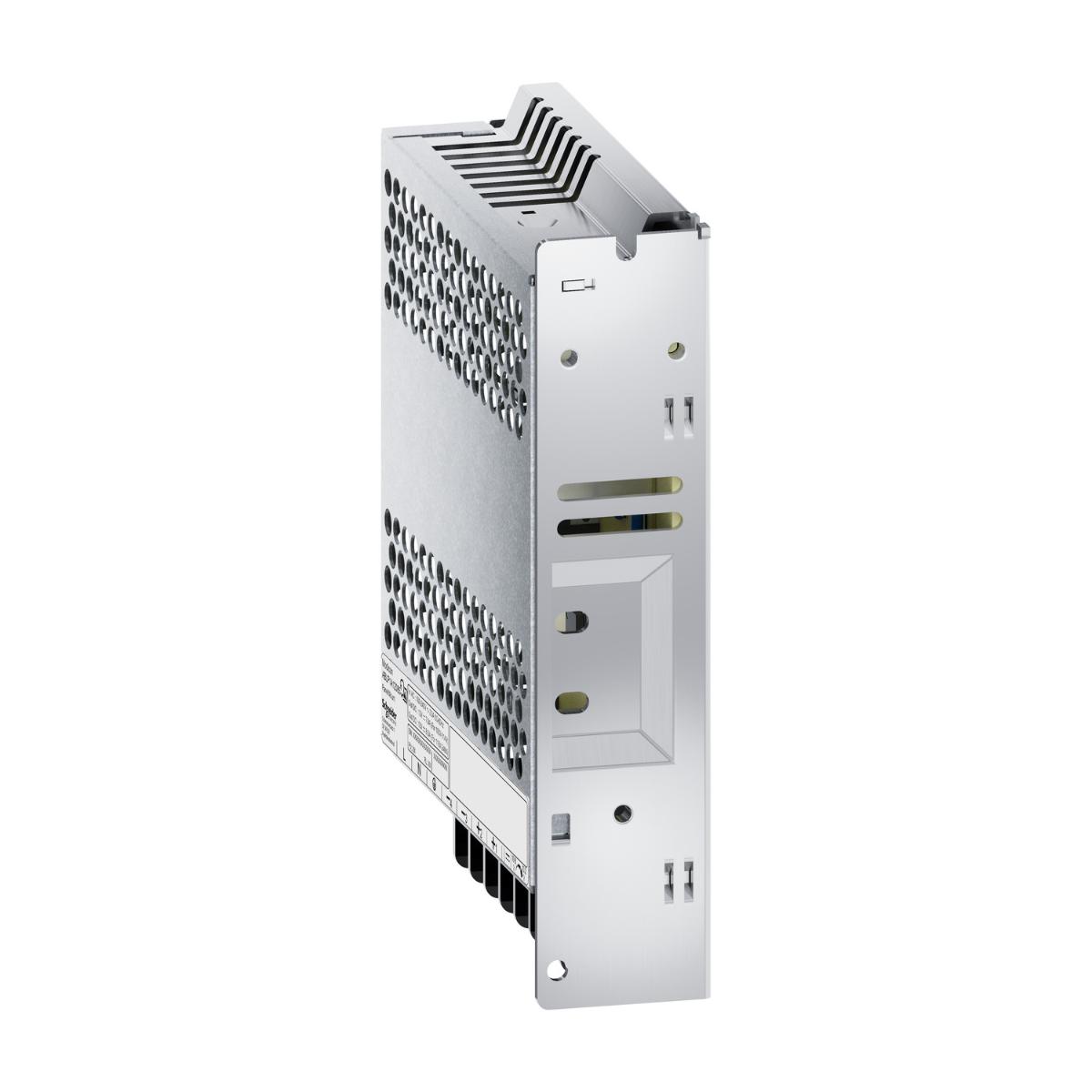

Schneider Electric ABLP1A12085 Regulated Power Supply, modicon power supply, 100...240V AC, 12V, 8.5A, single phase, Panel Mount
Code: SCHABLP1A12085
Unit of measure:
EACH
Description
POWER SUPPLY 12V 8.5A PANEL MOUNT
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure material | aluminium |
| Electromagnetic compatibility | disturbing field emission conforming to EN 55016-2-3 |
| Ambient air temperature for operation | -30-50 °C without derating mounting position A- B- F- G < 2000 m |
| Input protection type | integrated fuse (not interchangeable) 4 A |
| Current consumption | < 1.5 A 230 V AC |
| Output voltage | 12 V DC |
| Efficiency | 88 % at 230 V AC |
| Supplier Code | ABLP1A12085 |
| Maximum leakage current | 1 mA 240 V AC |
| Power factor | 0.45 at 230 V AC |
| Power dissipation in W | 21 W |
| Vibration resistance | 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 3750 V AC with input to output |
| Shock resistance | 150 m/s² for 11 ms |
| Earthing system | TT |
| Power supply type | regulated switch mode |
| Line and load regulation | < 1 % at full voltage range in line at 25 °C |
| IP degree of protection | IP10 |
| Range | Modicon Power Supply |
| Overvoltage category | II |
| Power supply output current | 8.5 A |
| Electrical shock protection class | class I |
| Response time | < 500 ms |
| Pollution degree | 2 |
| Network frequency limits | 50-60 Hz |
| Inrush current | 85 A at 230 V |
| Connections - terminals | screw connection: 0.75...1.5mm²- (AWG 18...AWG 16) with wire end ferrule |
| Rated power in W | 100 W |
| Output voltage limits | 10.8...13.2 V |
| Input voltage | 100...240 V AC single phase |
| Supply | SELV conforming to IEC 60204-1 |
| Depth | 129mm |
| Mounting support | top hat type TH35-7.5 rail conforming to IEC 60715 |
| Height | 30mm |
| Electromagnetic emission | radiated emissions conforming to IEC 61000-6-4 |
| Output protection type | against over temperature- protection technology: manual reset |
| Width | 97mm |
| Operating altitude | 5000 m |
| Status LED | 1 LED (green) output voltage |
| Meantime between failure [MTBF] | 700000 h at 25 °C- full load conforming to SR 332 |
| Service life | 10 year(s) |
| Input voltage limits | 90...264 V AC |
| Residual ripple | < 120 mV |
| Output coupling | serial |
| Standards | CSA C22.2 No 61010-1 |
| Product certifications | KC |
| Brand Name | Schneider Electric |
| Variant option | panel mount |
| Holding time | > 40 ms 230 V AC |
| Net weight | 0.3 kg |
| Product or component type | power supply |
| Load capacitance | 4000 µF |
