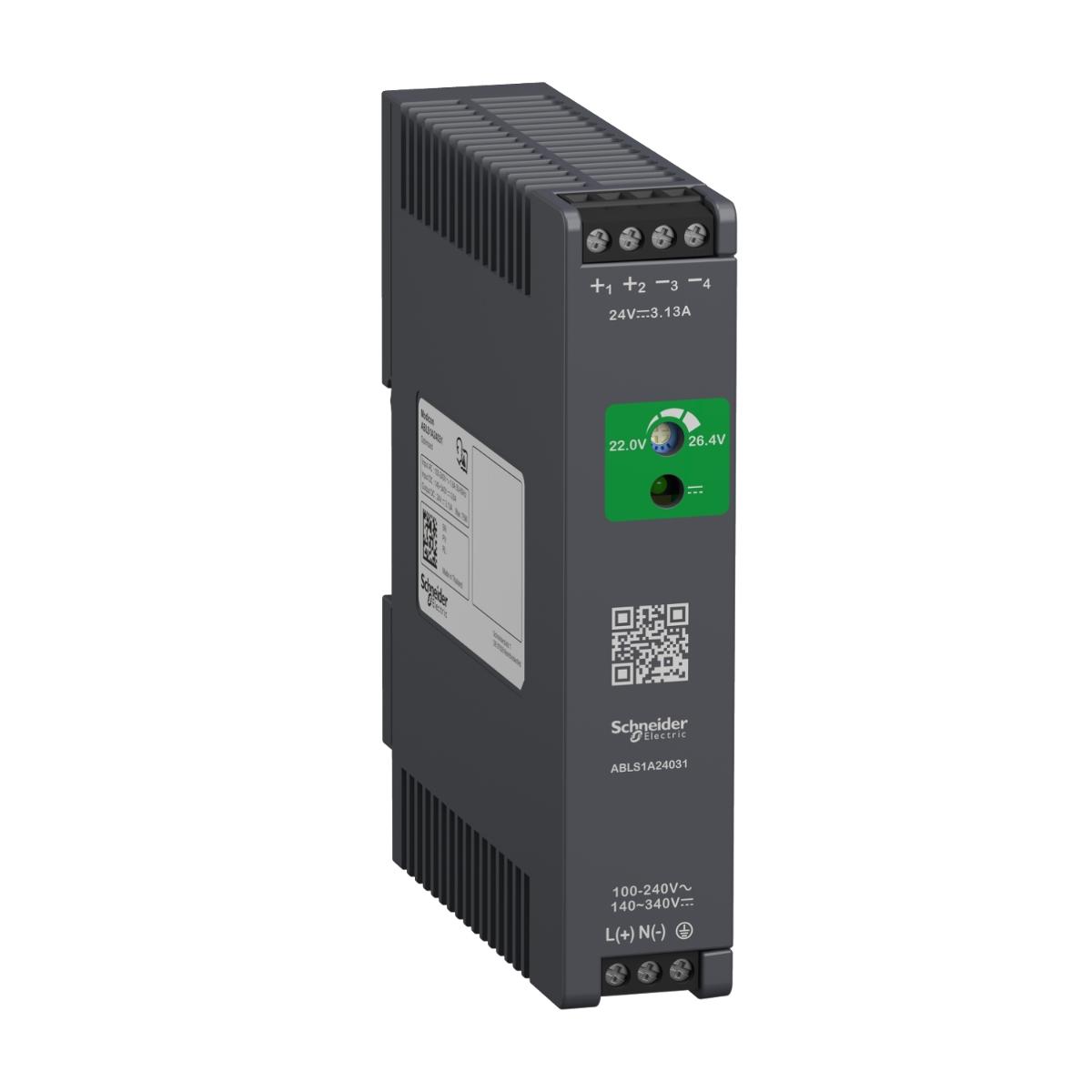

Schneider Electric ABLS1A24031 Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, single phase, Optimized
Code: SCHABLS1A24031
Unit of measure:
EACH
Description
POWER SUPPLY 24V 3.1A 1PH OPTIMIZED
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure material | plastic |
| Electromagnetic compatibility | surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 |
| Ambient air temperature for operation | 50-70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m |
| Input protection type | external protection (recommended) 20 A Curve C |
| Current consumption | < 1 A 230 V AC |
| Output voltage | 24 V DC |
| Efficiency | 88 % at 230 V AC |
| Supplier Code | ABLS1A24031 |
| Maximum leakage current | 1 mA 240 V AC |
| Power factor | 0.45 at 230 V AC |
| Power dissipation in W | 15 W |
| Vibration resistance | 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 3000 V AC with input to output |
| Shock resistance | 150 m/s² for 11 ms |
| Earthing system | TT |
| Power supply type | regulated switch mode |
| Line and load regulation | < 1 % at full voltage range in line at 25 °C |
| IP degree of protection | IP20 |
| Range | Modicon Power Supply |
| Overvoltage category | II |
| Power supply output current | 3.13 A |
| Electrical shock protection class | class I |
| Response time | < 1.2 s |
| Pollution degree | 2 |
| Network frequency limits | 50-60 Hz |
| Inrush current | 80.0 A at 230 V |
| Connections - terminals | screw connection: 0.75...2.5mm²- (AWG 18...AWG 14) for input |
| Rated power in W | 75 W |
| Output voltage limits | 21.6...26.4 V |
| Input voltage | 140...340 V DC |
| Supply | SELV conforming to IEC 60204-1 |
| Depth | 102mm |
| Mounting support | double-profile DIN rail |
| Height | 123.6mm |
| Electromagnetic emission | radiated emissions conforming to IEC 61000-6-4 |
| Output protection type | against over temperature- protection technology: manual reset |
| Width | 27mm |
| Operating altitude | < 5000 m |
| Status LED | 1 LED (green) output voltage |
| Meantime between failure [MTBF] | 700000 h at 25 °C- full load conforming to SR 332 |
| Service life | 10 year(s) |
| Input voltage limits | 120...375 V DC without temperature derating |
| Residual ripple | < 120 mV |
| Output coupling | serial |
| Standards | IEC 61000-6-2 |
| Product certifications | NEC: class 2 |
| Brand Name | Schneider Electric |
| Variant option | optimized |
| Holding time | > 40 ms 230 V AC |
| Net weight | 0.22 kg |
| Product or component type | power supply |
| Load capacitance | 5000 µF |
