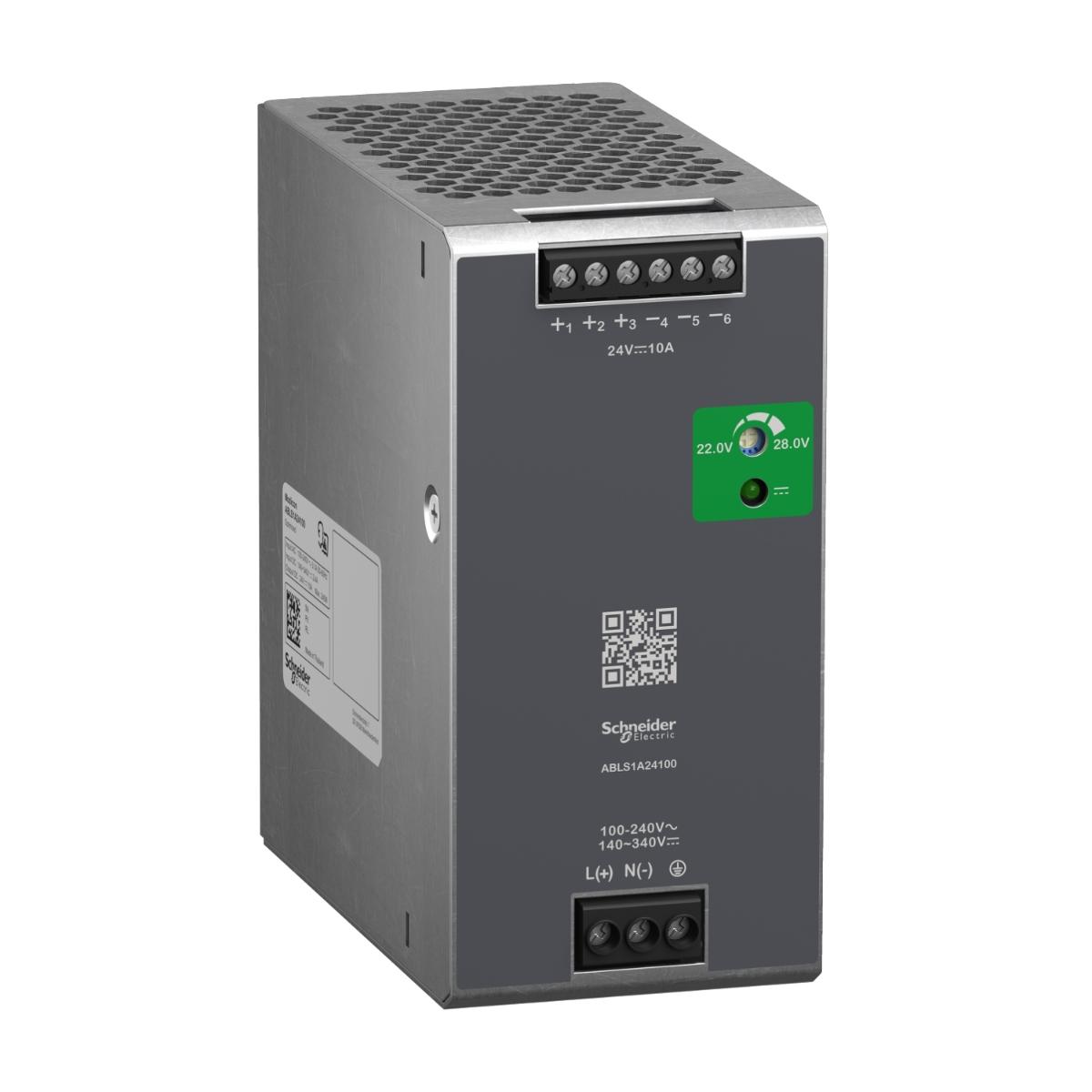

Schneider Electric ABLS1A24100 Regulated Power Supply, 100 to 240V AC, 24V, 10A, single phase, Optimized
Code: SCHABLS1A24100
Unit of measure:
EACH
Description
POWER SUPPLY 24V 10A 1PH OPTIMIZED
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure material | aluminium |
| Electromagnetic compatibility | immunity to voltage dips conforming to IEC 61000-4-11 |
| Ambient air temperature for operation | -20-50 °C without derating mounting position A 230 V AC < 2000 m |
| Input protection type | external protection (recommended) 20 A Curve B |
| Current consumption | < 2.4 A 140 V DC |
| Output voltage | 24 V DC |
| Efficiency | 88 % at 230 V AC |
| Supplier Code | ABLS1A24100 |
| Maximum leakage current | 1 mA 240 V AC |
| Power factor | 0.95 at 230 V AC |
| Power dissipation in W | 36 W |
| Vibration resistance | 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 3000 V AC with input to output |
| Shock resistance | 150 m/s² for 11 ms |
| Earthing system | IT |
| Power supply type | regulated switch mode |
| Line and load regulation | < 1 % at full voltage range in line at 25 °C |
| IP degree of protection | IP20 |
| Range | Modicon Power Supply |
| Overvoltage category | II |
| Power supply output current | 10 A |
| Electrical shock protection class | class I |
| Response time | < 1 s |
| Pollution degree | 2 |
| Network frequency limits | 50-60 Hz |
| Inrush current | 60.0 A at 230 V |
| Connections - terminals | screw connection: 0.5...2.5mm²- (AWG 20...AWG 14) with wire end ferrule for output |
| Rated power in W | 240 W |
| Output voltage limits | 22...28 V |
| Input voltage | 140...340 V DC |
| Supply | SELV conforming to IEC 60364-4-41 |
| Depth | 117.6mm |
| Mounting support | double-profile DIN rail |
| Height | 123.6mm |
| Electromagnetic emission | radiated emissions conforming to IEC 61000-6-4 |
| Output protection type | against overvoltage- protection technology: manual reset |
| Width | 60mm |
| Operating altitude | < 5000 m |
| Status LED | 1 LED (green) output voltage |
| Meantime between failure [MTBF] | 700000 h at 25 °C- full load conforming to SR 332 |
| Service life | 10 year(s) |
| Input voltage limits | 120...375 V DC without temperature derating |
| Residual ripple | < 120 mV |
| Output coupling | serial |
| Standards | IEC 61000-6-4 |
| Product certifications | cUL recognized |
| Brand Name | Schneider Electric |
| Variant option | optimized |
| Holding time | > 20 ms 230 V AC |
| Net weight | 0.8 kg |
| Product or component type | power supply |
| Load capacitance | 8000 µF |
