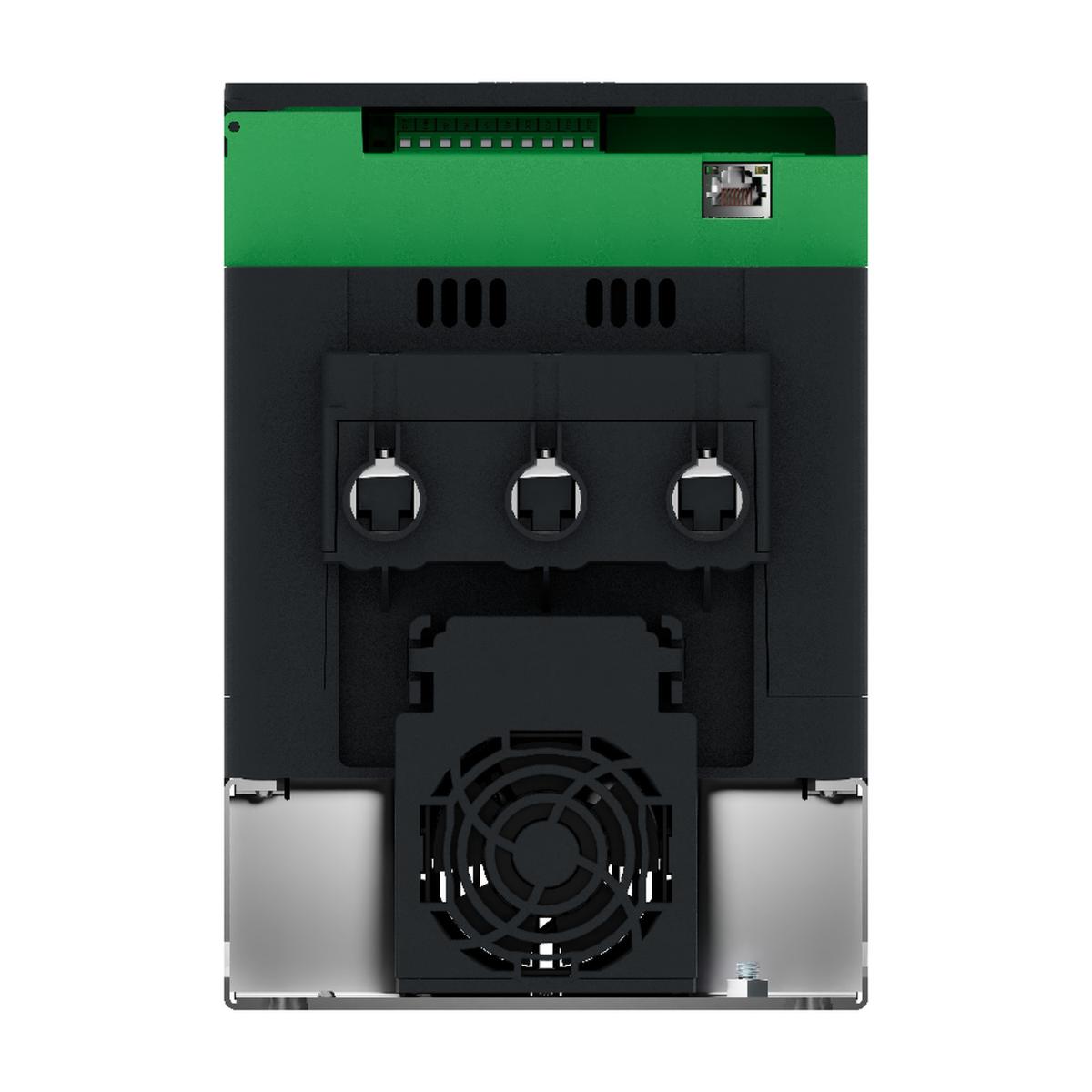

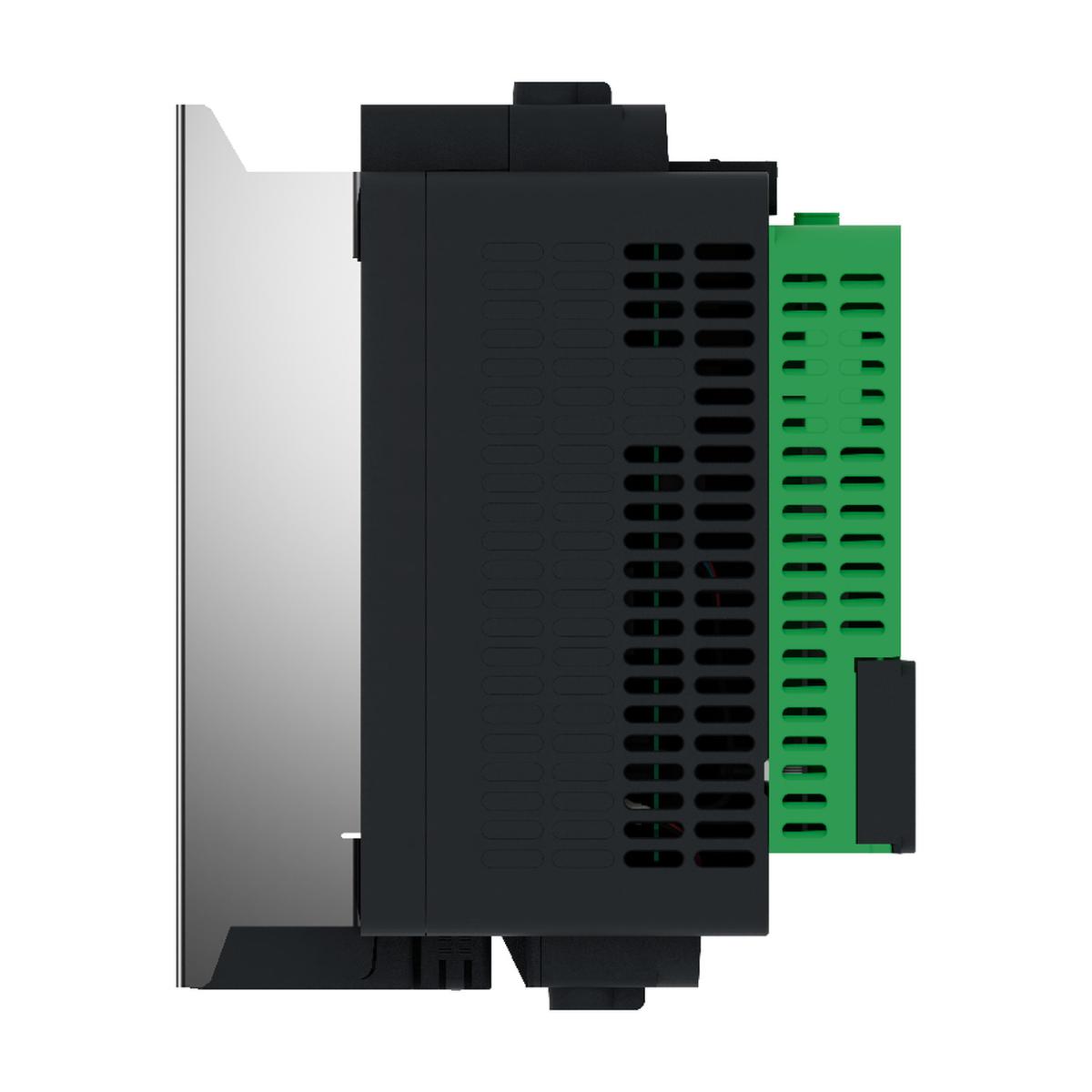

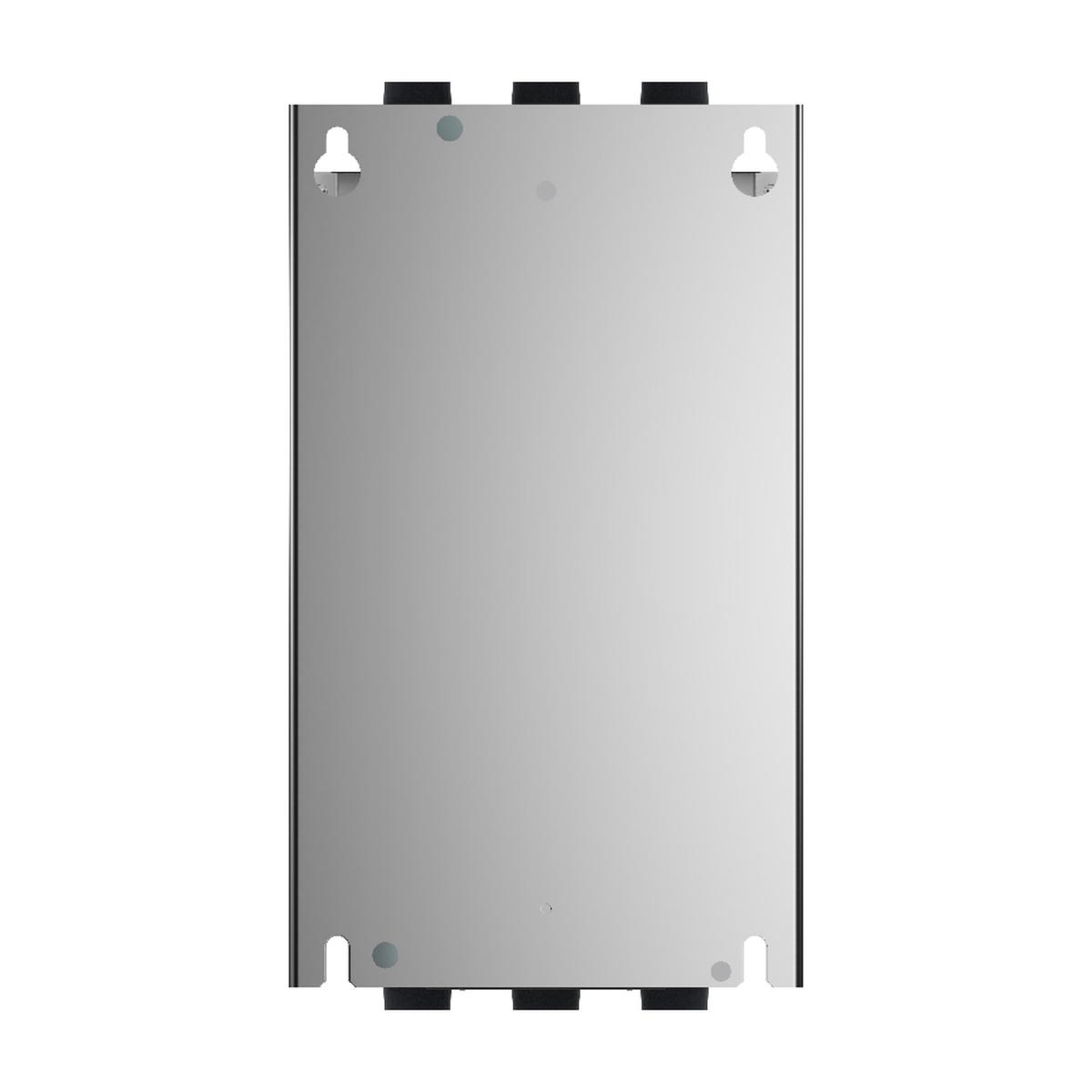

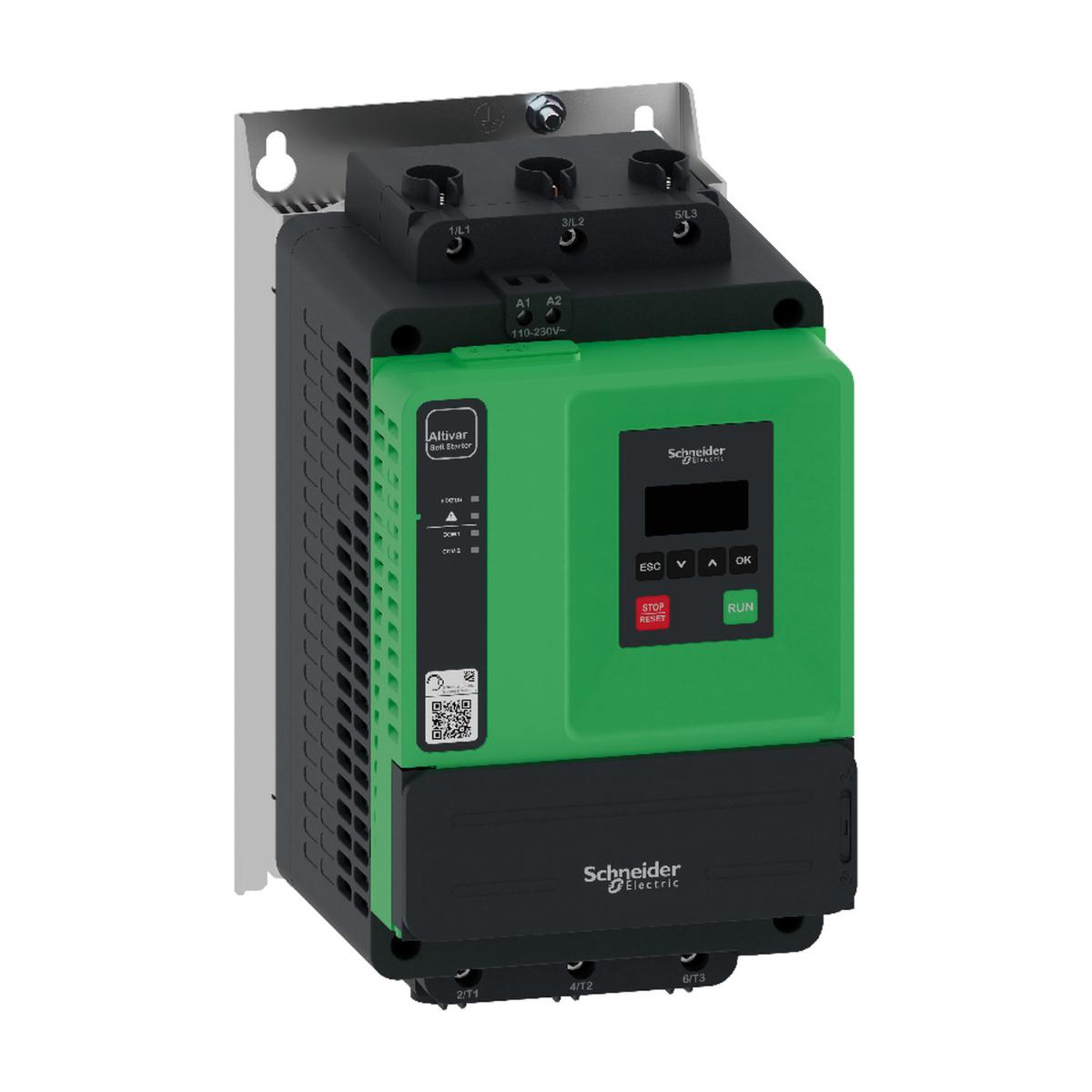

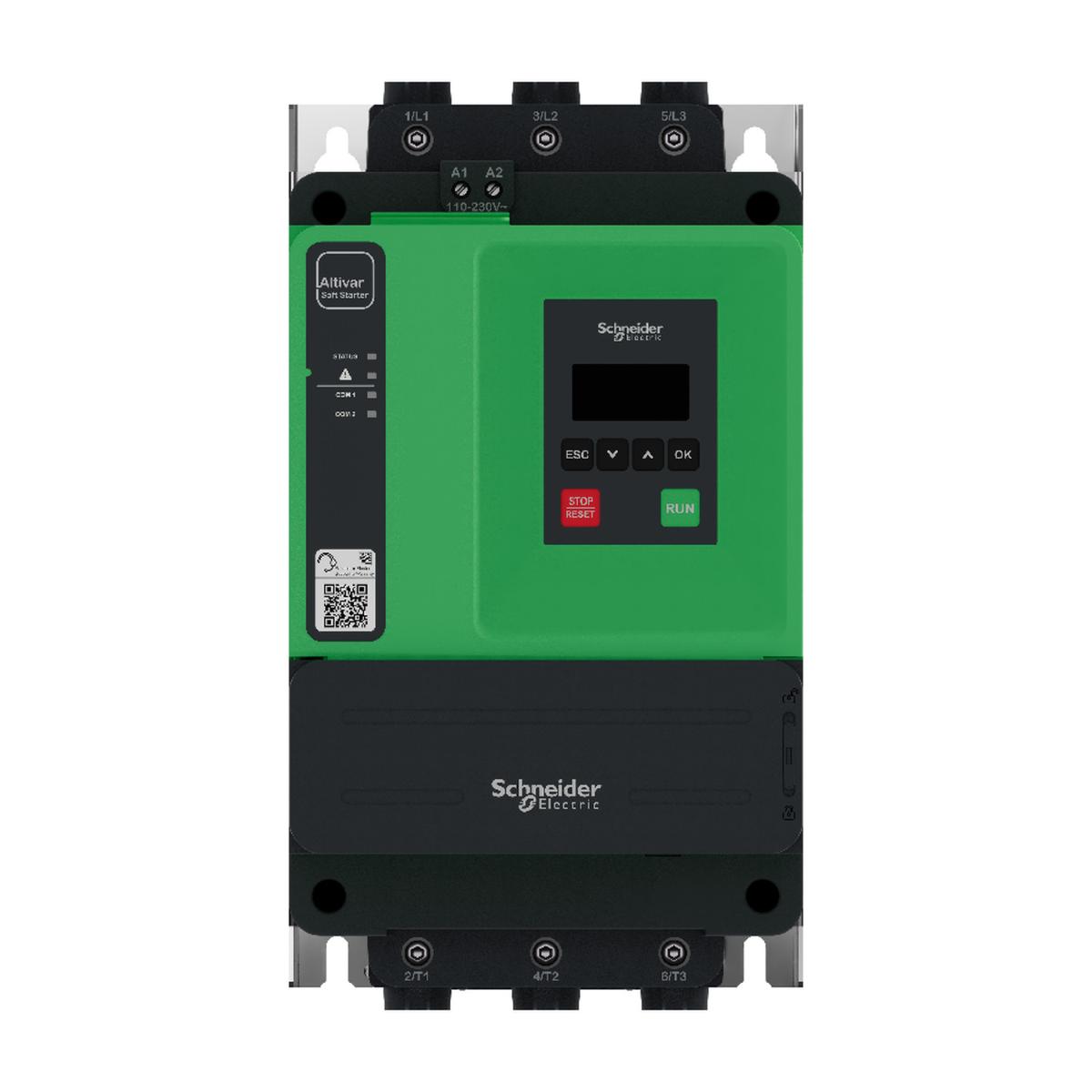

Schneider Electric ATS430D88S6, Soft starter, Altivar Soft Starter ATS430, 88A, 208 to 600V AC, control supply 110 to 230V AC

Code: SCHATS430D88S6

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric ATS430D88S6, Soft starter, Altivar Soft Starter ATS430, 88A, 208 to 600V AC, control supply 110 to 230V AC

This soft starter belongs to the Altivar Soft Starter ATS430 range which is intended to smoothly start and stop asynchronous motors supplied from 208 to 600V. With an operational rated current of 88A, it supplies motor from 22 to 55kW according to mains voltage. With an efficiency rating of 99.5%, torque control, high stress resistance, and complete monitoring, the ATS430 provides the essentials for effectiveness. Altivar Soft Starter ATS430 delivers best in class motor control with its torque control, the original by Schneider Electric. ATS430 provides complete system monitoring, including the motor, application, power and energy with an accuracy greater than 95%. The cybersecurity standards for ATS430 are met by incorporating best practices that help minimize downtime. Dimensions are 160mm (width), 230mm (depth), 289mm (height) and it weighs 6.6kg. ATS430 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified. Altivar Soft Starter ATS430 is designed for applications such as pumps, fans, compressors, conveyors, and mixers. It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, and CCC certifications. Some accessories are available, including an IP65 or IP43 remote mounting kit for installing a plain text or graphic display terminal on the enclosure door. The packaging is made from recycled cardboard and incorporates less single-use plastic. The ATS430 soft starters shall be mounted vertically inside an enclosure. The Altivar Soft Starter ATS430 range offers torque control, reliable operation, and simplicity. It also integrates essential features for the future, including cybersecurity best practices and condition monitoring. ATS430 delivers the essentials for effectiveness while lowering the overall equipment costs.

Features:
• Reduce time (design to operation) and overall cost
• Improved sustainability (enviromental performance, durability and efficiency)
• Reduced operational expenditure (high durability)
• Meets cybersecurity standards (integrates best practice features)

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Product destination	asynchronous motors
With safety function Safe brake management (SBC/SBT)	false
Relative humidity	5-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Data format	8 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)
With safety function Safe Speed Monitor (SSM)	false
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Ambient air temperature for operation	40-60 °C (with current derating of 1 % per °C above 40 °C)
Connector type	open style
Minimum switching current	100 mA at 12 V DC for relay outputs
Analogue output type	voltage output AQ1 : 0...10 V , impedance> 470 Ohm
Ambient air temperature for storage	-40-70 °C
Number of addresses	0-247 for Modbus serial
Apparent power	70 VA
Discrete input number	4
Protection type	thermal protection: mains
material declaration	true
Motor power kW	55 kW at 500 V in line normal duty
Device connection	in line
With safety function Safely Limited Position (SLP)	false
Pollution degree	level 3
With sft fct Safe Stop 2 (SS2)	false
With safety function Safely Limited Speed (SLS)	false
Input compatibility	DI3: digital input level 1 PLC conforming to EN/IEC 61131-2
Product specific application	standard industrial machines
Accuracy class	class 10E
Discrete input logic	digital input DI3 at State 0: 0...< 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
With safety function Safe torque off (STO)	false
Depth	230.2 mm
Volume of cooling air	31 m3/h
internal bypass	true
Output current drift	150-700 %
Maximum deflection under vibratory load (during transport)	1.75 mm at 2...9 Hz
Width	160 mm
Ambient air transport temperature	-40-70 °C
Operating altitude	> 2000...4800 m with current derating 1 % per 100 m above 2000 m
Display type	1 LED (yellow) for COM2
Device short name	ATS430
NEMA degree of protection	open type
Power loss static current independent	19 W
Maximum acceleration under vibratory load (during storage)	1.5 gn at 200…500 Hz
Method of access	slave Modbus serial
[Ue] rated operational voltage	575 V 75 hp normal duty
Analogue output number	1
Relay output number	2
[Ui] rated insulation voltage	600 V
Transmission frame	RTU : open style (DO, D1, PE, COM)
On-load factor	50 %
Environmental class (during operation)	class 3S3 according to IEC 60721-3-3
Supply frequency	50...60 Hz - 20...20 %
Analogue input number	1
Torque control	true
Discrete input type	(DI4) digital input, 4.4 kOhm
Transmission rate	0.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)
Net weight	6.60 kg
With safety function Safe Stop 1 (SS1)	false
Operating position	vertical +/- 10 degree
Electromagnetic compatibility	immunity to electrical transients level 4 conforming to IEC 61000-4-4
With safety function Safe Direction (SDI)	false
Network frequency	50...60 Hz
Type of polarization	no impedance for Modbus serial
With safety function Safe Operating Stop (SOS)	false
360Image	https://visuals.se.com/ATS430_S1B_360/20240501T1207/360
Network number of phases	3 phases
With safety function Safe Position (SP)	false
Function available	ports and services hardening
Analogue input type	PTC2 : PTC temperature probe
Maximum acceleration under shock load (during transport)	10 gn at 11 ms
Communication port protocol	Modbus serial open style (DO, D1, PE, COM)
IP degree of protection	IP20
Voltage ramp	true
Display screen available	true
[Ie] rated operational current	normal duty: 88 A in line (at <40 °C)
Maximum acceleration under vibratory load (during transport)	1.5 gn at 200…500 Hz
Overload current	400 % Ie for 13 s
Service factor	100
Range of product	Altivar Soft Starter ATS430
Power loss per device current dependent	11 W
Power losses	717 W during starting at 40 °C at 400% In
Suitable for mounting onto standard rails	false
Maximum switching current	relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
Integrated motor overload protection	true
Height	289 mm
Relay output type	relay outputs R2A, R2C NO
Maximum acceleration under vibrational stress (during operation)	1 gn at 13…200 Hz
[Uc] control circuit voltage	110...230 V AC 50...60 Hz - 15...10 %
Rated current pwr loss specification	88 A
Discrete output number	0
Marking	CE
Maximum deflection under vibratory load (during storage)	1.75 mm at 2...9 Hz
Standards	UL 60947-4-2
With safety function Safe programmable logic	false
Product certifications	UKCA
Brand Name	Schneider Electric
Maximum acceleration under shock impact (during operation)	15 gn at 11 ms
[Uimp] rated impulse withstand voltage	6 kV
Operating rate	10 cyc/h
Motor power hp	60 hp at 460 V normal duty
Utilisation category	AC-53A
Physical interface	2-wire RS 485 - connector(s): open style (DO, D1, PE, COM)
Maximum acceleration under shock load (during storage)	10 gn at 11 ms
Product or component type	soft starter
