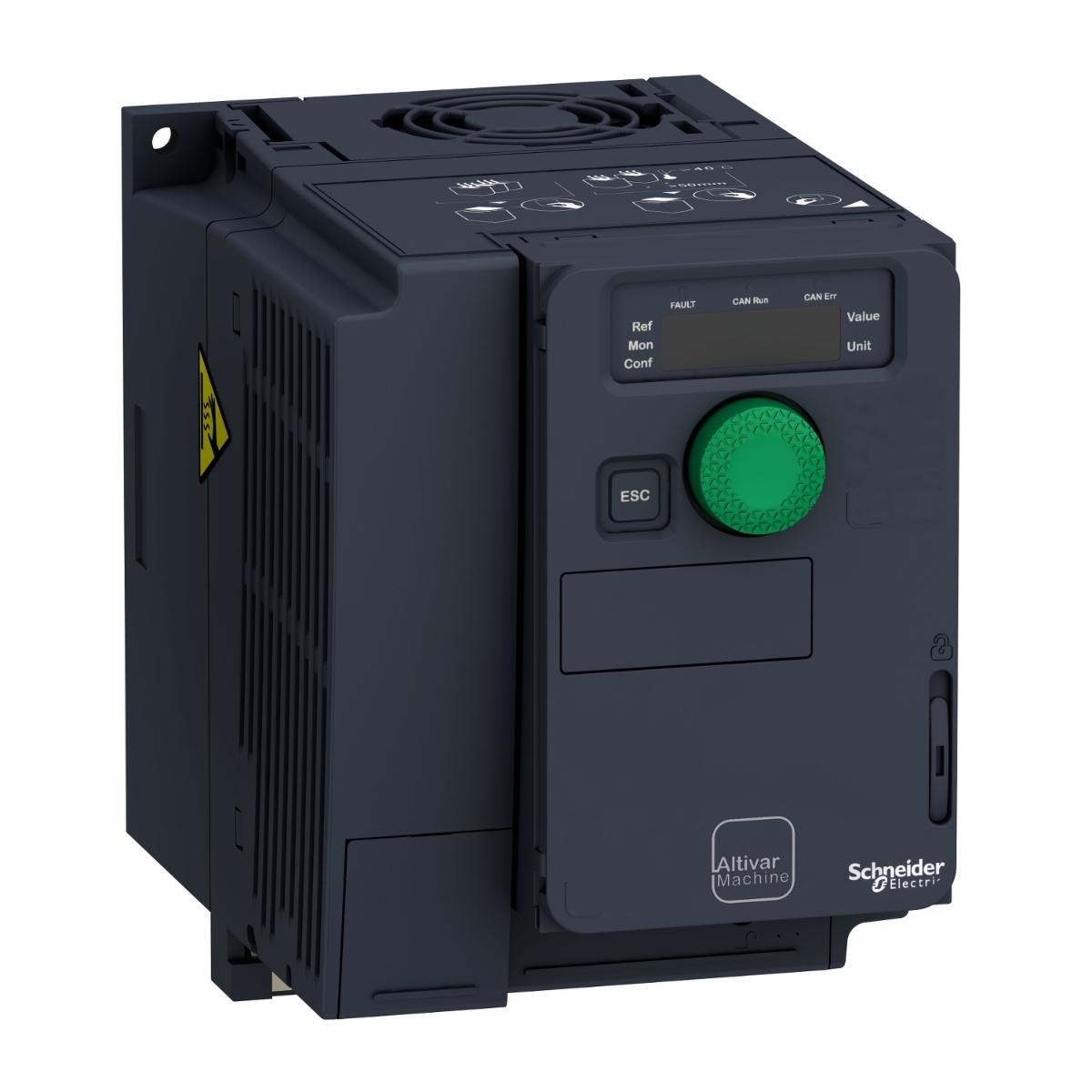

Schneider Electric ATV320U15M2C variable speed drive, Altivar Machine ATV320, 1.5kW, 200 to 240V, 1 phase, compact
Code: SCHATV320U15M2C
Unit of measure:
EACH
Description
ATV320 1 5KW 200V 1PH COMPACT CONTROL VA
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| With safety function Safe brake management (SBC/SBT) | false |
| With safety function Safe Speed Monitor (SSM) | false |
| Maximum deflection under vibratory load (during operation) | 1.5mm at 2...13 Hz |
| Line current | 14.9 A at 240 V (heavy duty) |
| Environmental class (during storage) | class 1S2 according to EN 60721-3 |
| Supporting protocol for Data-Highway | false |
| Operating element present | true |
| Ambient air temperature for operation | 50-60 °C with derating factor |
| Minimum switching current | relay output R1A- R1B- R1C- R2A- R2C: 5 mA at 24 V DC |
| Supporting protocol for EtherNet/IP | true |
| Switching frequency | 4...16 kHz with derating factor |
| Analogue output type | software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm- resolution 10 bits |
| Ambient air temperature for storage | -25-70 °C |
| Number of input phases | 1 |
| Discrete output type | open collector DQ- 0-1 kHz 30 V DC 100 mA |
| Apparent power | 3.6 kVA at 240 V (heavy duty) |
| Power dissipation in W | fan: 76.0 W at 200 V- switching frequency 4 kHz |
| Sampling duration | 2 ms (AQ1) - analog output |
| Brake chopper integrated | true |
| Discrete input number | 7 |
| Protection type | overheating protection: drive |
| Encoder protocol | RS 422 |
| Relative symmetric mains voltage tolerance | 10 % |
| Motor power kW | 1.5 kW for heavy duty |
| Supporting protocol for DeviceNet | true |
| With safety function Safely Limited Position (SLP) | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | true |
| Variant | standard version |
| Application in domestic and commercial area permitted | false |
| Computer port | true |
| Maximum input current | 17.8 A |
| 4 quadrant operation possible | true |
| Option card | communication module- PROFINET |
| Pollution degree | 2 |
| Prospective line Isc | 1 kA |
| Number of HW interfaces serial RS232 | 0.0 |
| With sft fct Safe Stop 2 (SS2) | false |
| Supporting protocol for TCP/IP | true |
| Permitted relative humidity (during transport) | class 2K5 according to EN 60721-3 |
| With safety function Safely Limited Speed (SLS) | true |
| Number of HW interfaces serial TTY | 0.0 |
| Product specific application | complex machines |
| Discrete input logic | negative logic (sink) |
| With safety function Safe torque off (STO) | true |
| Depth | 158.0mm |
| Application in industrial area permitted | true |
| Supporting protocol for INTERBUS | false |
| Design of frequency changer | U converter |
| Volume of cooling air | 16.0 m3/h |
| Supporting protocol for LON | false |
| Linearity error | AQ1: +/- 0.3 % for analog output |
| Housing material | plastic |
| Number of output phases | 1 |
| Maximum deflection under vibratory load (during transport) | 3.5mm at 2...13 Hz |
| Width | 105.0mm |
| Supporting protocol for SafetyBUS P | false |
| Ambient air transport temperature | -25-70 °C |
| Capacity of DC link | 1410 µF |
| Nominal output current | 8.0 A |
| NEMA degree of protection | NEMA 1 |
| Power loss static current independent | 76.0 W |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 13...200 Hz |
| Method of access | slave CANopen |
| Permitted relative humidity (during operation) | class 3K5 according to EN 60721-3 |
| Maximum output voltage | 240 V |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Analogue output number | 1 |
| Supporting protocol for BACnet | false |
| Number of HW interfaces parallel | 0.0 |
| Motor slip compensation | not available in voltage/frequency ratio (2 or 5 points) |
| Environmental class (during operation) | class 3S2 according to IEC 60721-3-3 |
| Analogue input number | 3 |
| Number of inputs- potential-free | 0 |
| Discrete input type | DI1...DI6 logic inputs- 24 V DC (30 V) |
| Net weight | 1.6 kg |
| Synchronous motor control profile | vector control without sensor |
| Refresh time | relay output (R1A- R1B- R1C): 2 ms |
| Asynchronous motor control profile | voltage/frequency ratio- 2 points |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SUCONET | false |
| EMC filter | Class C2 EMC filter integrated |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| With safety function Safe Stop 1 (SS1) | true |
| Operating position | vertical +/- 10 degree |
| Supporting protocol for ASI | false |
| Electromagnetic compatibility | radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 |
| Permitted relative humidity (during storage) | class 1K5 according to EN 60721-3 |
| Nominal switching frequency | 4 kHz |
| Supporting protocol for KNX | false |
| Environmental class (during transport) | class 2S1 according to EN 60721-3 |
| With safety function Safe Direction (SDI) | false |
| Number of HW interfaces USB | 0.0 |
| Relative symmetric network frequency tolerance | 5 % |
| Mounting mode | wall mount |
| Supplier Code | ATV320U15M2C |
| Number of HW interfaces serial RS422 | 0.0 |
| Supporting protocol for SERCOS | false |
| Network frequency | 50...60 Hz |
| With safety function Safe Operating Stop (SOS) | false |
| Supporting protocol for other bus systems | true |
| Network number of phases | single phase |
| With safety function Safe Position (SP) | false |
| Analogue input type | AI2 bipolar differential voltage: +/- 10 V DC- impedance: 30 kOhm- resolution 10 bits |
| Maximum acceleration under shock load (during transport) | 150 m/s² at 11 ms |
| Communication port protocol | CANopen |
| IP degree of protection | IP20 |
| Range | Altivar Machine ATV320 |
| Overvoltage category | III |
| Optical interface present | false |
| Number of inputs- bidirectional- not potential-free | 0 |
| EMC limit value (complied) | true |
| 1 phase low current possible | false |
| Acceleration and deceleration ramps | acceleration/deceleration automatic stop with DC injection |
| Nominal output power | 1.5 kW |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 13...200 Hz |
| Base load current at high overload | 4.8 A |
| Accuracy | +/- 1 % AQ1 for a temperature of 25 °C analog output |
| Supporting protocol for CAN | true |
| Power loss per device current dependent | 76.0 W |
| Supporting protocol for PROFINET CBA | false |
| Maximum switching current | relay output R1A- R1B- R1C- R2A- R2C on inductive load- cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC |
| Height | 142.0mm |
| Number of HW interfaces serial RS485 | 1.0 |
| Relay output type | configurable relay logic R2C |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Supporting protocol for PROFIBUS | true |
| Number of HW interfaces PROFINET | 0.0 |
| Regulation loop | adjustable PID regulator |
| Maximum output frequency | 0.599 kHz |
| Number of HW interfaces other | 1.0 |
| Format of the drive | compact |
| Discrete output number | 3 |
| Maximum associated fuse rating | 40 A |
| Marking | UL |
| Maximum deflection under vibratory load (during storage) | 3.5mm at 2...13 Hz |
| Supporting protocol for PROFIsafe | false |
| Standards | IEC 61800-5-1 |
| Brand Name | Schneider Electric |
| With safety function Safe programmable logic | false |
| Product certifications | EAC |
| Braking to standstill | by DC injection |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW interfaces industrial Ethernet | 0.0 |
| Supporting protocol for MODBUS | true |
| Transient overtorque | 170-200 % of nominal motor torque |
| Maximum acceleration under shock load (during storage) | 150 m/s² at 11 ms |
| Product or component type | variable speed drive |
