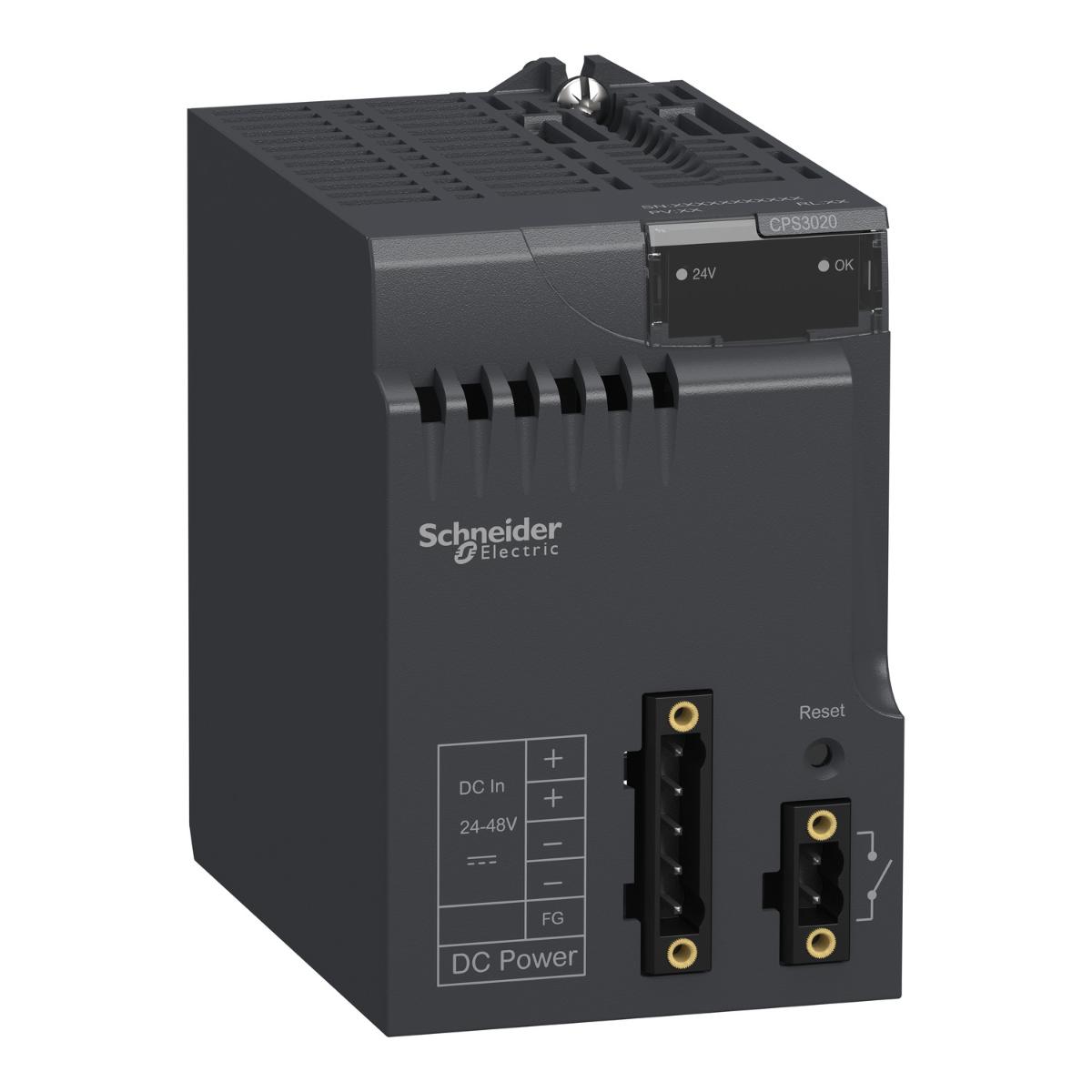

Schneider Electric BMXCPS3020 power supply module, Modicon X80, 24 to 48V DC, 31.2W
Code: SCHBMXCPS3020
Unit of measure:
EACH
Description
HIGH POWER ISOL 24TO48 VDC POWER SUPPLY
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Maximum cable distance between devices | 15 m power supply cable copper 2.5mm² |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| It on activation | 0.3 A.s 48 V |
| Supply circuit type | DC |
| I²t on activation | 1 A².s 24 V |
| Ambient air temperature for operation | 0-60 °C |
| Electrical connection | 1 connector 5 pin(s)line supply- protective earth |
| Directives | 2014/30/EU - electromagnetic compatibility |
| Supplier Code | BMXCPS3020 |
| MTBF reliability | 4600000 H |
| Ambient air temperature for storage | -40-85 °C |
| Primary voltage limit | 18...62.4 V |
| Vibration resistance | 3 gn |
| Operating altitude | 2000...5000 m with derating factor |
| Status LED | 1 LED (green) rack voltage OK |
| Primary voltage | 24...48 V isolated |
| Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply |
| Dielectric strength | 1500 V primary/secondary |
| Protection type | overvoltage protection for secondary circuit- 24 V sensor power supply |
| Shock resistance | 30 gn |
| Product compatibility | not compatible with BMEXBP..02 |
| Input current | 1.65 A 24 V |
| Insulation resistance | >= 10 MOhm primary/ground |
| Control type | RESET push-button cold restart |
| IP degree of protection | IP20 |
| Range | Modicon X80 |
| Brand Name | Schneider Electric |
| Immunity to microbreaks | 1 ms |
| Secondary power | 31.2 W 24 V DC I/O module power supply and processor |
| Protective treatment | TC |
| Net weight | 0.34 kg |
| Maximum power dissipation in W | 8.5 W |
| Inrush current | 60 A 48 V |
| Product or component type | power supply module |
