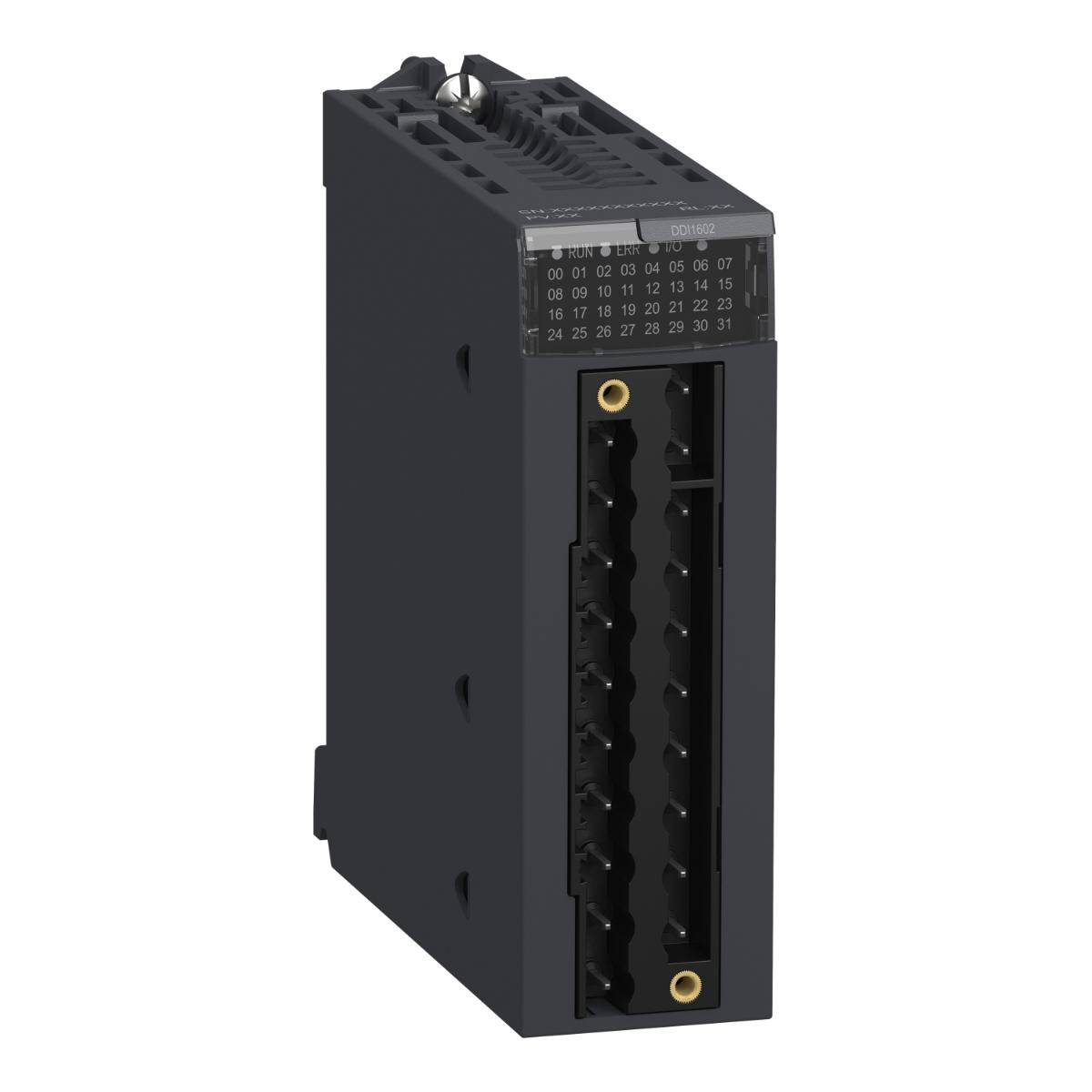

Schneider Electric BMXDDI1602 discrete input module, Modicon X80, 16 inputs, 24V DC positive
Code: SCHBMXDDI1602
Unit of measure:
EACH
Description
DISCRETE INPUT MODULE MODICON 16I 24VDC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Discrete input voltage | 24 V DC- discrete input logic: positive |
| Typical current consumption | 76 mA at 3.3 V DC |
| DC maximum filtering time | 7 ms |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
| Ambient air temperature for operation | 0-60 °C |
| Directives | 2014/30/EU - electromagnetic compatibility |
| Supplier Code | BMXDDI1602 |
| MTBF reliability | 775000 H |
| Environmental characteristic | fungal spore resistant class 3B2 |
| Ambient air temperature for storage | -40-85 °C |
| Power dissipation in W | 2.5 W |
| Vibration resistance | 3 gn |
| Operating altitude | 2000...5000 m with derating factor |
| Status LED | 1 LED (red) module error (ERR) |
| Input impedance | 6800 Ohm |
| Discrete input current | 3.5 mA |
| Discrete input number | 16 |
| Voltage range | 19...30 V |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute- primary/secondary |
| Voltage detection threshold | > 18 V DC sensor OK |
| Protection type | reverse polarity protection |
| Shock resistance | 30 gn |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current state 0 guaranteed | <= 1.5 mA |
| IP degree of protection | IP20 |
| Range | Modicon X80 |
| Brand Name | Schneider Electric |
| Input type | current sink (logic positive) |
| Paralleling of inputs | yes |
| Discrete input type | isolated |
| Net weight | 0.115 kg |
| Current state 1 guaranteed | >= 2 mA |
| DC typical filtering time | 4 ms |
| Product or component type | discrete input module |
