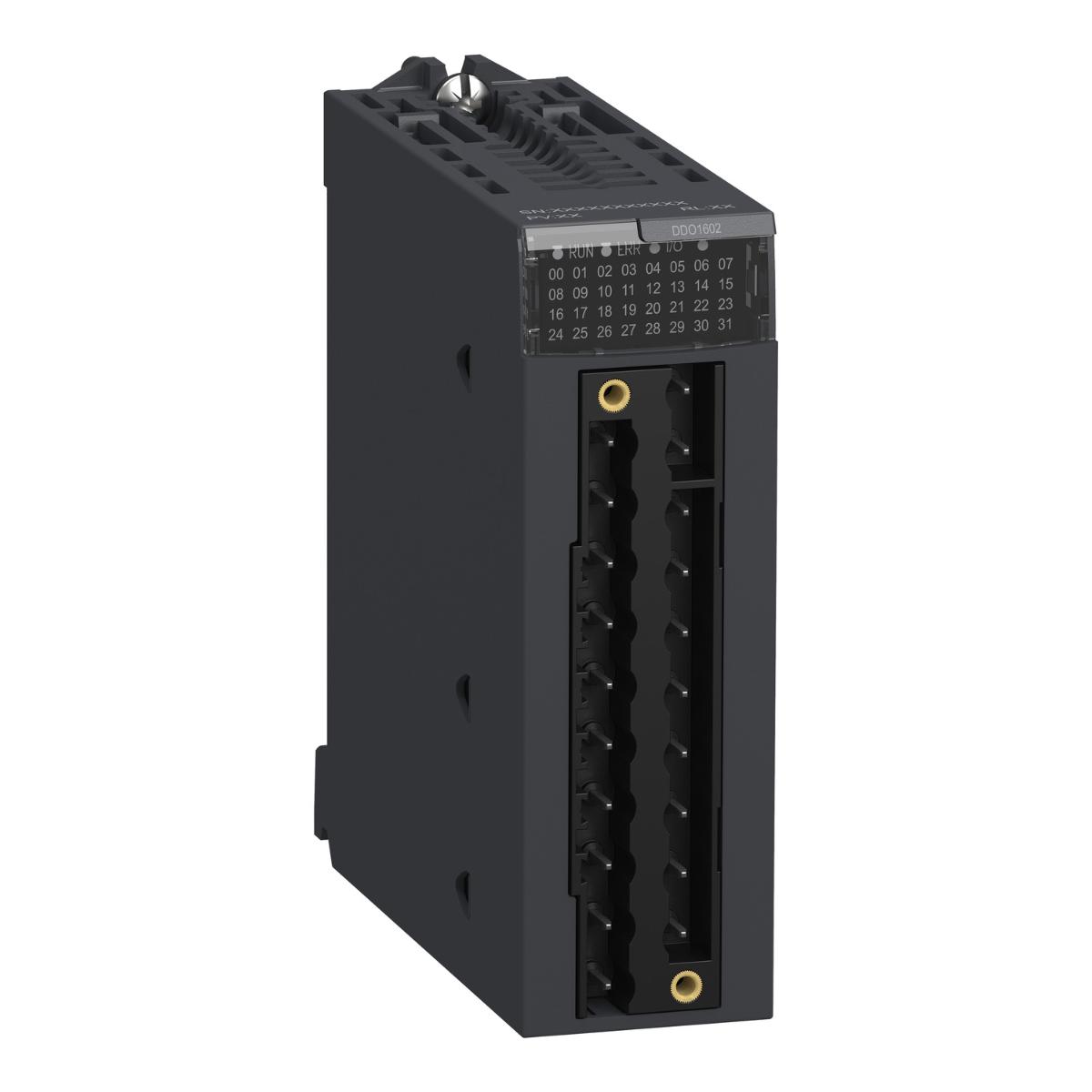

Schneider Electric BMXDDO1602 discrete output module, Modicon X80, 16 transistor outputs, 24V DC positive
Code: SCHBMXDDO1602
Unit of measure:
EACH
Description
DISCRETE OUTPUT MODULE M340 16O 24VDC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Output overvoltage protection | with transil diode |
| Typical current consumption | 79 mA at 3.3 V DC |
| Load impedance ohmic | > 48 Ohm |
| Ambient air temperature for operation | 0-60 °C |
| Discrete output logic | positive |
| Discrete output voltage | 24 V 19...30 V DC |
| Reverse polarity protection | reverse mounted diode |
| Switching frequency | 0.5/LI² Hz |
| Directives | 2014/30/EU - electromagnetic compatibility |
| Supplier Code | BMXDDO1602 |
| MTBF reliability | 410000 H |
| Maximum voltage drop | <1.2 V at state 1 |
| Ambient air temperature for storage | -40-85 °C |
| Discrete output type | solid state |
| Output short-circuit protection | with 2 A external fuse |
| Maximum leakage current | 0.5 mA at state 0 |
| Power dissipation in W | 4 W |
| Vibration resistance | 3 gn |
| Operating altitude | 2000...5000 m with derating factor |
| Status LED | 1 LED (red) module I/O |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute- output/internal logic |
| Voltage detection threshold | > 18 V DC preactuator at state 0 |
| Protection type | overvoltage protection |
| Shock resistance | 30 gn |
| Discrete output number | 16 conforming to EN/IEC 61131-2 |
| Maximum current per module | 10 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| IP degree of protection | IP20 |
| Range | Modicon X80 |
| Maximum tungsten load | 6 W |
| Brand Name | Schneider Electric |
| Discrete output current | 0.5 A |
| Paralleling of outputs | yes : 2 maximum |
| Current per channel | 0.625 A |
| Output overload protection | with current limiter |
| Net weight | 0.12 kg |
| Response time on output | 1.2 ms |
| Product or component type | discrete output module |
