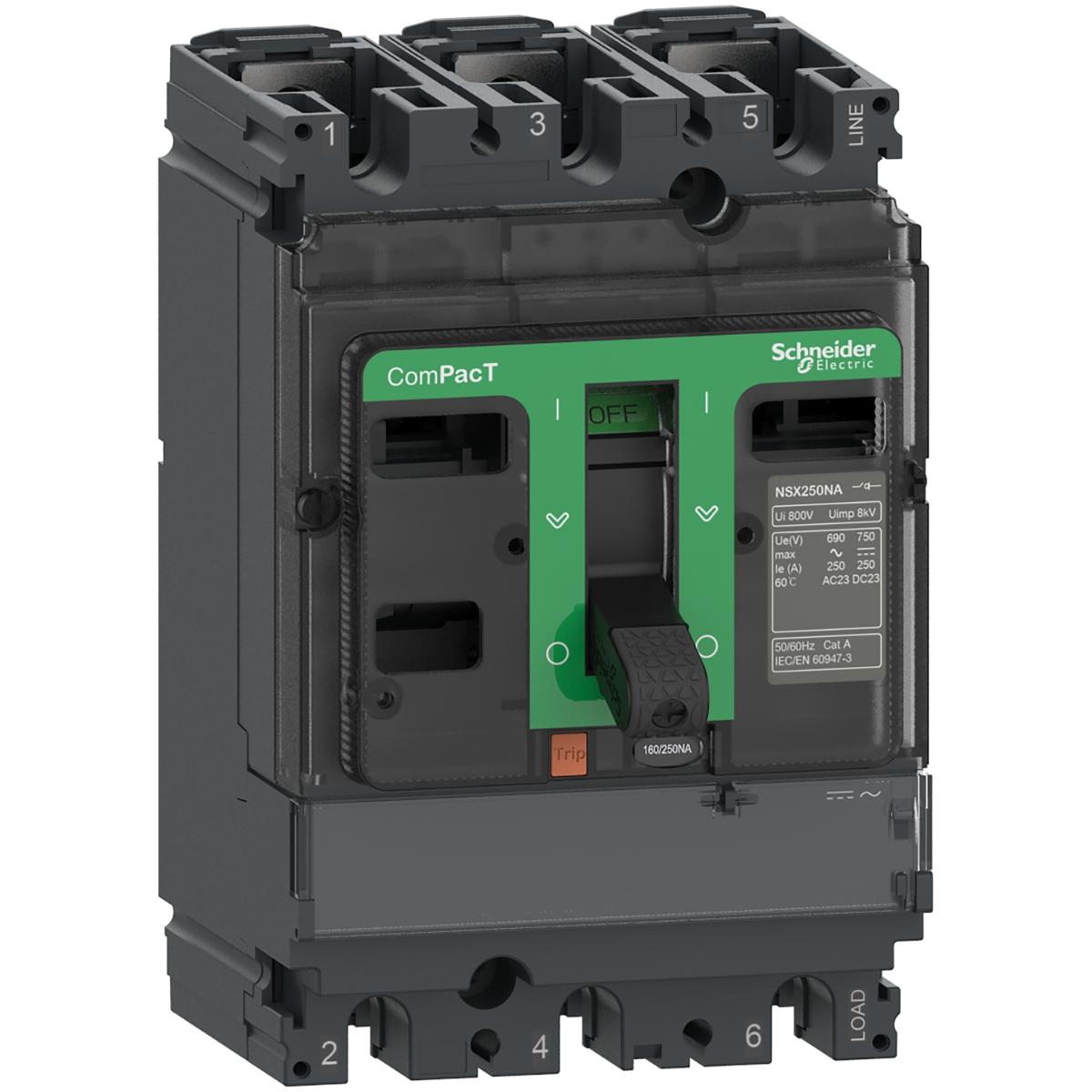

Schneider Electric C103100S Switch disconnector, ComPacT NSX100NA, 3 poles, fixed, thermal current Ith 100A
Code: SCHC103100S
Unit of measure:
EACH
Description
SWITCH NSX100NA AC 3P 100A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Icm] rated short-circuit making capacity | 2.6 kA switch-disconnector alone |
| Contact position indicator | yes |
| Visible break | no |
| Downside connection | front |
| Suitability for isolation | yes conforming to EN/IEC 60947-3 |
| [In] rated current | 100 A |
| Depth | 86mm |
| Ambient air temperature for operation | -25-70 °C |
| Connection pitch | 35mm |
| Mounting support | backplate |
| Mounting mode | fixed |
| Breaking capacity code | NA |
| [Ith] conventional free air thermal current | 100 A at 50 °C |
| Supplier Code | C103100S |
| Mechanical durability | 50000 cycles |
| Ambient air temperature for storage | -50-85 °C |
| Height | 161mm |
| Poles description | 3P |
| Network frequency | 50/60 Hz |
| Width | 105mm |
| [Icw] rated short-time withstand current | 0.69 kA during 20 s |
| Device short name | NSX100NA |
| Compatibility code | NSX100 |
| Network type | DC |
| Device application | distribution |
| [Ue] rated operational voltage | 250 V DC 1 pole |
| Control type | toggle |
| IP degree of protection | IP40 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| Range | ComPacT new generation |
| Standards | EN/IEC 60947-3 |
| Brand Name | Schneider Electric |
| Electrical shock protection class | class II |
| Electrical durability | AC-23A: 35000 cycles 440 V AC 50/60 Hz In/2 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Upside connection | front |
| Product name | ComPacT NSX new generation |
| Utilisation category | DC-23A |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Net weight | 1.8 kg |
| IK degree of protection | IK07 conforming to IEC 62262 |
| [Ie] rated operational current | DC-23A: 100 A DC 250 V 1 pole |
| Product or component type | switch disconnector |
