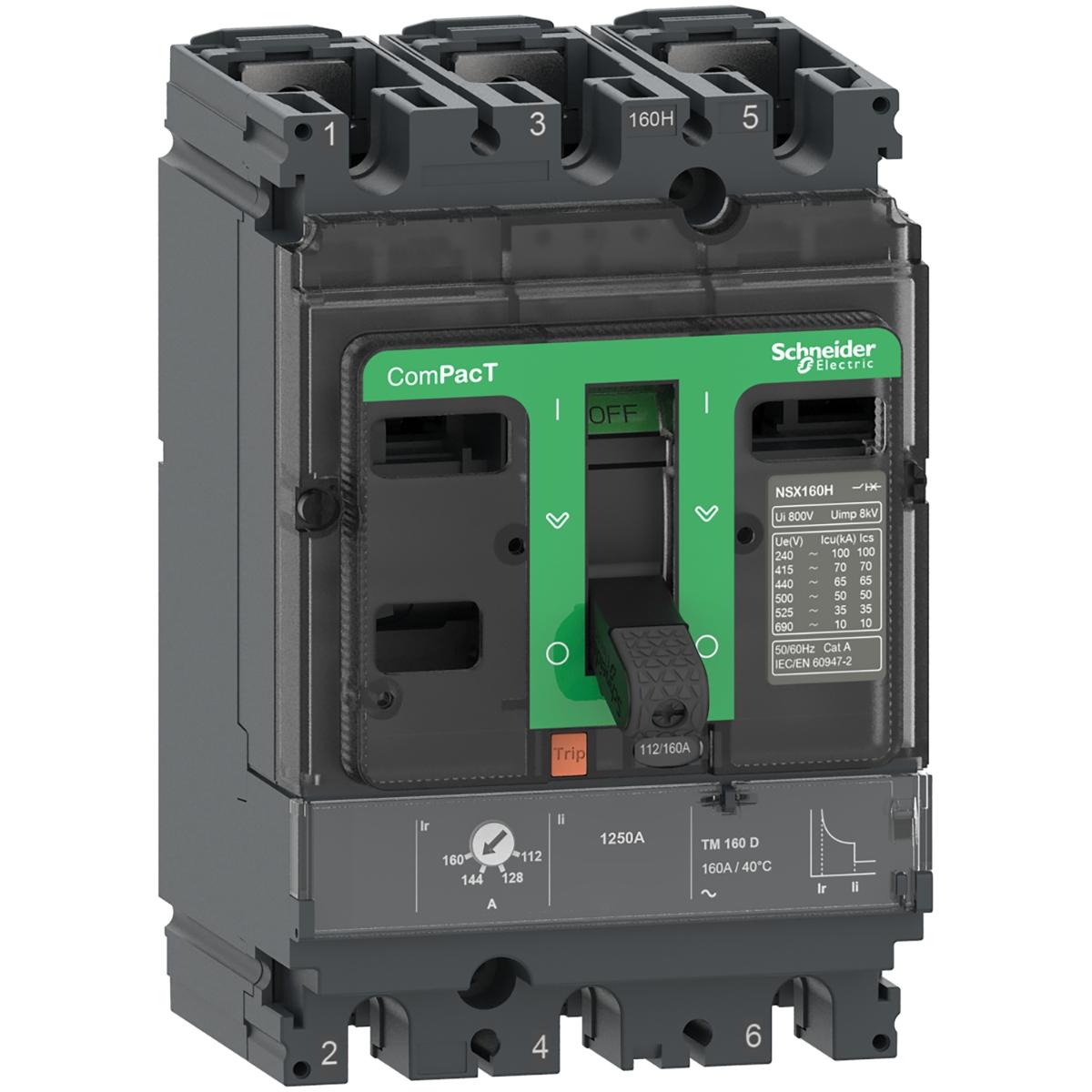

Schneider Electric C10B3TM063 Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 63A

Code: SCHC10B3TM063

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric C10B3TM063 Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 63A

This ComPacT NSX100B is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100B is part of Schneider Electric EcoStruxure Power architecture.

Features:
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
• Ergonomic new toggle for easier breaker manual operation

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	0-95 %
Long time pick-up adjustment type Ir	adjustable
Downside connection	front
Ambient air temperature for operation	-25-70 °C
Instantaneous pick-up adjustment type Ii	fixed
[Ics] rated service breaking capacity	7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Earth-leakage protection	without
Mounting mode	fixed
Breaking capacity code	B 25 kA 415 V AC
Supplier Code	C10B3TM063
Ambient air temperature for storage	-50-85 °C
Trip unit name	TM-D
Network frequency	50/60 Hz
Trip unit protection functions	LI
Protection type	I : for short-circuit protection (magnetic)
Network type	AC
Control type	toggle
IP degree of protection	IP40 conforming to IEC 60529
Range	ComPacT new generation
Overvoltage category	class II
Long time pick-up adjustment range	0.7...1 x In
Electrical shock protection class	class II
Electrical durability	20000 cycles at 690 V In/2
Mounting position	flat on the back
Pollution degree	3 conforming to IEC 60664-1
Trip unit rating	63-63 A at 40 °C
Suitability for isolation	yes conforming to EN/IEC 60947-2
[In] rated current	63 A at 40 °C
Depth	86mm
Connection pitch	35mm
Mounting support	backplate
Instantaneous pick-up adjustment range	500 A
Mechanical durability	50000 cycles
Breaking capacity	15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Height	161mm
Poles description	3P
Width	105mm
Operating altitude	2000 m...5000 m with derating
Protected poles description	3D
Device short name	NSX100B
Compatibility code	NSX100
Trip unit technology	thermal-magnetic
Device application	distribution
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Ui] rated insulation voltage	800 V AC 50/60 Hz
Standards	EN/IEC 60947-2
Brand Name	Schneider Electric
[tr] long-time delay adjustment range	15-15 s at 6 x Ir
[Uimp] rated impulse withstand voltage	8 kV
Upside connection	front
Power dissipation per pole	8.61 W
Product name	ComPacT NSX new generation
Utilisation category	category A
Net weight	2.05 kg
Long time delay adjustment type	fixed
IK degree of protection	IK07 conforming to IEC 62262
Number of slots	5 slot(s)
Product or component type	circuit breaker
