MCCB NSX100N AC-DC 1P 25A TMD TRIP | Circuit Breakers | Electrical Distribution | All Categories

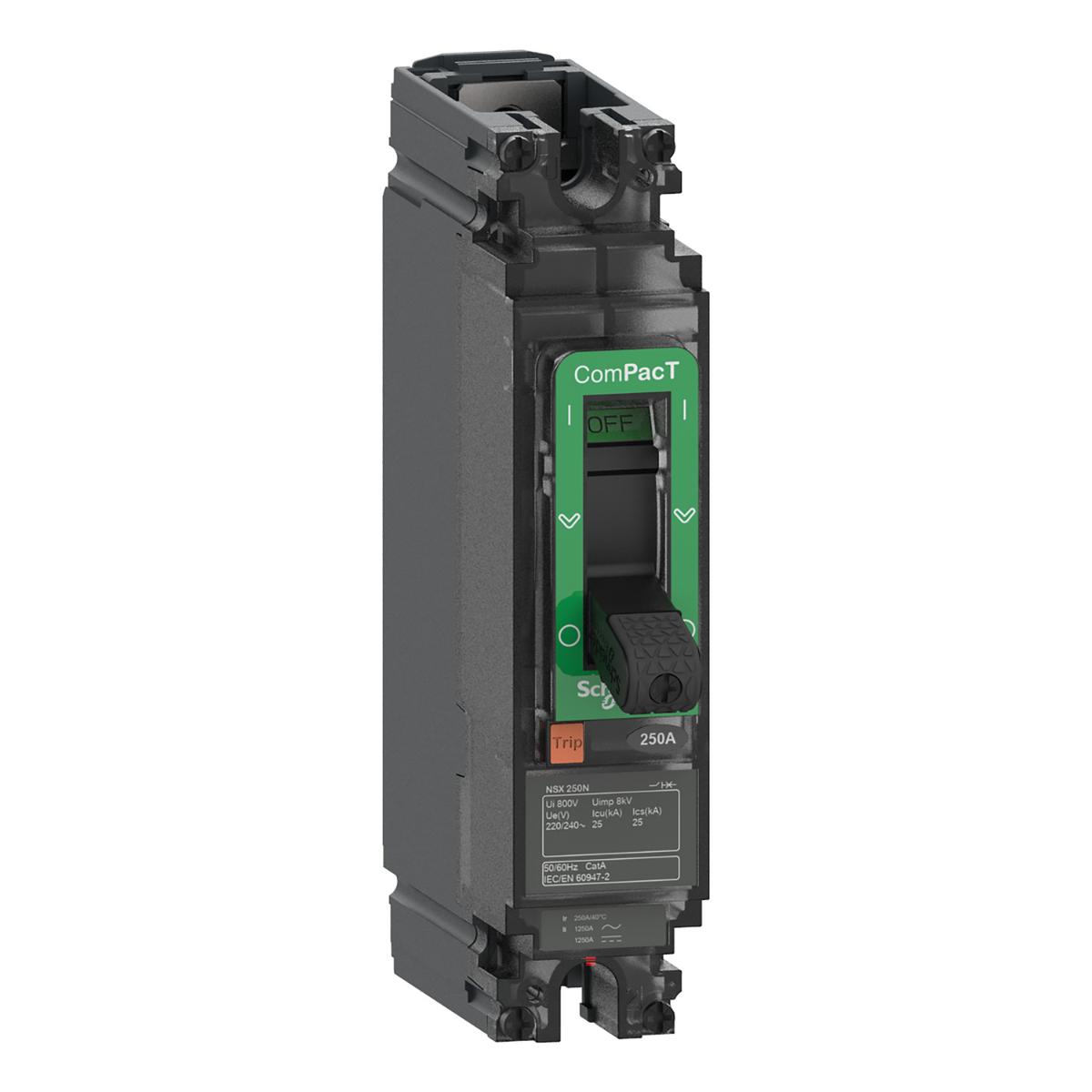

Schneider Electric C10N1TM025 Circuit breaker, ComPacT NSX100N AC/DC, 25kA/240VAC, 1 pole, TMD trip unit 25A

Code: SCHC10N1TM025

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric C10N1TM025 Circuit breaker, ComPacT NSX100N AC/DC, 25kA/240VAC, 1 pole, TMD trip unit 25A

ComPacT NSX 100N is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 25A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Features:
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
• Ergonomic new toggle for easier breaker manual operation

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	0-95 %
Long time pick-up adjustment type Ir	fixed
Downside connection	front
Ambient air temperature for operation	-25-70 °C
Instantaneous pick-up adjustment type Ii	fixed
[Ics] rated service breaking capacity	50 kA at 250 V DC conforming to IEC 60947-2
Earth-leakage protection	without
Mounting mode	fixed
Breaking capacity code	N 25 kA 240 V AC
Supplier Code	C10N1TM025
Ambient air temperature for storage	-50-85 °C
Trip unit name	TM-D
Network frequency	50/60 Hz
Trip unit protection functions	LI
360Image	https://visuals.se.com/C25N1TM250-360VH/20230420T0744/360
Protection type	I : for short-circuit protection (magnetic)
Network type	DC
Control type	toggle
IP degree of protection	IP40 conforming to IEC 60529
Range	ComPacT NSX100...250 new generation
Overvoltage category	class II
Long time pick-up adjustment range	1 x In
Electrical shock protection class	class II
Electrical durability	10000 cycles at 277 V In
1	https://visuals.se.com/C25N1TM250-360VH/20230420T0744/360
Mounting position	flat on the back
Pollution degree	3 conforming to IEC 60664-1
Trip unit rating	25-25 A at 40 °C
Suitability for isolation	yes conforming to EN/IEC 60947-2
[In] rated current	25 A at 40 °C
Depth	86mm
Connection pitch	35mm
Mounting support	backplate
Instantaneous pick-up adjustment range	300 A
Mechanical durability	20000 cycles
Breaking capacity	25 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Height	161mm
Poles description	1P
Width	35mm
Operating altitude	2000 m...5000 m with derating
Protected poles description	1D
Device short name	NSX100N
Compatibility code	NSX100
Trip unit technology	thermal-magnetic
Device application	distribution
[Ue] rated operational voltage	250 V DC 50/60 Hz
[Ui] rated insulation voltage	750 V AC 50/60 Hz conforming to IEC 60947-2
Standards	EN/IEC 60947-2
Brand Name	Schneider Electric
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Upside connection	front
Power dissipation per pole	4.01 W
Product name	ComPacT NSX new generation
Utilisation category	category A
Net weight	0.7 kg
Long time delay adjustment type	fixed
IK degree of protection	IK07 conforming to IEC 62262
Product or component type	circuit breaker
