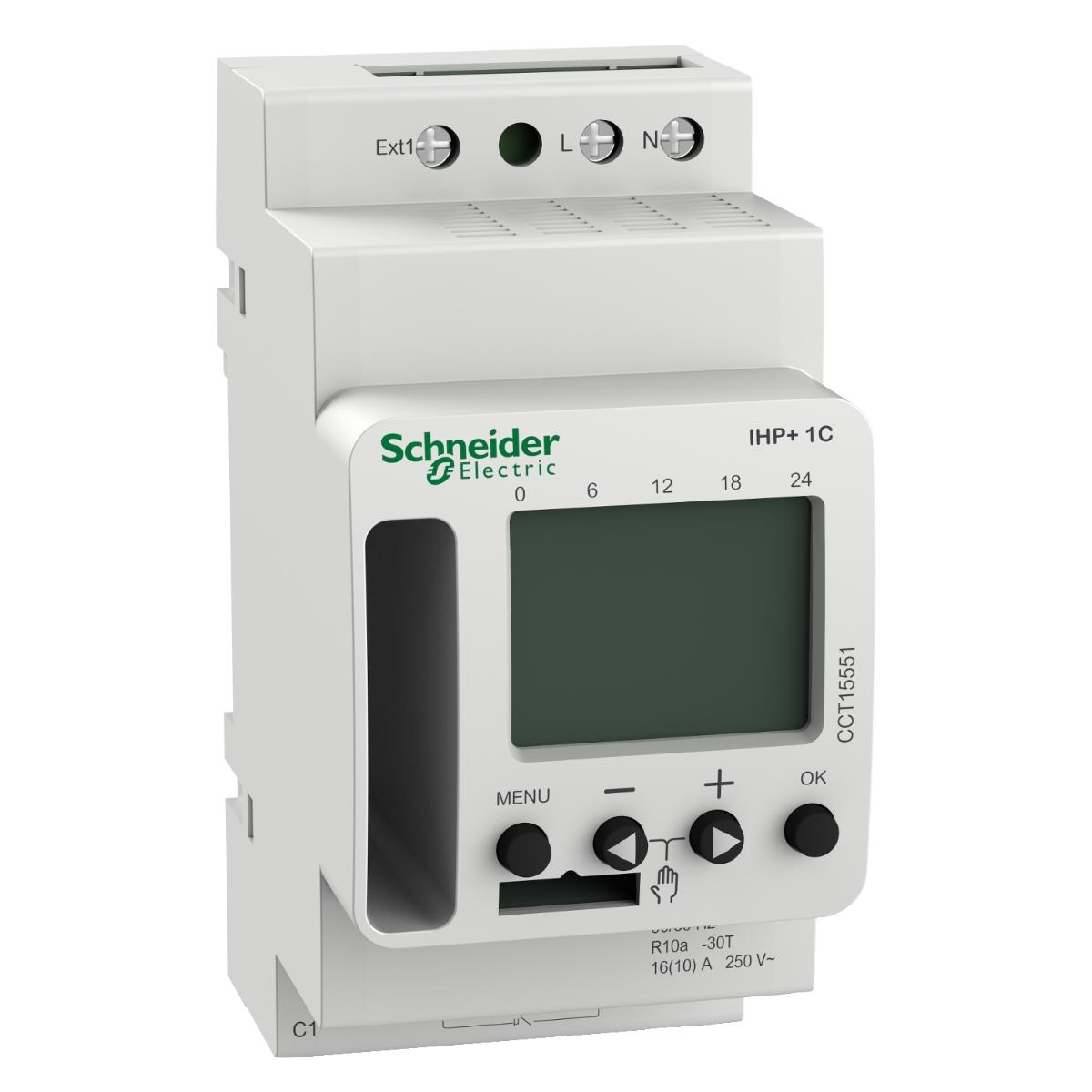

Schneider Electric CCT15551 Acti9 IHP+ 1C (24h/7d) SMART with programmable time switch
Code: SCHCCT15551
Unit of measure:
EACH
Description
IHP 1C SMARTW
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 90-90 %- non-condensing |
| Maximum number of switchings | 84 |
| Updated by | none |
| Depth | 66.7mm |
| Ambient air temperature for operation | -30-55 °C |
| Minimum switching current | 100 mA 24 V AC/DC |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Function | pulse programming- random function- external input for override |
| Accuracy | +/- 0.25 s/day 25 °C |
| Supplier Code | CCT15551 |
| Output type | dry contact |
| Ambient air temperature for storage | -30-70 °C |
| Load type | < 2 W LED lamp: 25 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 |
| Cycle duration | 24 hours + 7 days |
| Height | 92.6mm |
| Width | 45mm |
| Number of channels | 1 |
| Electrical insulation class | class II |
| Display type | backlit LCD |
| Device short name | IHP+ |
| Backup time | 10 years time and program saving |
| Function available | switch preselection |
| Information displayed | operating time counter |
| Contacts type and composition | C/O |
| Device application | building |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Marking | CE |
| IP degree of protection | IP20 |
| Range | Acti9 |
| Overvoltage category | class 3 |
| Standards | EN 60730-2-7:2010 |
| User language | German |
| Brand Name | Schneider Electric |
| Time changeover | automatic |
| Product name | Acti9 IHP |
| Control button type | 4 push-buttons |
| Minimum interval duration | 1 s |
| Provided equipment | memory stick |
| Maximum power consumption in W | 0.5 W standby |
| Net weight | 115 g |
| Type of setting | weekly programming |
| Product or component type | programmable digital time switch |
| Connections - terminals | 1 x 2.5-2.5mm² screw terminals solid or flexible with sleeve |
| Absence for holidays | yes |
