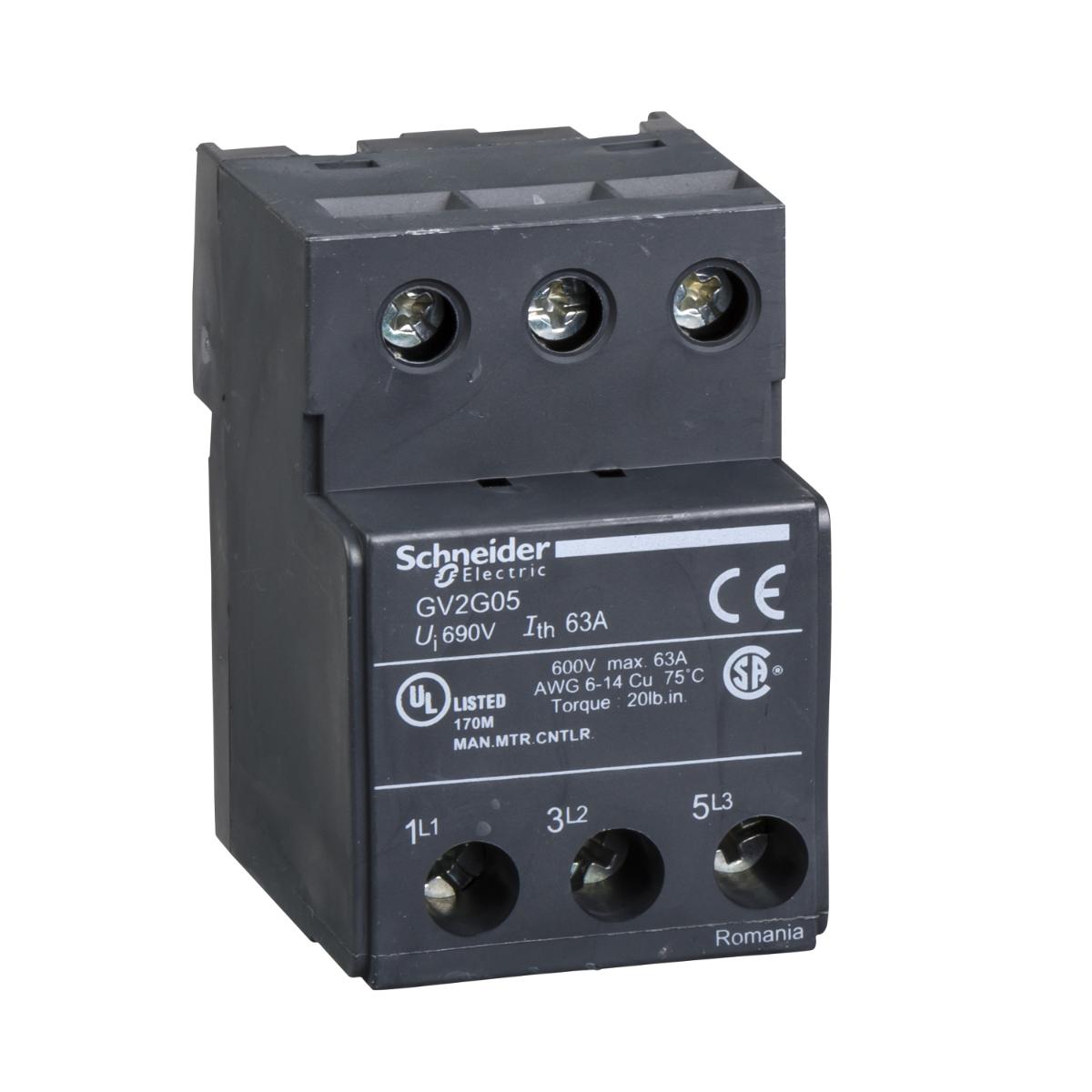

Schneider Electric GV2G05 TeSys Deca & TeSys U Terminal Block, TeSys D, 3P, for GV1L3
Code: SCHGV2G05
Unit of measure:
EACH
Description
TERMINAL BLOCK FOR GV1 L3
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Device short name | GV2G |
| Compatibility code | GV2G |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Range | TeSys K |
| Accessory / separate part category | connection accessory |
| Brand Name | Schneider Electric |
| Range compatibility | TeSys U |
| Supplier ref | GV2G05 |
| Product name | FT |
| Supplier Code | GV2G05 |
| Tightening torque | 2.2-2.2 N.m - on connector |
| Mounting location | 35mm DIN rail |
| Net weight | 0.115 kg |
| Poles description | 3P |
| [Ie] rated operational current | 63 A |
| Connections - terminals | screw clamp terminals 1 cable(s) 1.5-16mm² flexible without cable end |
| Product or component type | terminal block |
