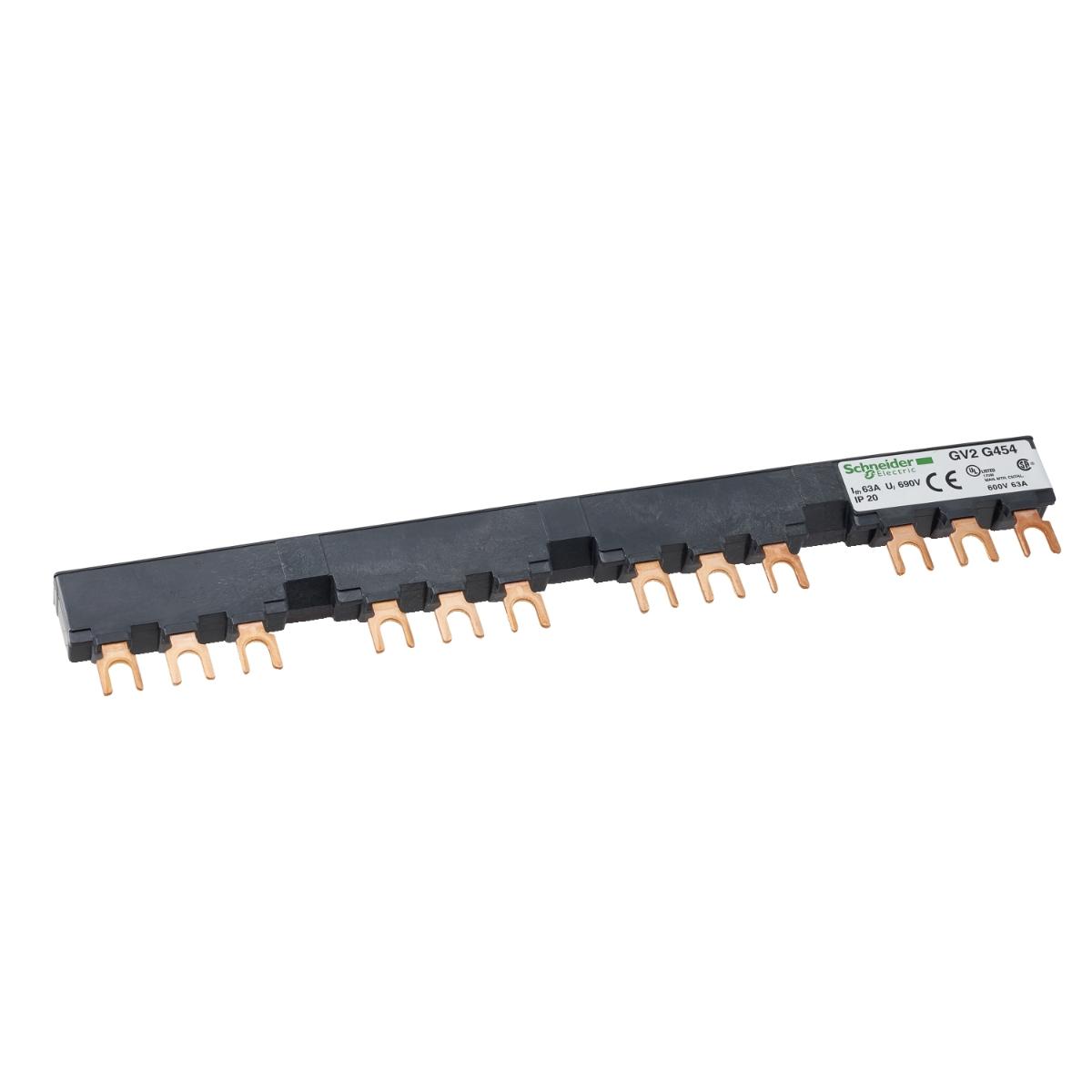

Schneider Electric GV2G454 Linergy FT Comb busbar, TeSys D, 63 A, 4 tap-offs, 54 mm pitch
Code: SCHGV2G454
Unit of measure:
EACH
Description
Busbar
Brand Name: Schneider
Range: GV2L ,GV2LE
GV2ME
GV2P
TeSys D
TeSys U
GV2RT
Number of Poles: 3
Current: 63 A
Voltage: 690 VAC
4 tap-offs
54 mm pitch
Device name: GV2
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Device short name | GV2G |
| Compatibility code | GV2G |
| Number of tap-offs | 4 |
| [Ui] rated insulation voltage | 690 V |
| Range | TeSys GV2 |
| Connection pitch | 54mm |
| Accessory / separate part category | connection accessory |
| Brand Name | Schneider Electric |
| Item Name | Busbar |
| Range compatibility | TeSys K |
| Product name | FT |
| Length | 206mm |
| [Ith] conventional free air thermal current | 63 A |
| Supplier Code | GV2G454 |
| Voltage | 690 VAC |
| UNSPCS | 39121117 |
| Mounting location | on terminal |
| Net weight | 0.085 kg |
| Number of Poles | 3 |
| Poles description | 3P |
| Current | 63A |
| Product or component type | comb busbar |
