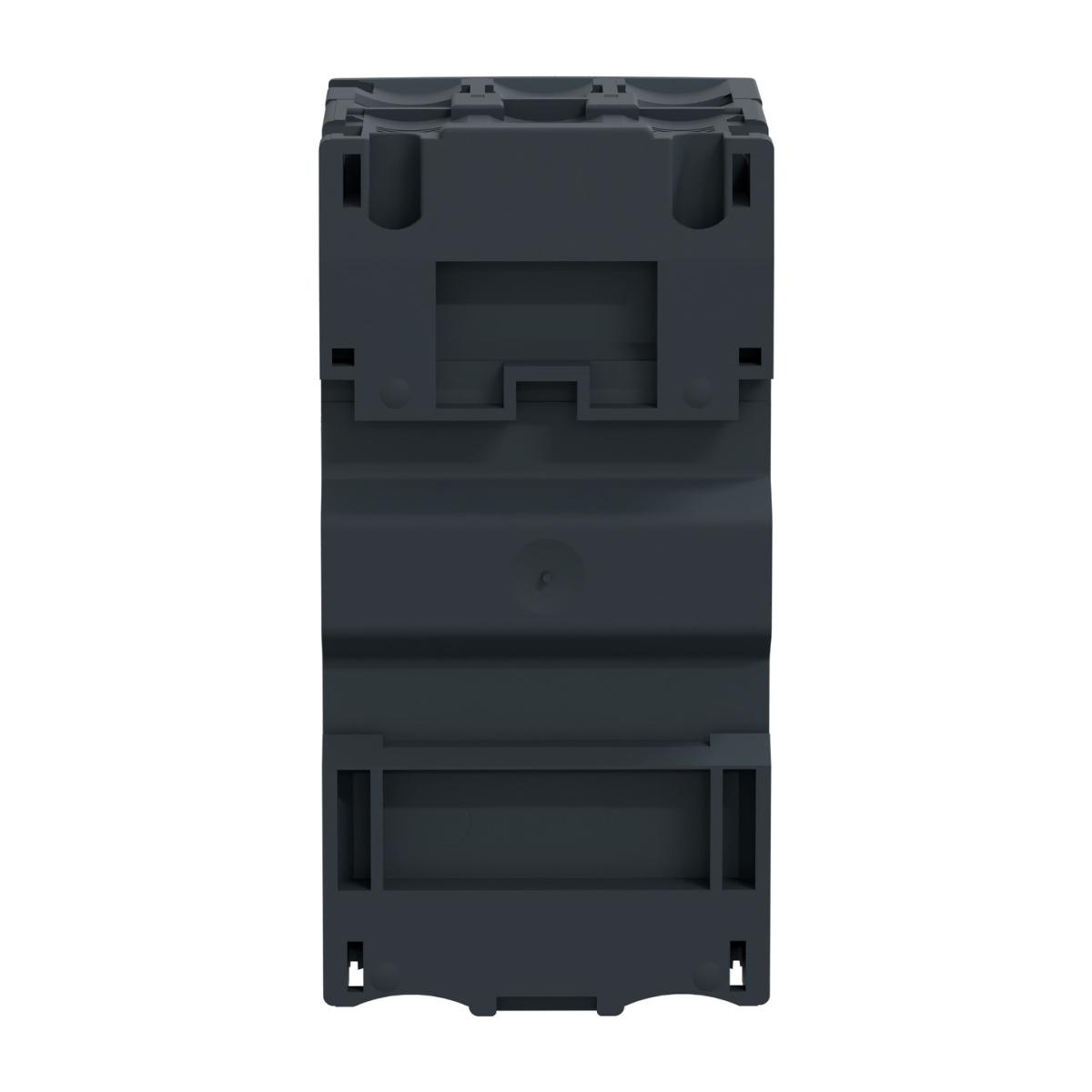

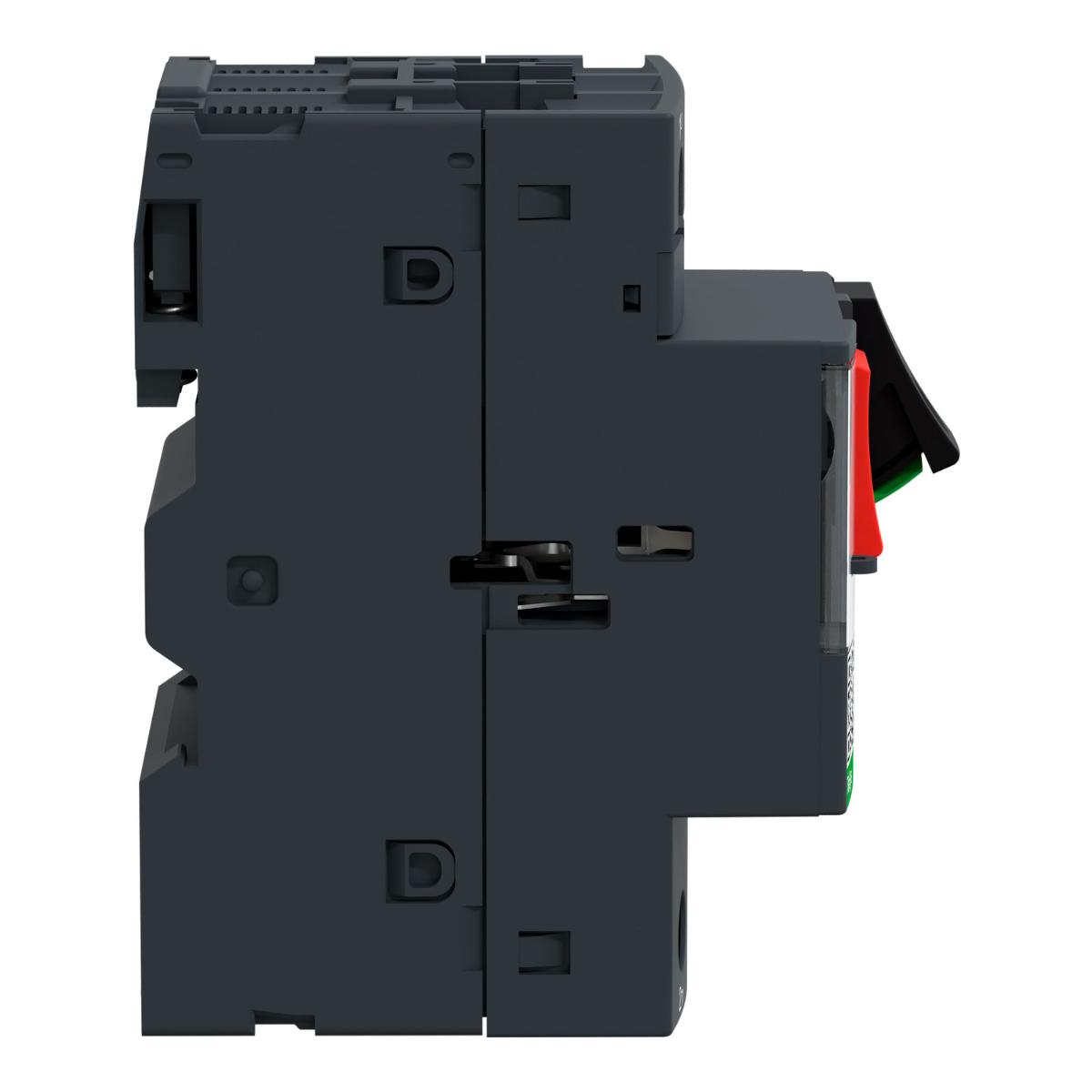

Schneider GV2ME04 Thermal Magnetic Motor Protection Circuit Breaker, 690VAC, 0.4-0.63A, 100kA, Screw Clamp Connection, With Push Button Handle
Code: SCHGV2ME04
Unit of measure:
EACH
Description
Motor Protection Circuit Breaker
Brand Name: Schneider
Type: Thermal Magnetic
Range: TeSys GV2
Voltage: 690 VAC
Current Type: AC
Current: 0.4 - 0.63 A
Power Rating: 0.37 kW
Number of Poles: 3
Break Strength: 100 kA
Frequency Rating: 50/60 Hz
Connection Type: Screw Clamp
Push Button Handle
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Power Rating | 0.37 kW |
| Break Strength | 100 kA |
| Standard | CCC, CSA, UL Listed |
| Pole Configuration | 3 Pole |
| Range | TeSys GV2 |
| Frequency Rating | 50/60 Hz |
| Brand Name | Schneider Electric |
| Item Name | Motor Protection Circuit Breaker |
| EAN/UPC | 3389110343014 |
| Type | Thermal Magnetic |
| Current Type | AC |
| Supplier ref | GV2ME04 |
| Supplier Code | GV2ME04 |
| Voltage | 690 VAC |
| Connection Type | Screw Clamp |
| Number of Poles | 3 |
| Current | 0.4 - 0.63A |
