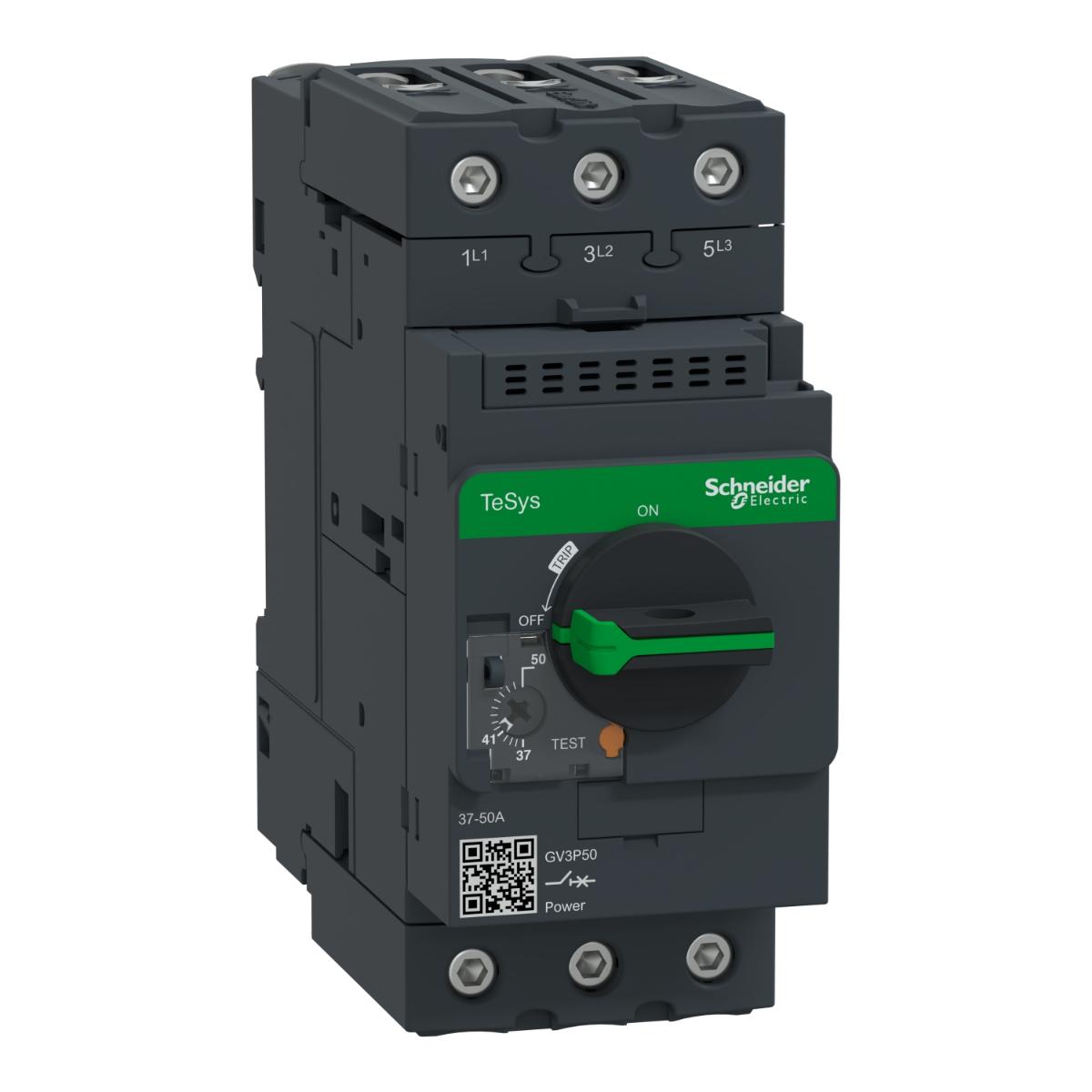

Schneider Electric GV3P50 Motor circuit breaker,TeSys Deca frame 3,3P,37-50A,thermal magnetic,EverLink terminals, Dark Grey
Code: SCHGV3P50
Unit of measure:
EACH
Description
MOTOR CIRCUIT BREAKER TH-MAG 37-50A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Maximum operating rate | 25 cyc/h |
| Ambient air temperature for operation | -20-60 °C |
| [Ith] conventional free air thermal current | 50 A conforming to IEC 60947-4-1 |
| Supplier Code | GV3P50 |
| Ambient air temperature for storage | -40-80 °C |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Network type | AC |
| Fixing mode | panel: screwed (with 3 x M4 screws) |
| Motor power kW | 45-45 kW at 690 V AC 50/60 Hz |
| Magnetic tripping current | 700-700 A |
| Control type | rotary handle |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Range | TeSys Deca |
| Electrical durability | 50000 cycles for AC-3 at 415 V In |
| Mounting position | horizontal |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Thermal protection adjustment range | 37-50 A conforming to IEC 60947-4-1 |
| [Ics] rated service short-circuit breaking capacity | 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | yes conforming to IEC 60947-1 |
| [In] rated current | 50 A |
| Depth | 136mm |
| Colour | Dark Grey |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Mechanical durability | 50000 cycles |
| Climatic withstand | conforming to IACS E10 |
| Direct connector | without |
| Breaking capacity | 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Height | 132mm |
| Poles description | 3P |
| Width | 55mm |
| Operating altitude | 3000 m |
| Device short name | GV3P |
| Phase failure sensitivity | yes conforming to IEC 60947-4-1 |
| Compatibility code | GV3P |
| Trip unit technology | thermal-magnetic |
| Mechanical robustness | shocks: 30 Gn for 11 ms contactor closed |
| Device application | motor protection |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Standards | IEC/EN 60335-2-40:Annex JJ |
| Product certifications | ATEX |
| Brand Name | Schneider Electric |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation per pole | 8 W |
| Product name | TeSys GV3 |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Rated duty | continuous conforming to IEC 60947-4-1 |
| Net weight | 0.96 kg |
| IK degree of protection | IK09 enclosure |
| Product or component type | motor circuit breaker |
