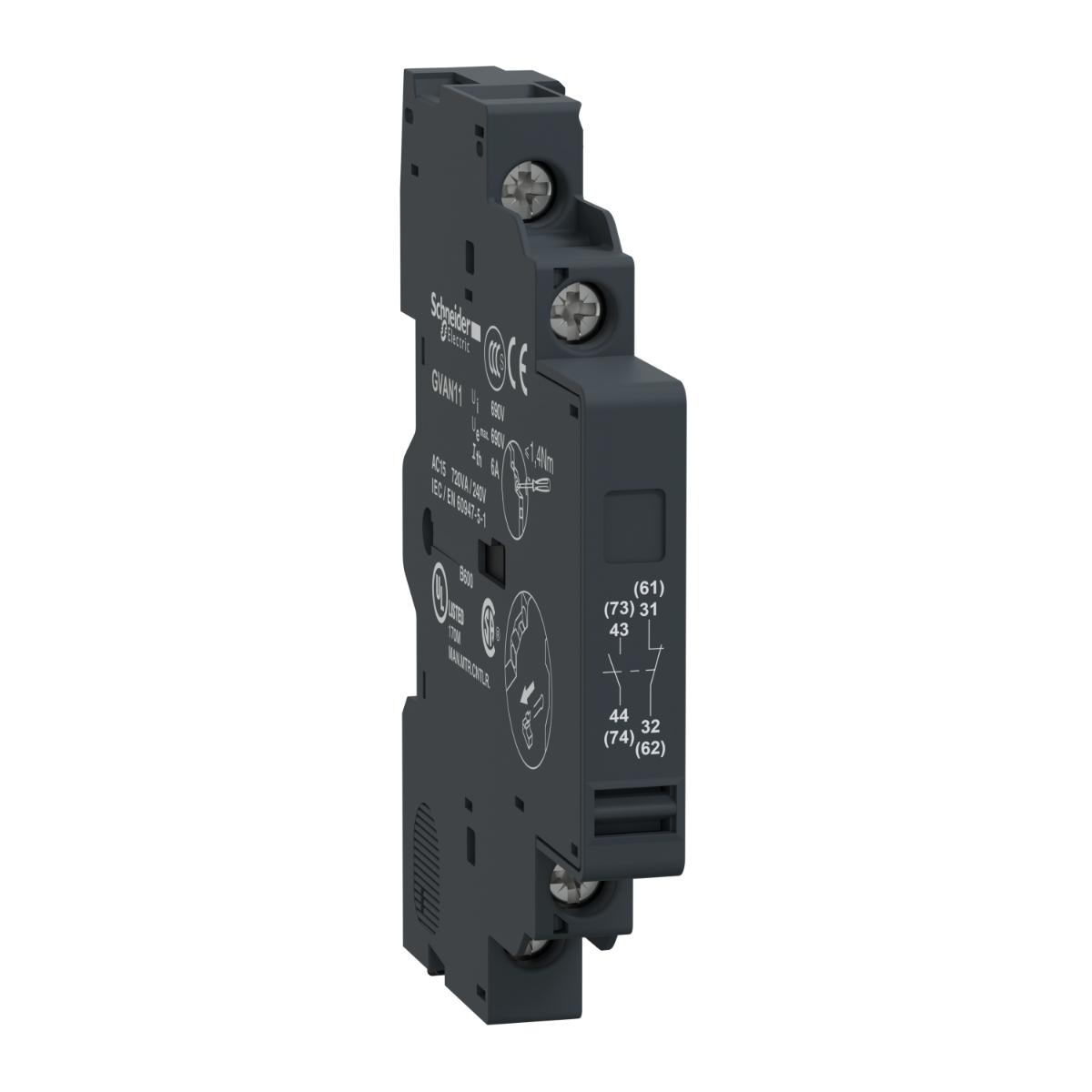

Schneider Electric GVAN11 Auxiliary Contact Block, TeSys GV2, TeSys Deca,1NO+1NC,left side mounting, Dark Grey

Code: SCHGVAN11

Brand: Schneider

Unit of measure: EACH

Description

Schneider GVAN11 Auxiliary Contact Block, TeSys GV2, TeSys Deca,1NO+1NC,left side mounting

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Features:
• Free of Substances of Very High Concern above the threshold
•
•
•
•
•
•
•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Mount	Left Side
Depth	66mm
Colour	Dark Grey
Minimum switching current	5 mA
Pole contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	6 A
Supplier Code	GVAN11
Mechanical durability	100000 cycles
Voltage	690V
Environmental characteristic	normal environment
GrosWeight	46.000 g
Height	89mm
Minimum switching voltage	17 V
Width	9.3mm
YoutubeVideo1	https://www.youtube.com/embed/0Uhrz4jPtPk?si=oKQM-NRJzcAGAo3h
360Image	https://visuals.se.com/GVAN11_Image-StopMotion/20220412T1215/360
Warranty	18 months
Device short name	GVAN
Compatibility code	GVAN
Protection type	gG fuse 10 A
Product compatibility	GV2P
[Ue] rated operational voltage	24...240 V DC
Rated operational power in VA	414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles
[Ui] rated insulation voltage	690 V conforming to IEC 60947-1
Range	TeSys GV2
Product certifications	UKCA
Brand Name	Schneider Electric
Item Name	Contact Block
Length	9.000 cm
Volume	94.500 cm3
Tightening torque	1.4 N.m - on screw clamp terminals
Mounting location	left side
Net weight	0.05 kg
Rated operational power in W	140 W at 24 V DC-13 - electrical durability: 100000 cycles
Product or component type	auxiliary contact block
