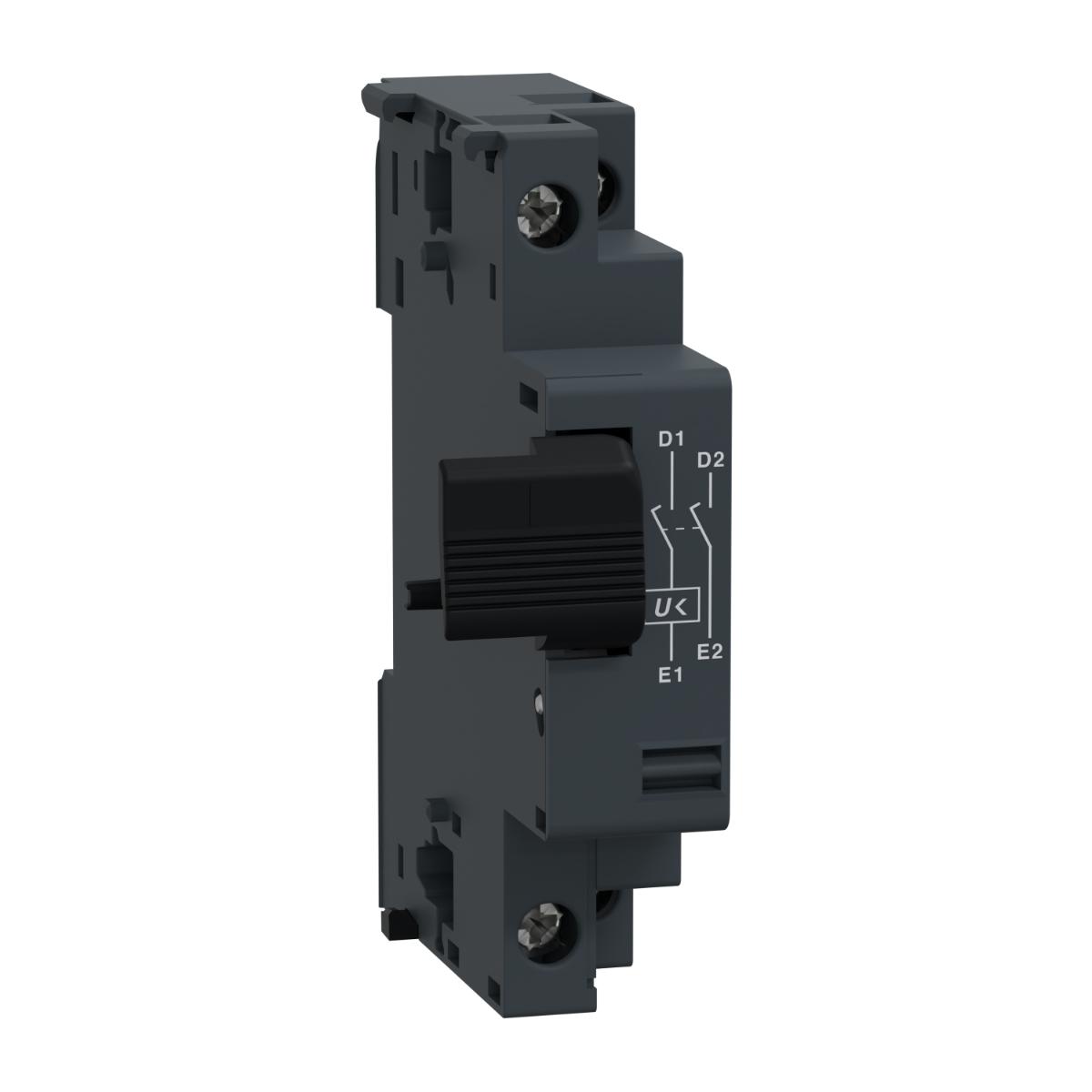

Schneider Electric GVAX385 Undervoltage release (MN),TeSys Deca frame 2,380-400V AC 50Hz/440V AC 60Hz,safety device for GV2ME, Dark Grey

Code: SCHGVAX385

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric GVAX385 Undervoltage release (MN),TeSys Deca frame 2,380-400V AC 50Hz/440V AC 60Hz,safety device for GV2ME, Dark Grey

TeSys GV electrical trip, MN undervoltage release, 380-400V AC 50Hz / 440V AC 60Hz, for motor circuit breakers GV2ME used in safety-related systems. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, INRS, VDE 0113), Sustainability compliant.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Hold-in power consumption in W	1.1-1.1 W
Depth	66mm
Colour	Dark Grey
Supplier Code	GVAX385
Mechanical durability	30000 cycles
Height	89mm
Width	18mm
YoutubeVideo1	https://www.youtube.com/embed/0Uhrz4jPtPk?si=oKQM-NRJzcAGAo3h
Operating time	10...15 ms conforming to IEC 60947-1
360Image	https://visuals.se.com/GVAX385_Image-StopMotion/20220103T1452/360
[Uc] control circuit voltage	380...400 V AC 50 Hz
Inrush power in W	8 W
Device short name	GVAX
Inrush power in VA	12-12 VA AC
Compatibility code	GVAX
Hold-in power consumption in VA	3.5-3.5 VA AC
Quantity per set	set of 10
[Ui] rated insulation voltage	600 V AC conforming to CSA C22.2 No 60947-4-1
Range	TeSys Deca
Control circuit voltage limits	0.85...1.1 Un
Brand Name	Schneider Electric
On-load factor	100 %
Range compatibility	TeSys Deca
Threshold tripping voltage	0.7...0.35 Un
Tightening torque	< 1.4 N.m on screw clamp terminals
Net weight	0.105 kg
Product or component type	safety undervoltage trip
Connections - terminals	screw clamp terminals 2 cable(s) 0.75-2.5mm²flexible without cable end
