Description

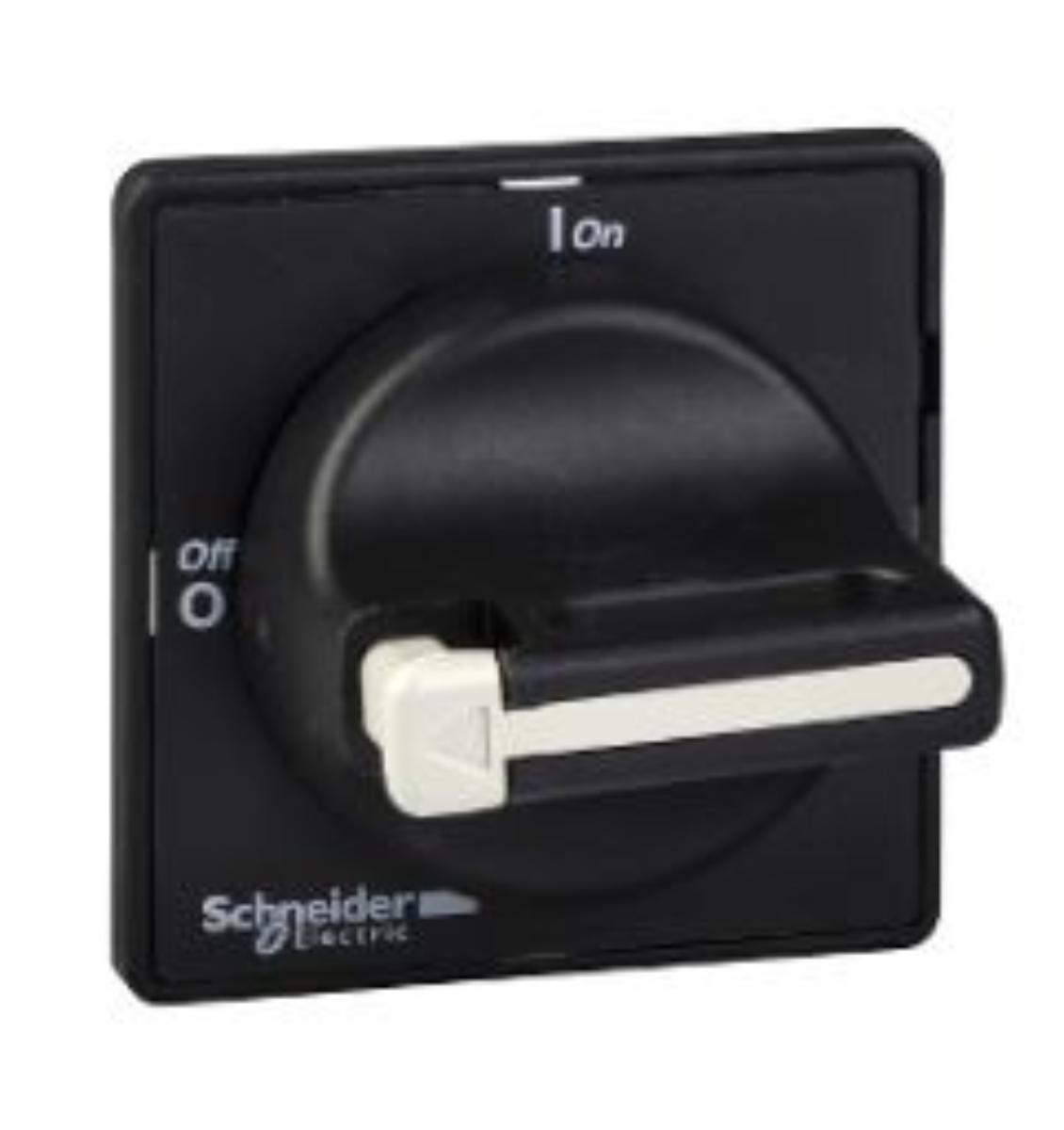

Schneider Electric KAD1PZ Front and Black rotary handle, TeSys Mini-Vario, 1 to 3 padlocking
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a black handle and black front plate 60x60mm, for main switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Environmental product (RoHS/REACh).
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Device short name | KAD1 |
| Compatibility code | KAD |
| Product compatibility | VN20 |
| Fixing mode | hole- with diameter 22.5mm |
| Marking | 0 - 1 |
| IP degree of protection | IP65 |
| Range | TeSys |
| Brand Name | Schneider Electric |
| Rotary handle padlocking | 1 to 3 padlocks 4-8mm |
| Base dimension | 60 x 60mm |
| Supplier Code | KAD1PZ |
| Net weight | 0.082 kg |
| Height | 60mm |
| Handle front plate colour | black |
| Width | 60mm |
| Handle colour | black |
| Product or component type | rotary handle |
