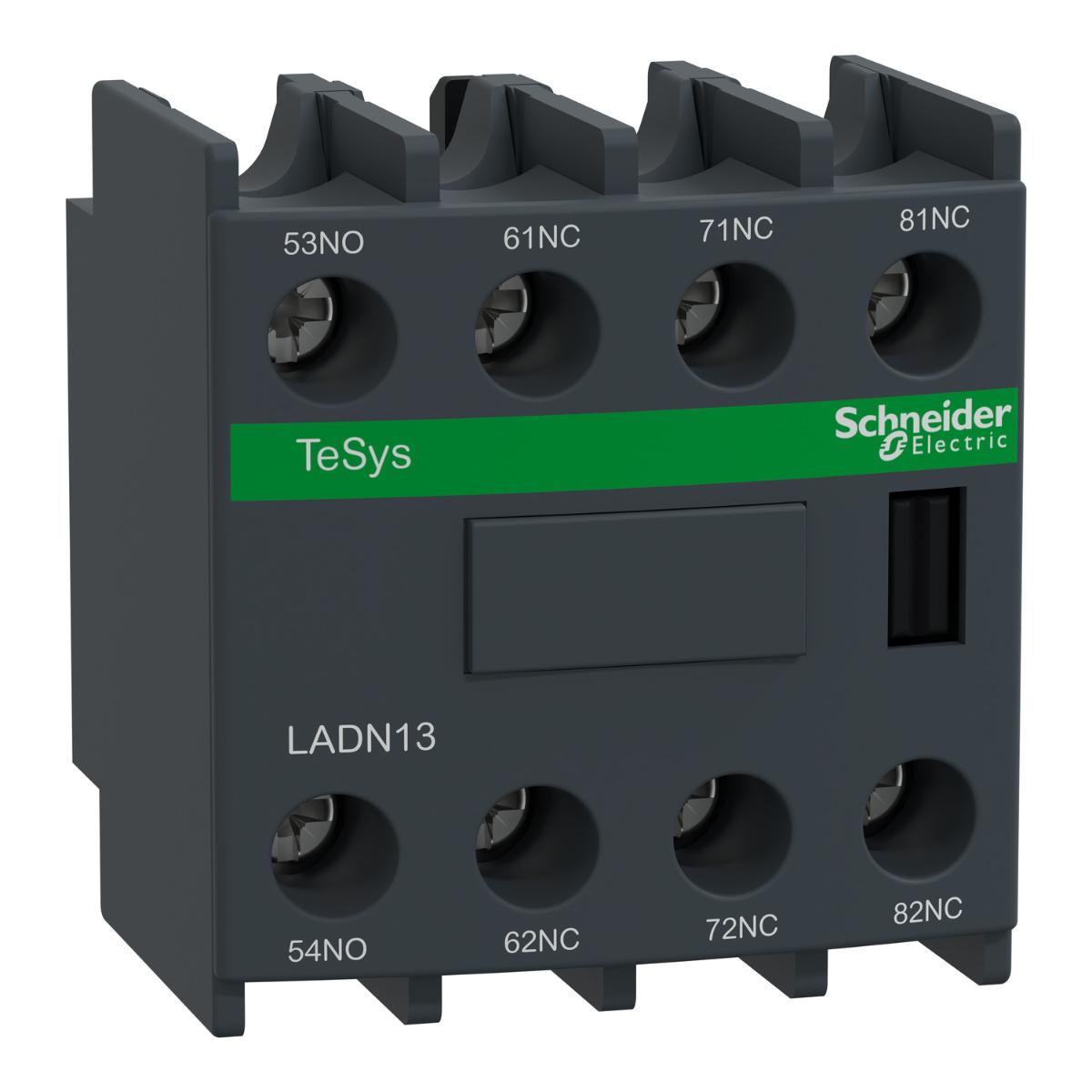

Schneider Electric LADN13 Auxiliary Contact Block, TeSys D, TeSys Deca, 1NO + 3NC, front mounting, screw clamp terminals, Dark Grey

Code: SCHLADN13

Brand: Schneider

Unit of measure: EACH

Description

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+3NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Features:
• Free of Substances of Very High Concern above the threshold
•
•
•
•
•
•
•
•

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact
Mount	Front
Ambient air temperature for operation	-5-60 °C
Minimum switching current	5 mA
Irms rated making capacity	250 A DC conforming to IEC 60947-5-1
[Ith] conventional free air thermal current	10 A (at 60 °C)
Supplier Code	LADN13
Ambient air temperature for storage	-60-80 °C
GrosWeight	61.0 g
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
360Image	https://visuals.se.com/LADN13_360VH_ODA19/20200203T1346/360
Protection type	gG fuse 10 A
Insulation resistance	> 10 MOhm
IP degree of protection	IP20 conforming to IEC 60529
Range	TeSys
Weight	0.05 kg
Item Name	Contact Block
Range compatibility	TeSys D LC1D
Volume	111.8 cm3
Protective treatment	TH conforming to IEC 60068
Tightening torque	1.7 N.m - with screwdriver Philips No 2
Current	10A
[Ie] rated operational current	0.55 A at 125 V DC-13
Connections - terminals	screw clamp terminals 1 cable(s) 1-4mm²flexible without cable end
Standard	CSA, UL Listed
Permissible short-time rating	140 A 60 °C 100 ms
Depth	42mm
Colour	Dark Grey
Pole contact composition	1 NO + 3 NC
Auxiliary contacts operation	instantaneous
Mechanical durability	30 Mcycles
Voltage	690 V
Environmental characteristic	normal environment
Height	48mm
Minimum switching voltage	17 V
Width	44mm
Operating altitude	3000 m
Device short name	LADN
Shielding continuity terminal	without
[Ue] rated operational voltage	690 V AC 25...400 Hz
[Ui] rated insulation voltage	600 V conforming to UL
Standards	CSA C22.2 No 60947-5-1
Product certifications	UKCA
Brand Name	Schneider Electric
IP Rating	IP20
Length	5.2 cm
Product name	TeSys Deca
Mounting location	front
Net weight	0.05 kg
Product or component type	auxiliary contact block
