Schneider LP1D40008MD TeSys Deca contactor,4P(2NO+2NC),AC-1,<=440V 60A,220V DC coil

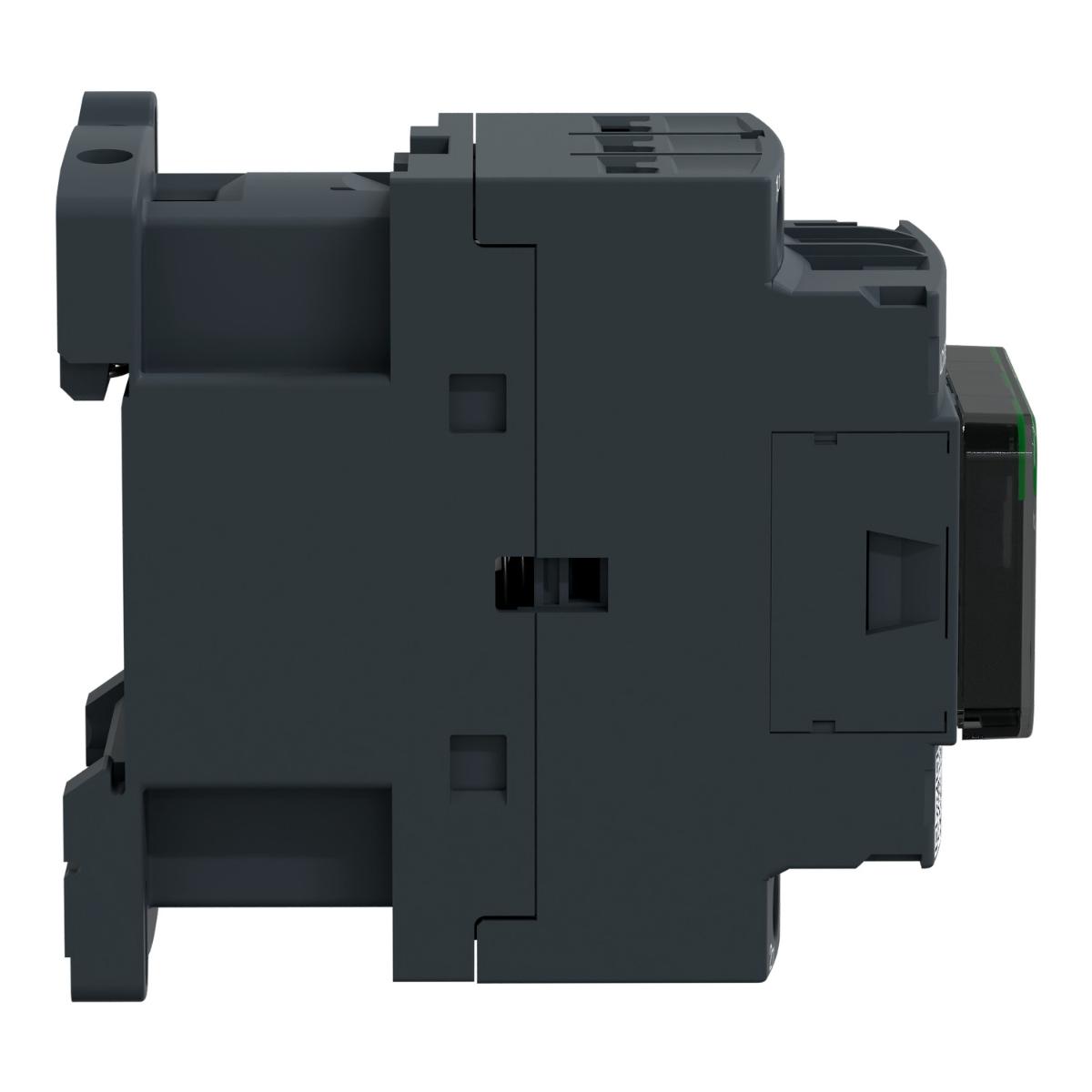

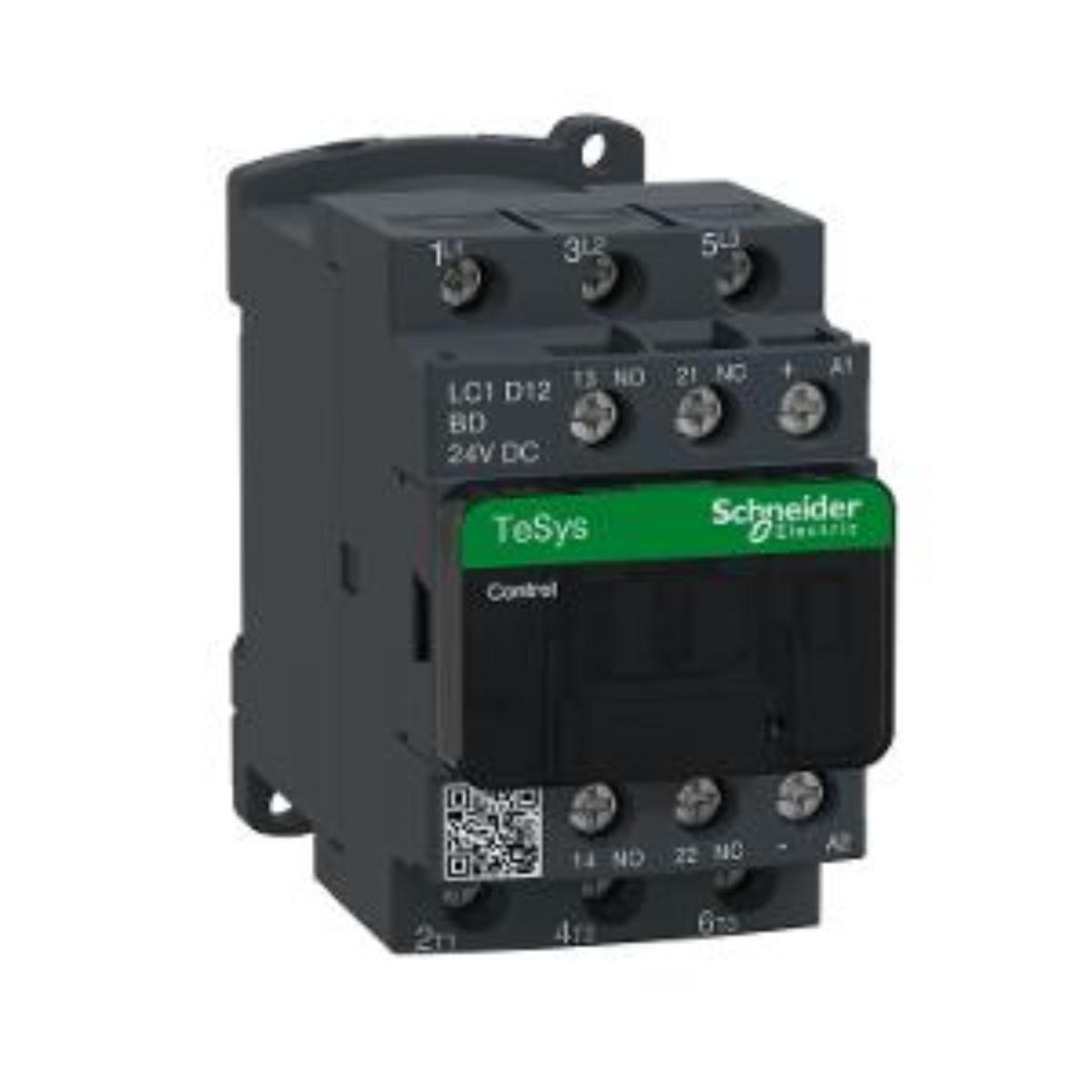

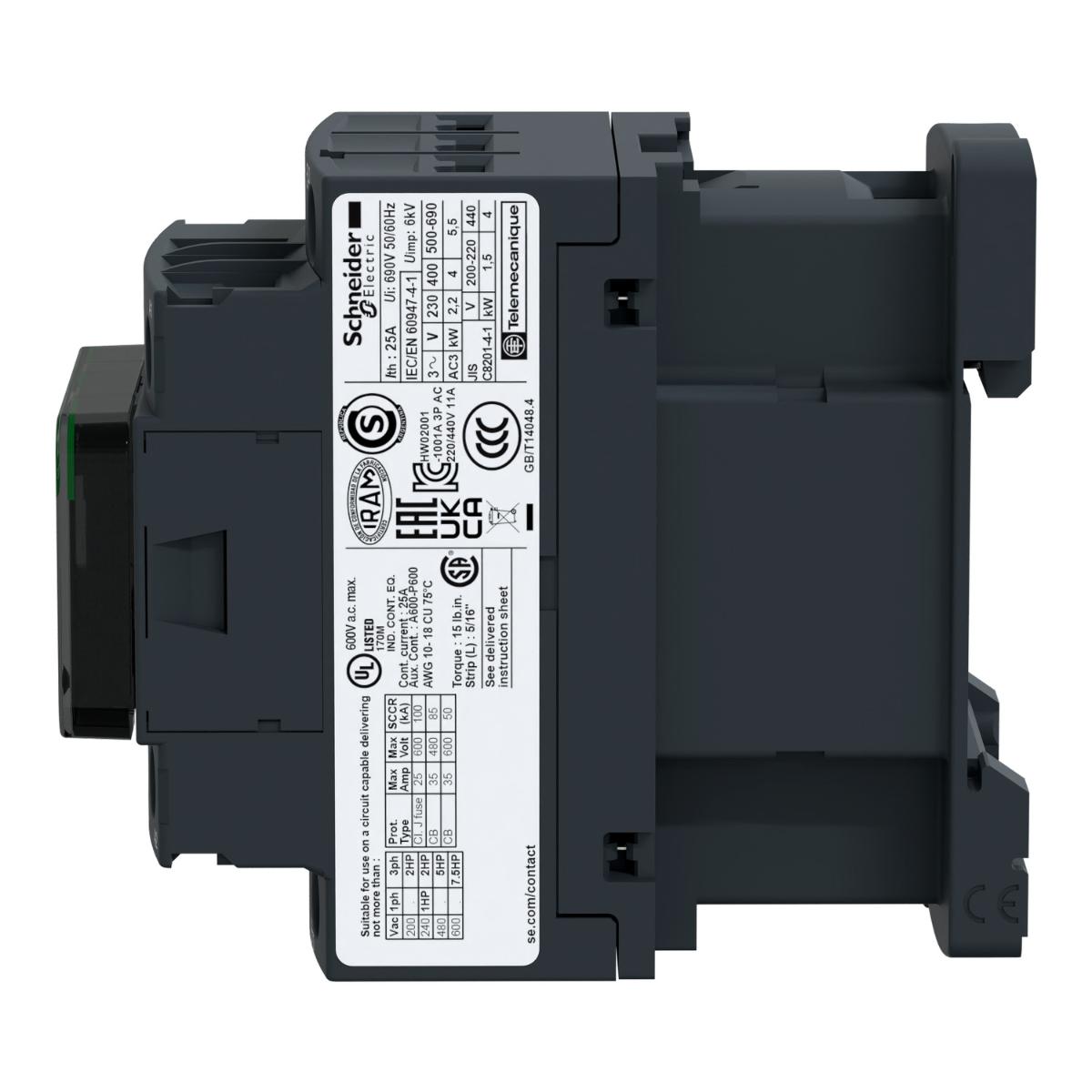

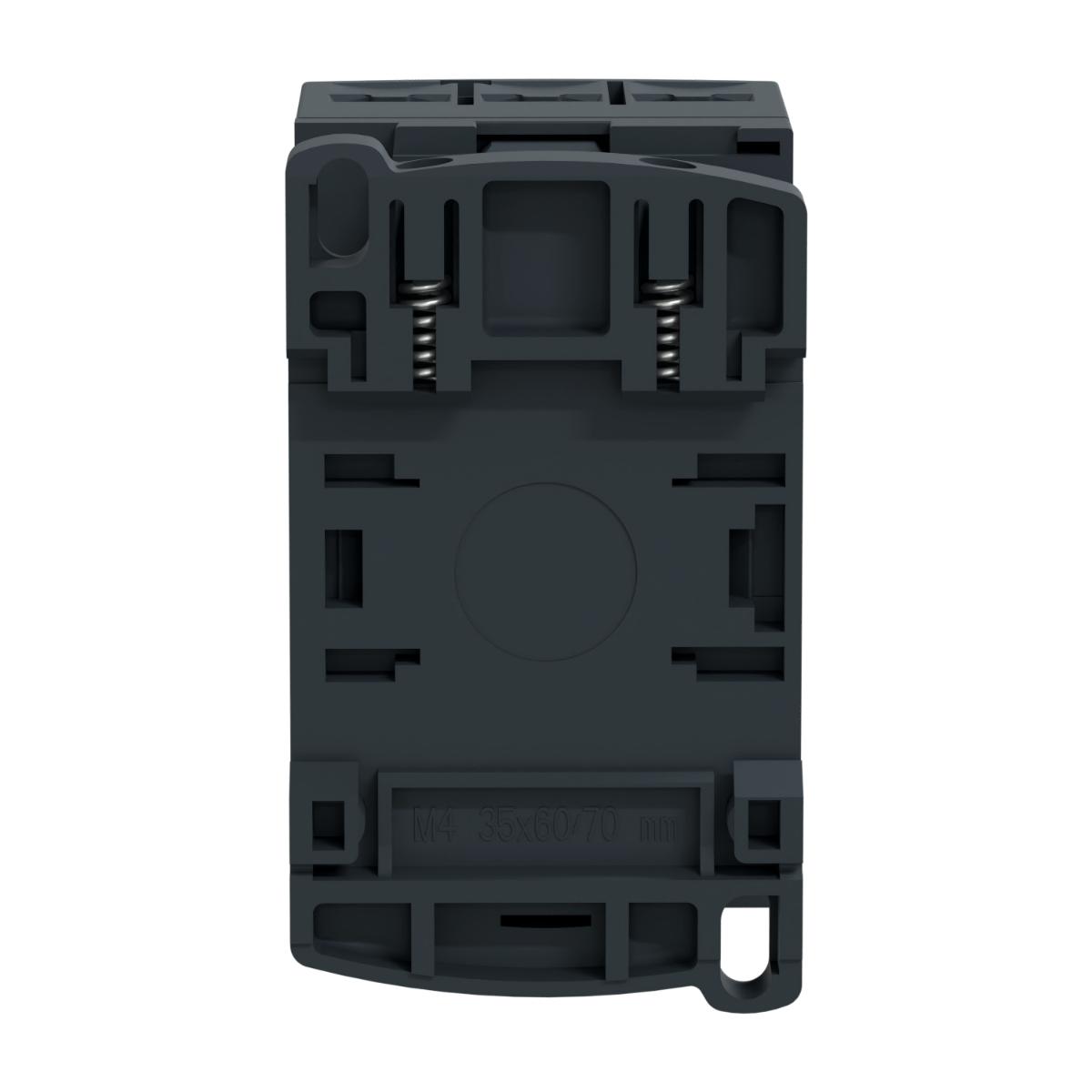

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Features:
• New modern look & feel of all machines
• Easier to install and operate with multi-standard screws
• With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
• Digital customer experience for technical documents
