Schneider Electric LC1D150AEHE, Contactor, Tesys Deca Advanced, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48-130V AC/DC coil,connector

Code: SCHLC1D150AEHE

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric LC1D150AEHE, Contactor, Tesys Deca Advanced, 3P(3NO), AC-3/AC-3e, <=440V, 150A, 48-130V AC/DC coil,connector

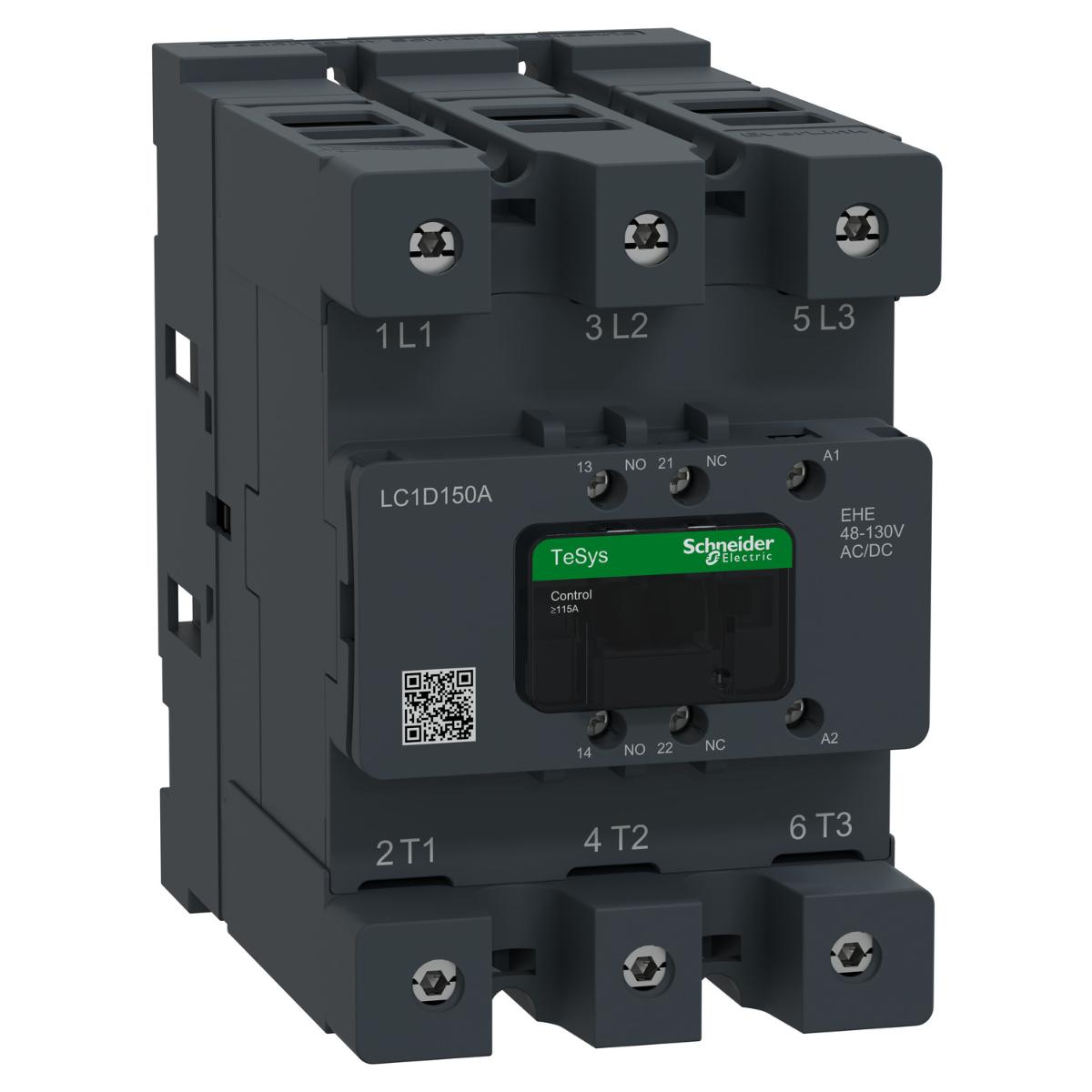

TeSys Deca Advanced contactor, 3 poles (3NO) for category AC-3 applications up to 150A 75kW@440V. It is equipped with a 48-130V AC/DC wide-band electronic coil that has lower power consumption, along with integrated 1NO+1NC auxiliary contacts. It can be installed in any orientation, and LRD43 could be directly mounted below contactor. The operating temperature range is between -40°C and 70°C, and it can be installed at altitudes of up to 3000m without derating. It is designed for demanding applications with improved performance under harsh environment including salt-mist, dust and high shock. The dimension is 152mm x 97mm x 155mm (H x W x D). Compact size enables panel space savings. Simple wiring with all front access to control circuit enhances accessibility and safety. Front IP20 as well as improved main power connection robustness is achieved by EverLink. Multi standards certified (CE,CB,CCC,cULus,KC,RCM). Unique QR code provides quick access to complete product data.

Features:
• Efficient solution combining robustness with ease of use, ensuring customers experience reliability without complexity
• Electronic wide-band coil withstands voltage fluctuations allows quick coil operating frequency and ensures long uptime
• Sustainability is advanced with 50% coil inrush savings.
• Fewer references covering wider applications means simpler to select and less inventory to carry
• Compact size with robust EverLink power connection improves operational efficiency and eliminates future maintenance

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	motor control, resistive load
Hold-in power consumption in W	5.1-5.1 W at 20 °C
Maximum operating rate	2400 cyc/h at 60 °C, 3600 cyc/h at Uc at 20 ºC
Non-overlap time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Minimum switching current	5 mA for signalling circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1, 1885 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Signalling circuit frequency	16.67...400 Hz
[Ith] conventional free air thermal current	200 A (at 60 °C) for power circuit
360Image	https://visuals.se.com/LC1D150AEHE_Image-StopMotion/20240816T1438/360
Inrush power in W	120-120 W (at 20 °C)
Inrush power in VA	170-170 VA (at 20 °C)
Hold-in power consumption in VA	7.5-7.5 VA (at 20 °C)
Safety reliability level	B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
Insulation resistance	> 10 MOhm for signalling circuit
IP degree of protection	IP20 front face conforming to IEC 60529
Range	TeSys Deca
Overvoltage category	III
Electrical durability	0.5 Mcycles 200 A AC-1 at Ue <= 440 V, 0.85 Mcycles 150 A AC-3 at Ue <= 440 V, 0.85 Mcycles 150 A AC-3e at Ue <= 440 V
Protective treatment	none conforming to IEC 60068-2-30
Protective cover	with
Pollution degree	3
Average impedance	0.45 mOhm - Ith 200 A 50 Hz for power circuit
Auxiliary contact composition	1 NO + 1 NC
[Ie] rated operational current	150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Control circuit type	AC at 50/60 Hz, DC
Associated fuse rating	0.63 A gG for control circuit, 10 A gG for signalling circuit, 125 A aM at <= 690 V for power circuit, 160 A aM at <= 440 V for power circuit, 250 A gG at <= 690 V for power circuit

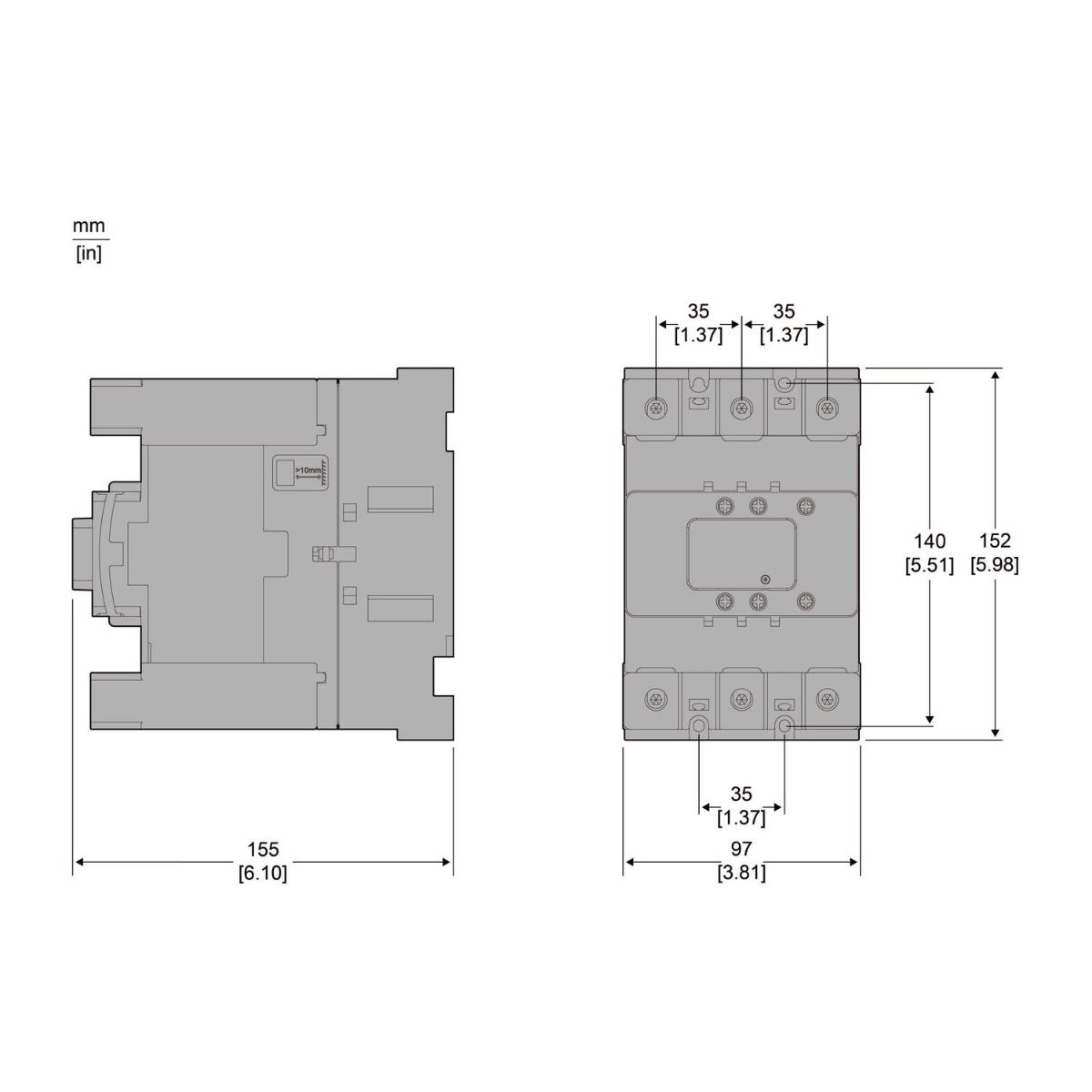

Depth	155 mm
Fire resistance	850 °C conforming to IEC 60695-2-11
Mounting support	plate
Pole contact composition	3 NO
Range of product	TeSys Deca Advanced
Climatic withstand	conforming to IACS E10 exposure to damp heat, conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Mechanical durability	8 Mcycles
Permissible ambient air temperature around the device	-40-60 °C operation, 60-70 °C with derating, -60-80 °C storage
Coil technology	built-in bidirectional peak limiting diode suppressor
Height	152 mm
Minimum switching voltage	17 V for signalling circuit
Poles description	3P
Width	97 mm
Operating altitude	0...3000 m without derating
Operating time	10...80 ms opening, 20...90 ms closing
[Uc] control circuit voltage	48...130 V AC 50/60 Hz, 48...130 V DC
Device short name	LC1D
Compatibility code	LC1D
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1
[Ue] rated operational voltage	power circuit: <= 1000 V AC 16.67...400 Hz, power circuit: <= 300 V DC
[Ui] rated insulation voltage	power circuit: 1000 V conforming to IEC 60947-4-1, power circuit: 600 V CSA certified, power circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 600 V UL certified, signalling circuit: 690 V conforming to IEC 60947-1
Standards	CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1, UL 60947-5-1
Control circuit voltage limits	0.1 Uc Max (-40-60 °C):drop-out AC/DC, 0.8 Uc Min...1.1 Uc Max (-40-60 °C):operational AC/DC
Product certifications	CB Scheme, CCC, CE, cULus, EU-RO-MR by DNV-GL, UKCA
Brand Name	Schneider Electric
Heat dissipation	1.5-1.5 W at 20 °C
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Power dissipation per pole	22 W AC-1, 8 W AC-3, 8 W AC-3e
Motor power hp	100 hp at 460/480 V 60 Hz, 125 hp at 575/600 V 60 Hz, 40 hp at 200/208 V 60 Hz, 50 hp at 230/240 V 60 Hz
Rated breaking capacity	1440 A at 440 V for power circuit conforming to IEC 60947
Utilisation category	AC-1, AC-3, AC-3e, AC-4, DC-1, DC-3, DC-5
Net weight	2.4 kg
Product or component type	contactor
