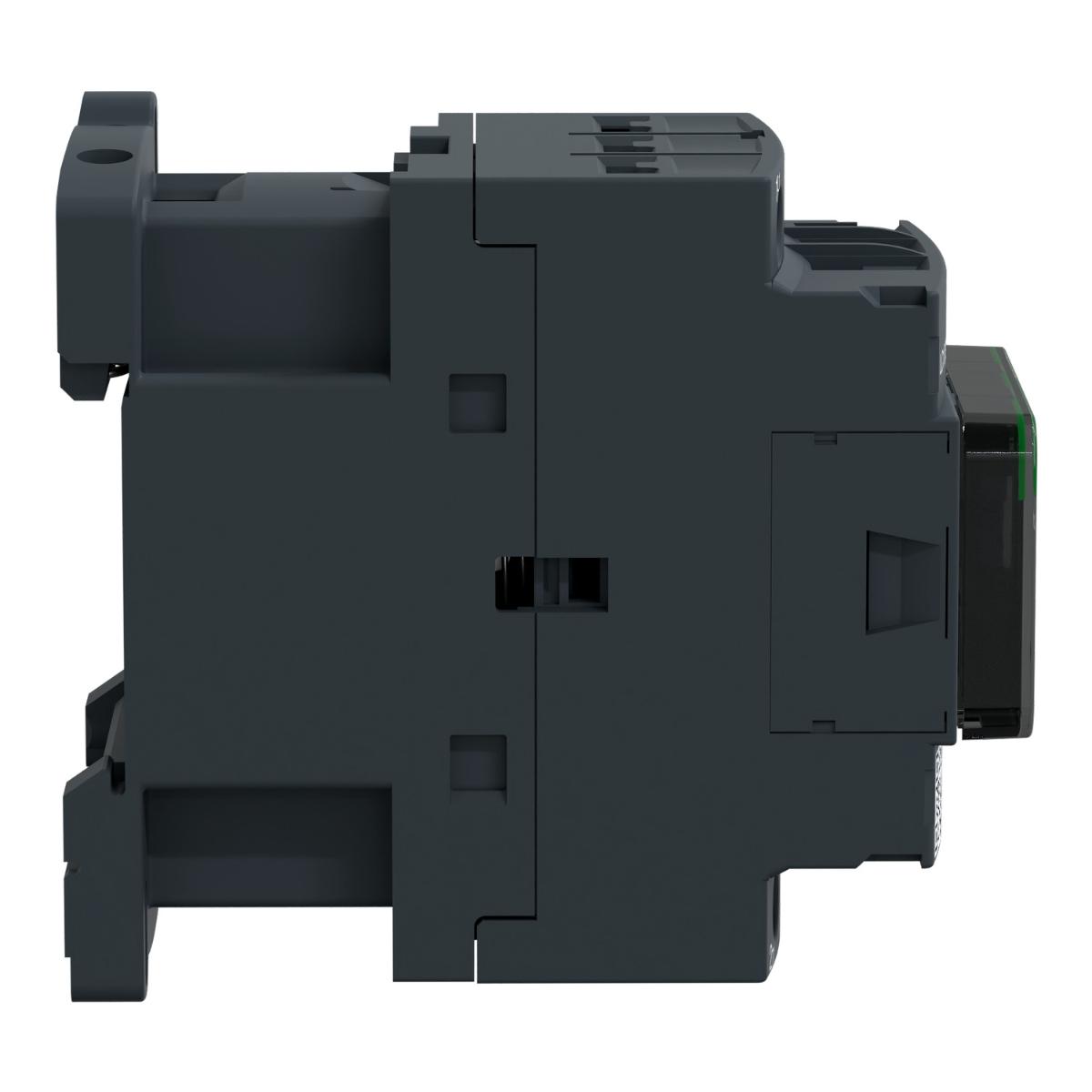

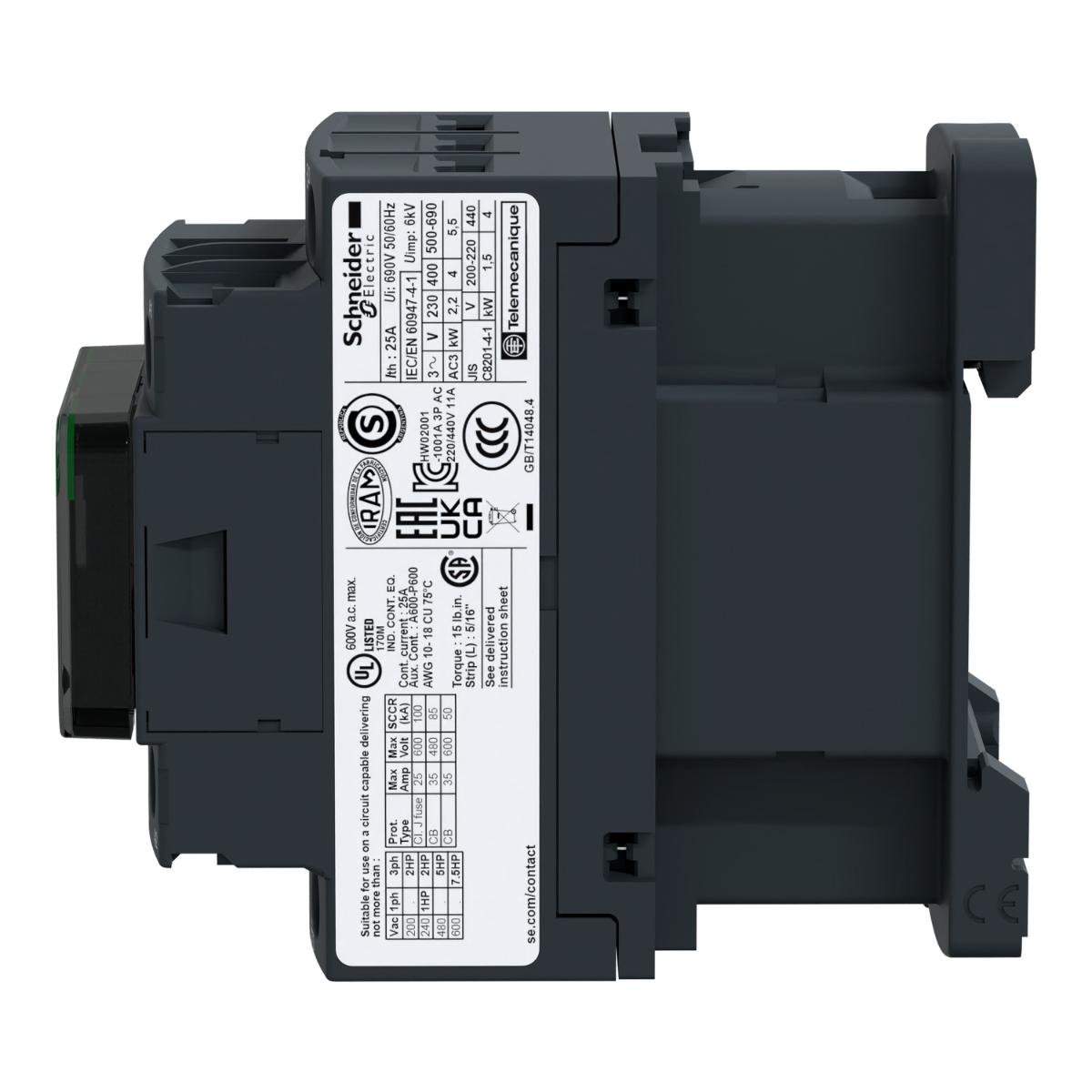

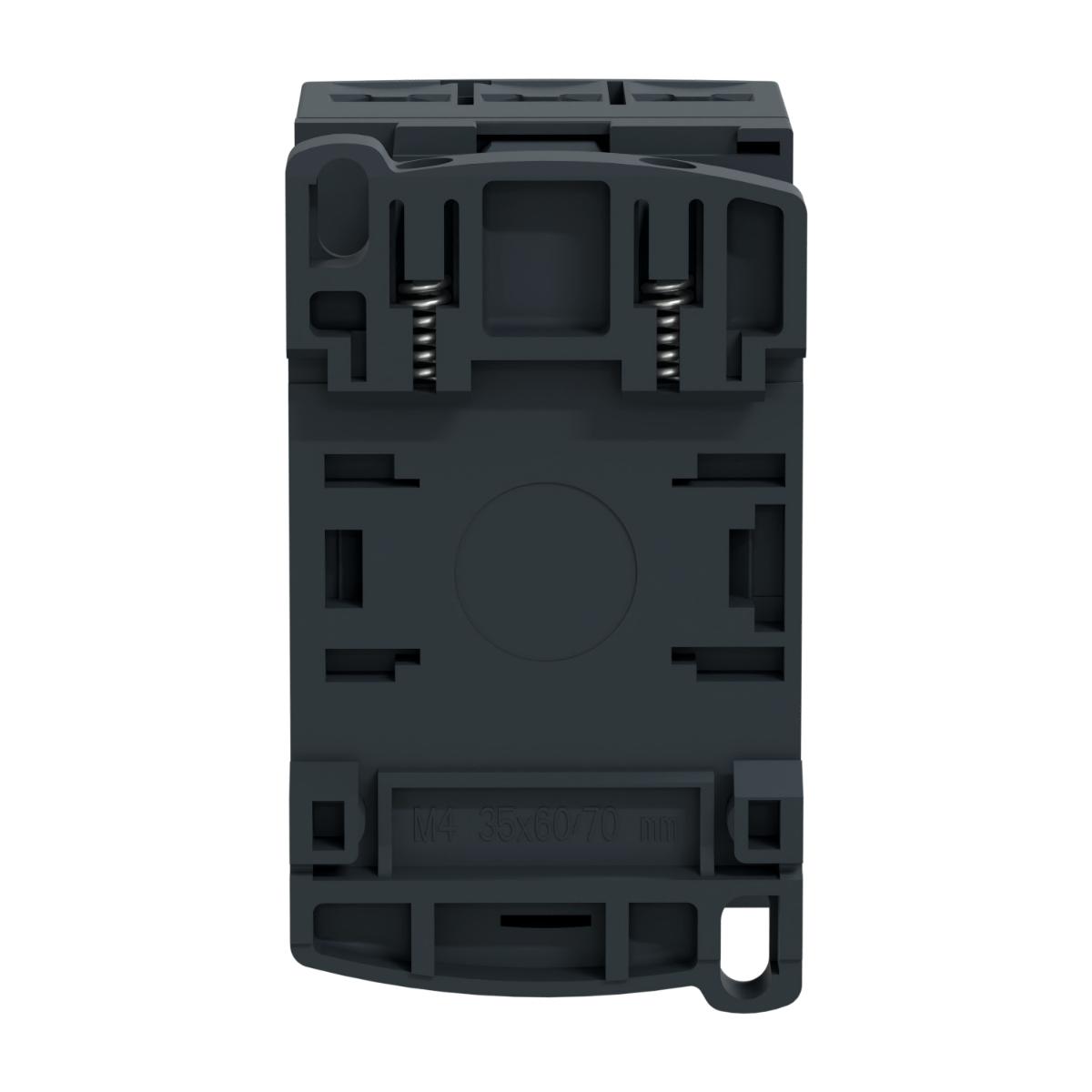

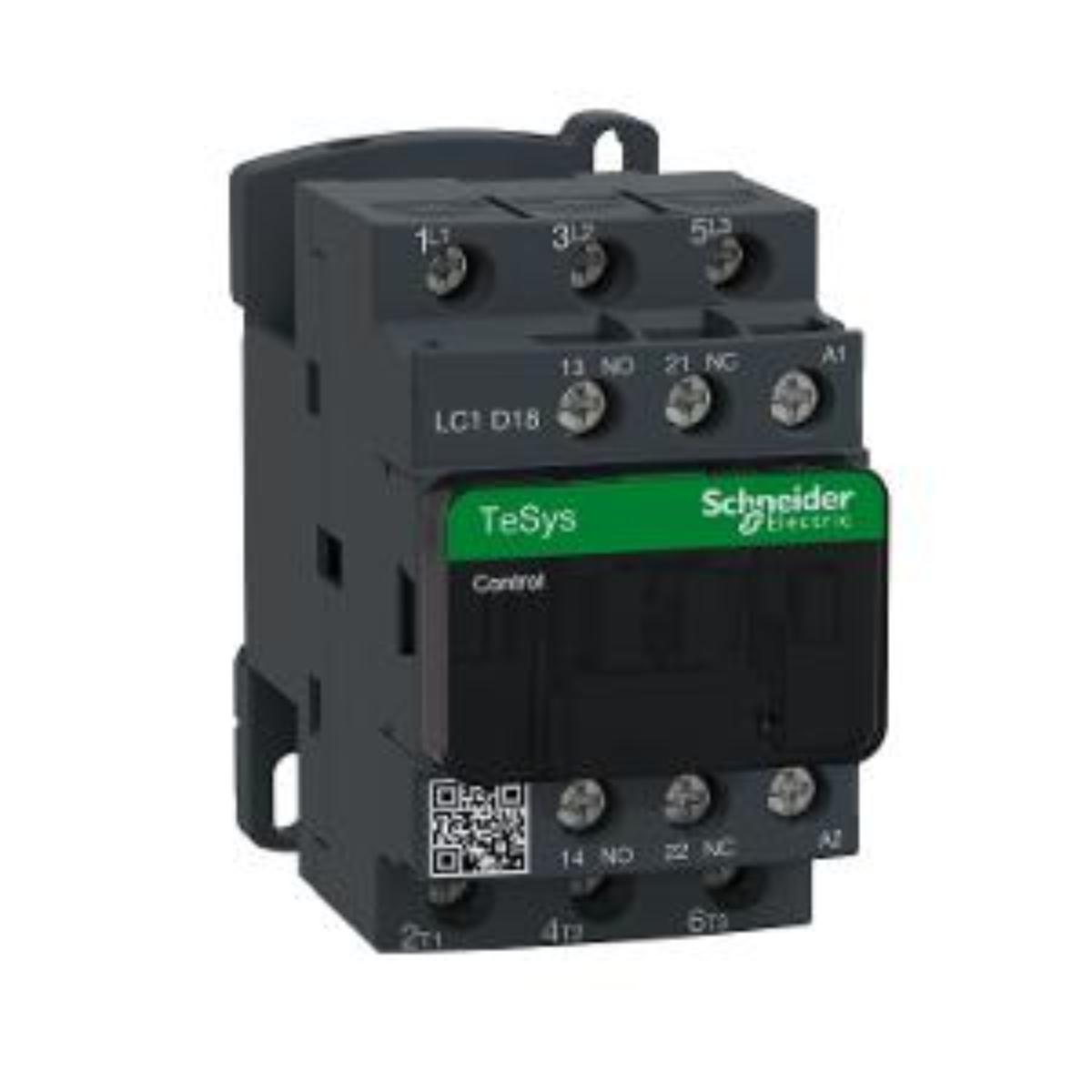

Schneider LC1D18B7 TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 24VAC 50/60Hz coil

Code: SCHLC1D18B7

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider ZBY9W3B140 Illuminated ring 60mm, Harmony, plastic, yellow, white or red integral LED, unmarked, 24V AC DC

TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Poles	3 Poles
Mount	Rail
Standard	CSA C22.2 No 14, EN 60947-5-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1 and UL 508
Depth	86 mm
Colour	Black
Supplier Code	LC1D18B7
Voltage	<= 300 V
Connection Type	Screw Clamp
Carton Quantity	20
Height	77 mm
Flame Retardance	V1
Width	45 mm
Breaking Capacity	300 A
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
360Image	https://visuals.se.com/LC1D18B7_360VH_ODA19/20200203T1346/360
Durability	15 Cycles
Pole Configuration	3 Pole
Material	Metal and Plastic
Range	TeSys
Weight	0.33 kg
Brand Name	Schneider Electric
Item Name	Contactor
Box Quantity	1
Contact Configuration	3 NO
IP Rating	IP20
Coil Voltage	24V AC
Frequency	50 - 60Hz
Current	18A
