Description

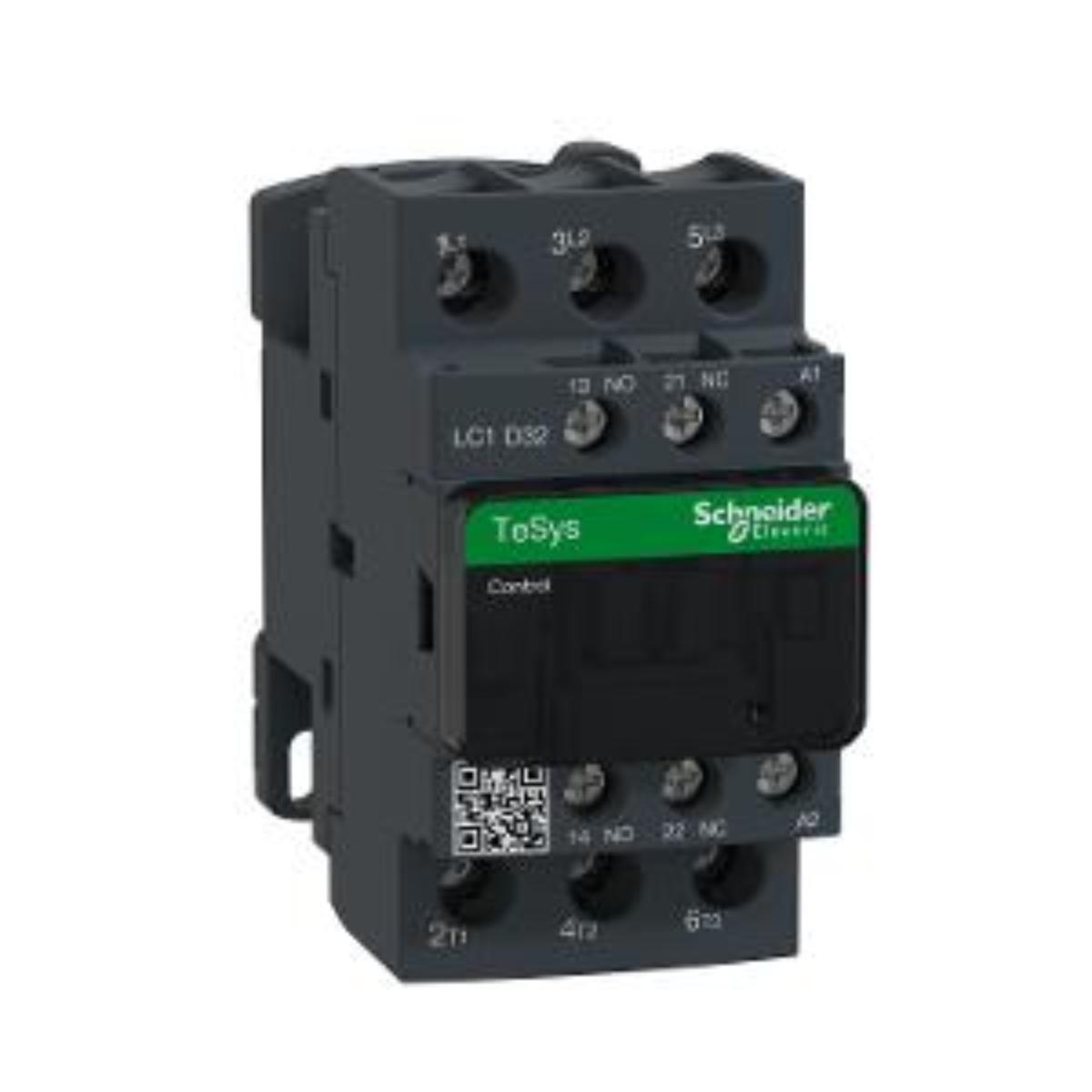

Schneider LC1D32EL TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 48VDC low consumption coil
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Poles |
| Mount | Plate |
| Depth | 92 mm |
| Supplier ref | LC1D32F7 |
| Coil Power Rating | 15 kW |
| Voltage | <= 300 V |
| Supplier Code | LC1D32F7 |
| UNSPCS | 39121300 |
| Height | 85 mm |
| Width | 45 mm |
| Breaking Capacity | 550 A |
| Maximum Load Current | 32 A |
| Pole Configuration | 3 Pole |
| Range | TeSys Deca |
| Weight | 0.375 kg |
| Brand Name | Schneider Electric |
| Item Name | Contactor |
| Box Quantity | 1 |
| Contact Configuration | 1 NO + 1 NC |
| Product Type | Contactor |
| IP Rating | IP20 |
| Coil Voltage | 110 VAC |
| Number of Poles | 3 |
