Description

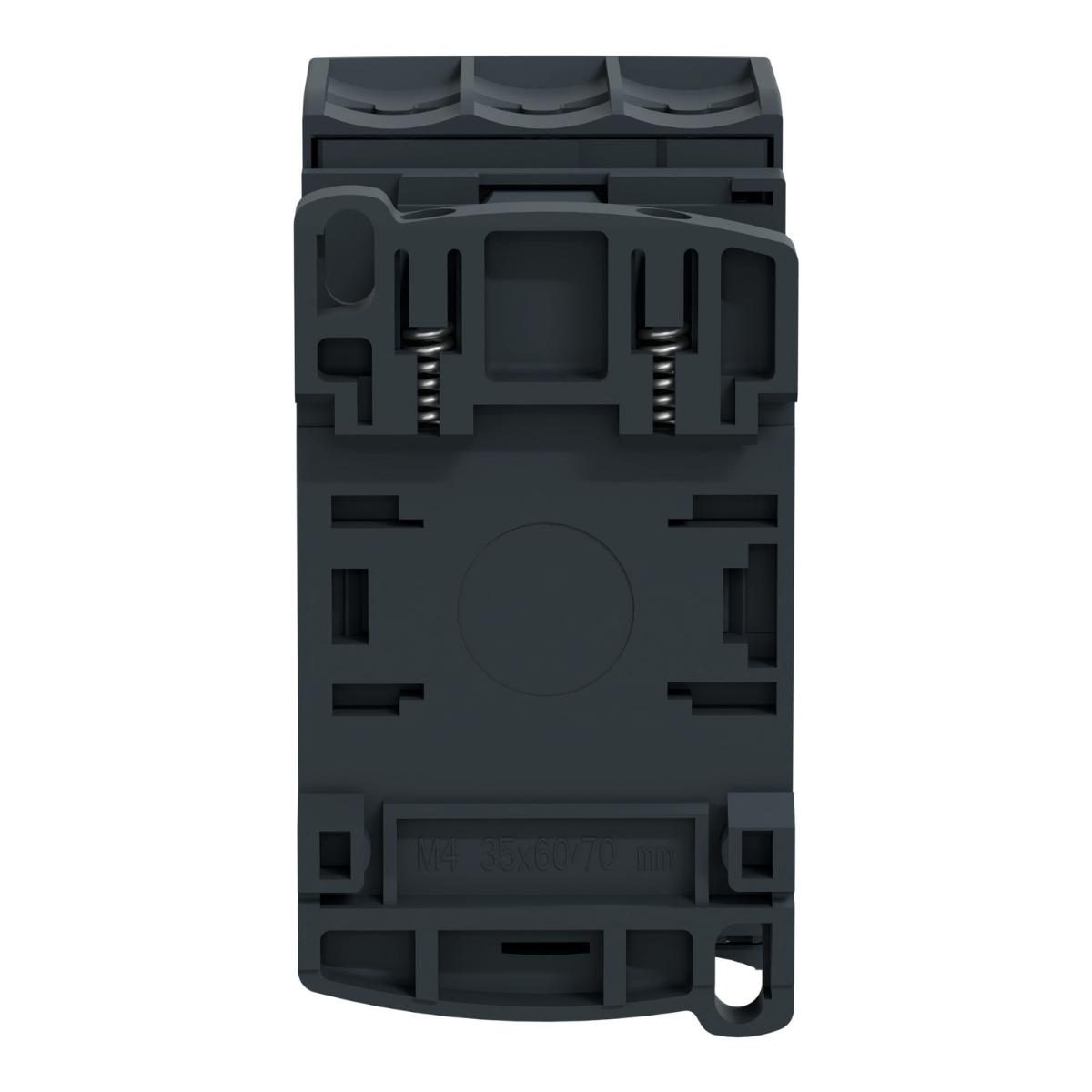

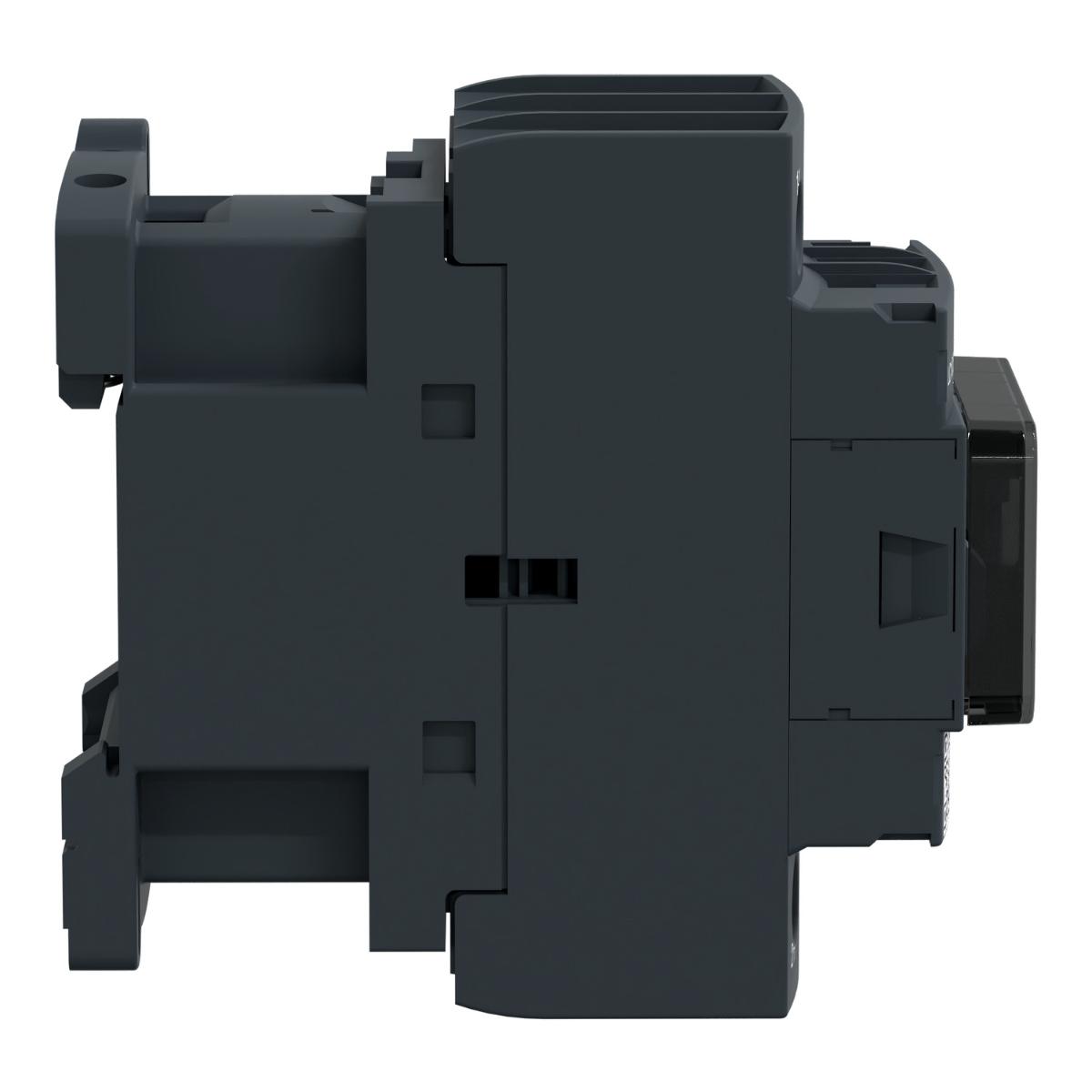

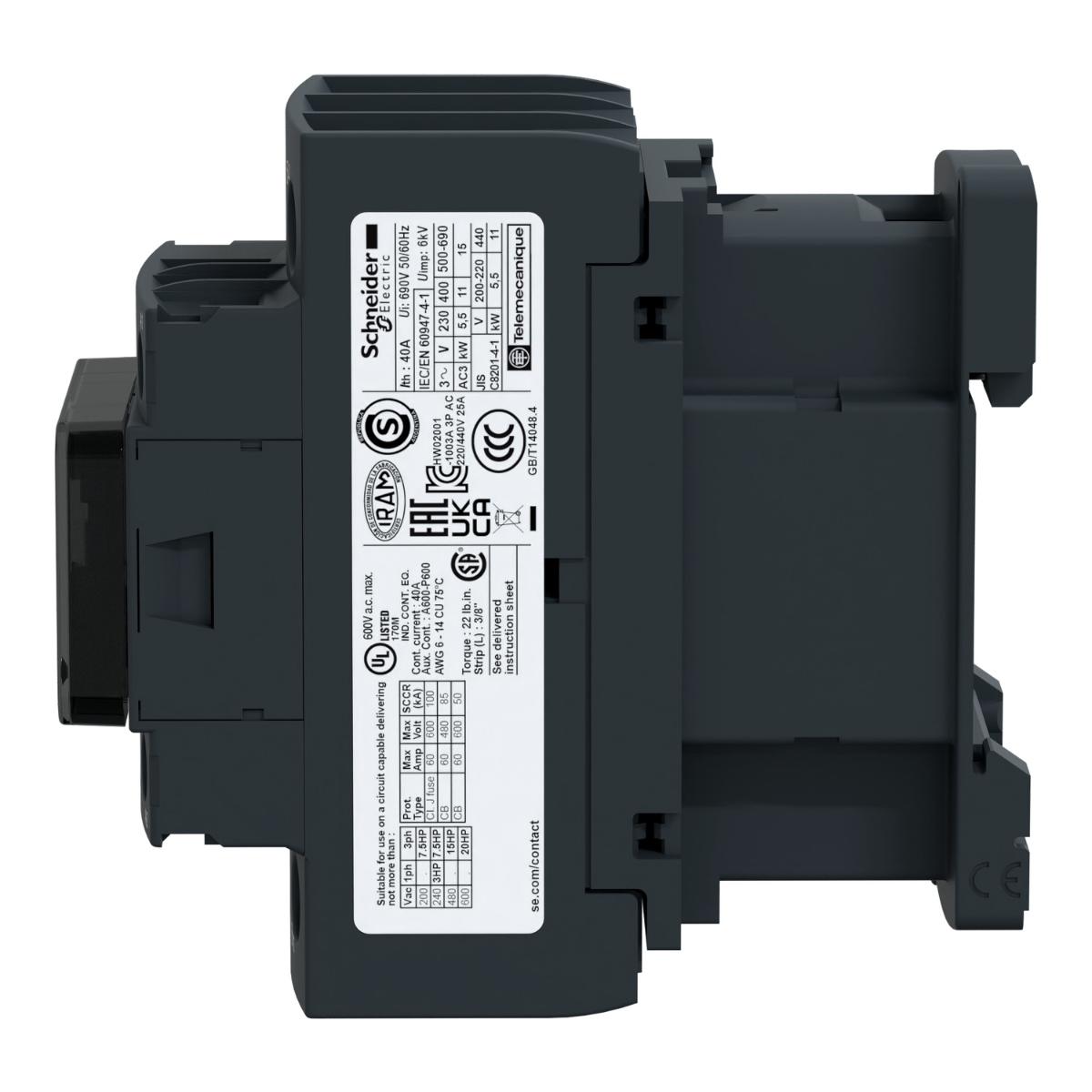

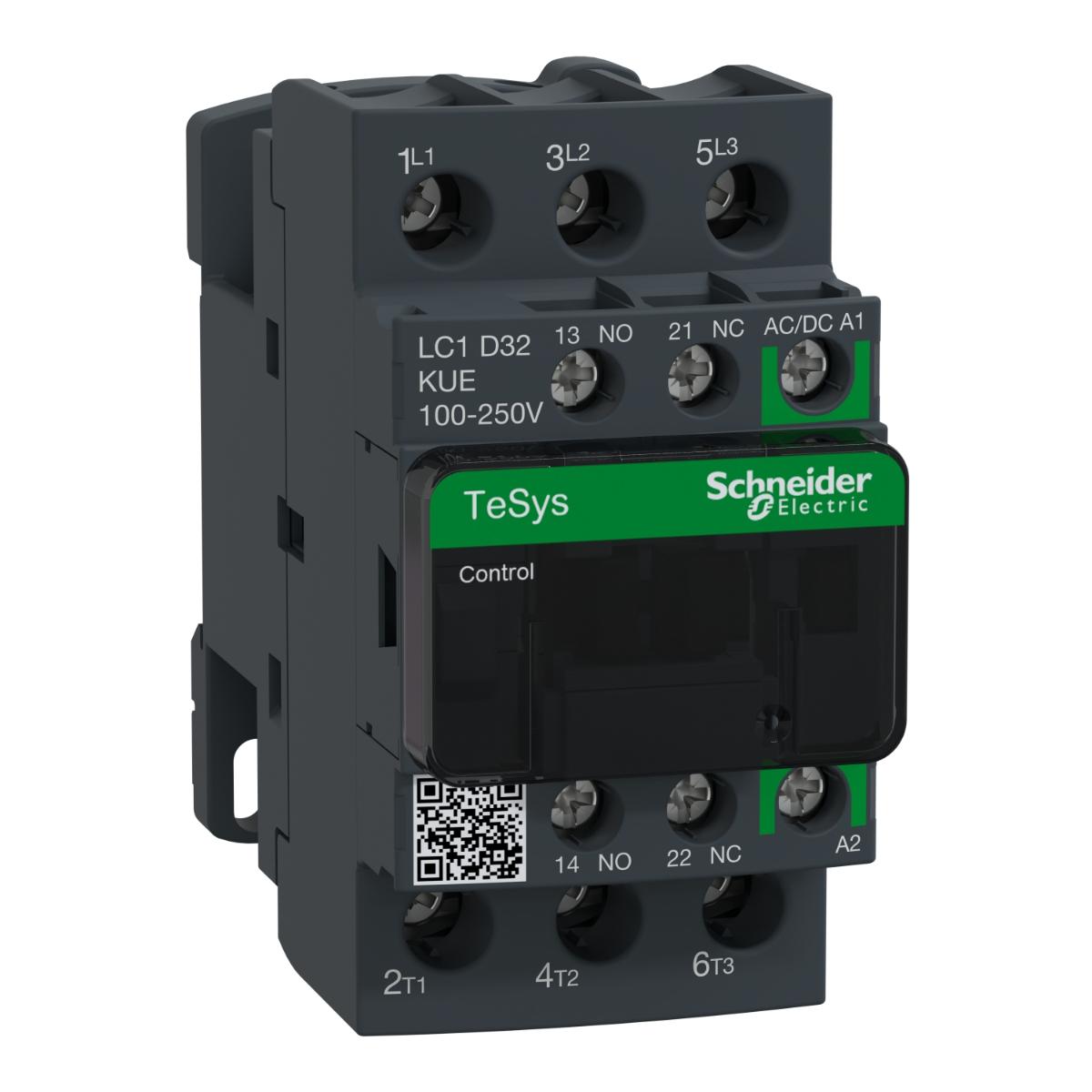

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a low sealed consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
•
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Warranty | 18 months |
| Mount | Plate |
| Pole Configuration | 3 Pole |
| Range | TeSys D |
| Depth | 92 mm |
| Weight | 0.438 kg |
| Brand Name | Schneider Electric |
| IP Rating | IP20 |
| Length | 12.000 cm |
| Volume | 627.000 cm3 |
| Voltage | <= 690 V |
| Supplier Code | LC1D32KUE |
| Height | 5.500 cm |
| GrosWeight | 456.000 g |
| Width | 9.500 cm |
| Breaking Capacity | 550 A |
