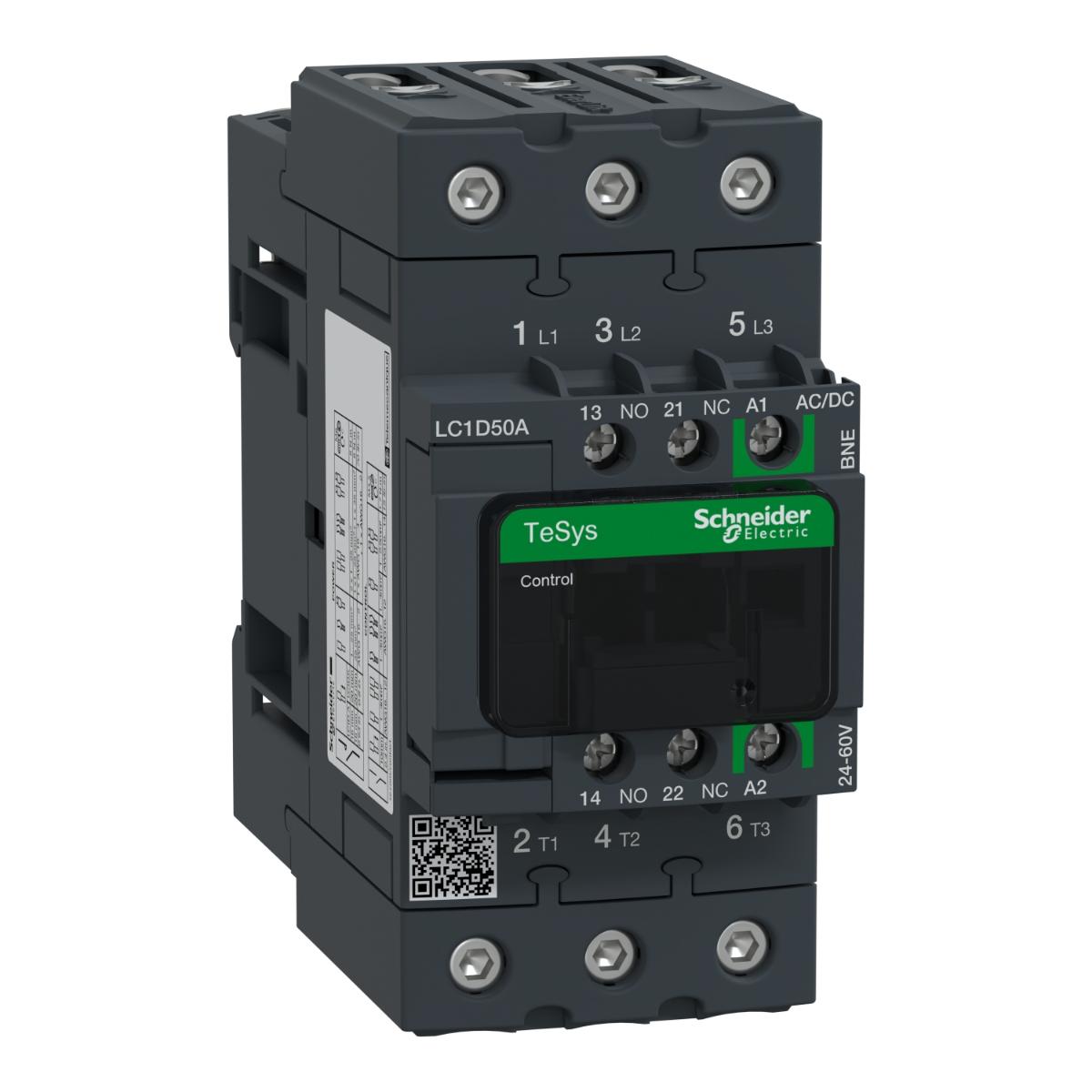

Schneider Electric LC1D50ABNE Contactor, TeSys D, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24 to 60VAC/DC coil, EverLink

Code: SCHLC1D50ABNE

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider LC1D38N7 TeSys, TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 415VAC 50/60Hz coil

TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a low consumption 24-60V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	motor control
Hold-in power consumption in W	0.7-0.7 W at 20 °C
Maximum operating rate	3600 cyc/h at 60 °C
Non-overlap time	1.5 ms on energisation between NC and NO contact
Mount	Rail
Minimum switching current	5 mA for signalling circuit
Irms rated making capacity	250 A DC for signalling circuit conforming to IEC 60947-5-1
Signalling circuit frequency	25...400 Hz
[Ith] conventional free air thermal current	10 A (at 60 °C) for signalling circuit
Supplier Code	LC1D50ABNE
Breaking Capacity	900 A
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
[Icw] rated short-time withstand current	208 A 40 °C - 1 min for power circuit
360Image	https://visuals.se.com/LC1D50ABNE_360VH_ODA19/20200716T2200/360
Inrush power in W	16-16 W (at 20 °C)
Inrush power in VA	15-15 VA 50/60 Hz (at 20 °C)
Hold-in power consumption in VA	1-1 VA 50/60 Hz (at 20 °C)
Motor power kW	33 kW at 660...690 V AC 50 Hz (AC-3)
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Insulation resistance	> 10 MOhm for signalling circuit
IP degree of protection	IP20 front face conforming to IEC 60529
Range	TeSys Deca
Flame retardance	V1 conforming to UL 94
Weight	0.997 kg
Overvoltage category	III
Electrical durability	1.8 Mcycles 42 A AC-3e at Ue <= 440 V
Protective cover	with
Pollution degree	3
Tightening torque	power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35mm² hexagonal screw head 4mm
Average impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Auxiliary contact composition	1 NO + 1 NC
[Ie] rated operational current	50 A (at <60 °C) at <= 440 V AC-3 for power circuit
Connections - terminals	power circuit: EverLink BTR screw connectors 1 1-35mm² - cable stiffness: flexible without cable end
Control circuit type	AC/DC at 50/60 Hz AC/DC electronic
Associated fuse rating	100 A gG at <= 690 V coordination type 1 for power circuit
Depth	120mm
Mounting support	plate
Pole contact composition	3 NO
Fire resistance	850 °C conforming to IEC 60695-2-1
Voltage	<= 690 V
Mechanical durability	6 Mcycles
Permissible ambient air temperature around the device	60-70 °C with derating
Climatic withstand	conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Coil technology	built-in bidirectional peak limiting
Height	122mm
Minimum switching voltage	17 V for signalling circuit
Poles description	3P
Width	55mm
Operating altitude	0...3000 m
Operating time	20...120 ms opening (date code >= 17221)
Device short name	LC1D
[Uc] control circuit voltage	24...60 V DC
Compatibility code	LC1D
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1
Mechanical robustness	vibrations contactor closed (4 Gn- 5...300 Hz)
[Ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
Pole Configuration	3 Pole
[Ui] rated insulation voltage	signalling circuit: 690 V conforming to IEC 60947-1
Standards	EN/IEC 60947-5-1
Control circuit voltage limits	1...1.1 Uc (60-70 °C):operational AC/DC
Product certifications	UKCA
Brand Name	Schneider Electric
Heat dissipation	0.7-0.7 W at 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Power dissipation per pole	3.7 W AC-3e
IP Rating	IP20
Motor power hp	15 hp at 230/240 V AC 60 Hz for 3 phases motors
Rated breaking capacity	900 A at 440 V for power circuit conforming to IEC 60947
Utilisation category	AC-3
Net weight	0.997 kg
Product or component type	contactor
