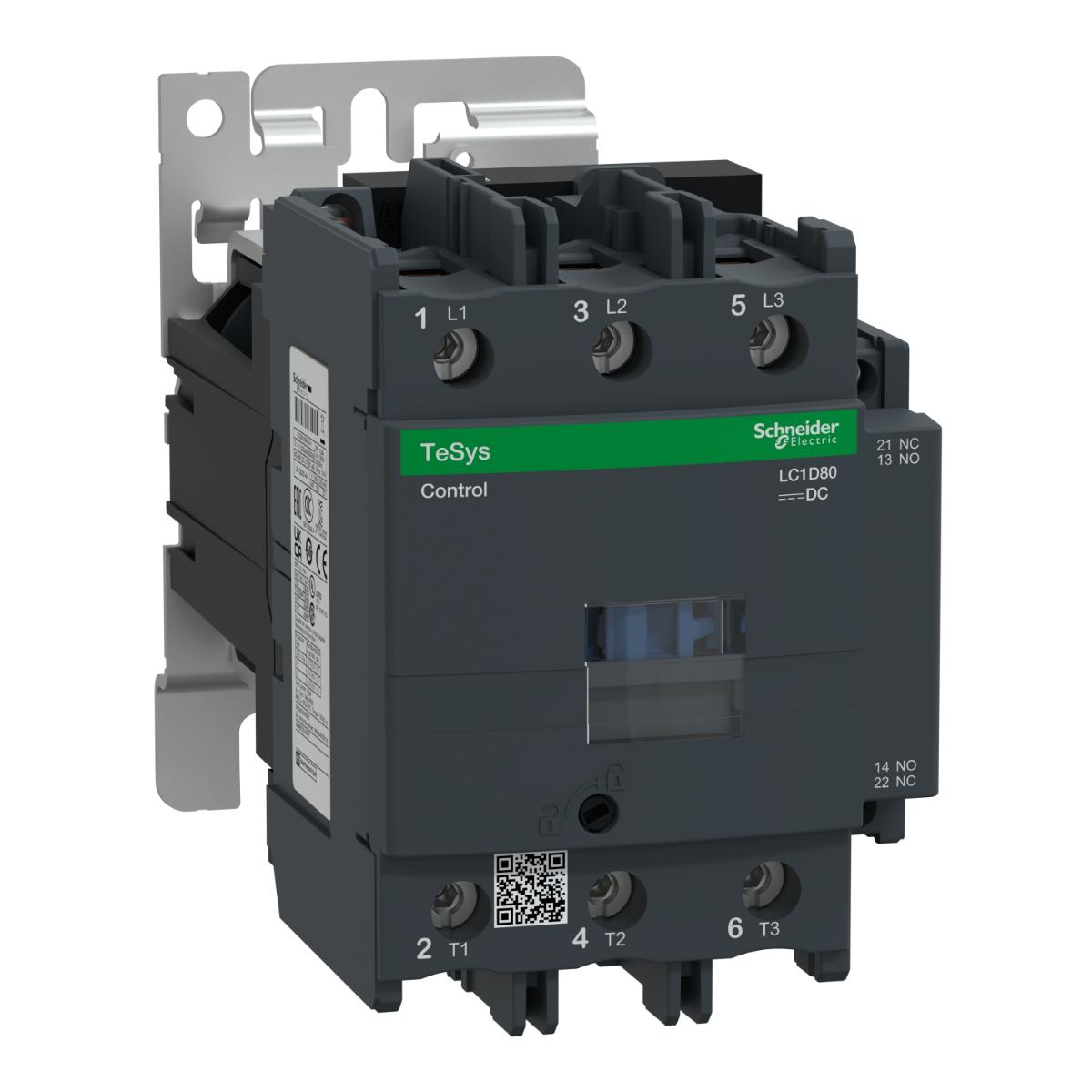

Schneider Electric LC1D80BD Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 24V DC standard coil, screw clamp terminals

Code: SCHLC1D80BD

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider LC1D80008G7 Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Features:
• Long durability with high operating rate
• Green Premium product
• Multi sdandards certified makes it possible to wide application
• Easy installation and maintenance with compact design

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Contactor application	resistive load
Hold-in power consumption in W	22-22 W at 20 °C
Maximum operating rate	3600 cyc/h at 60 °C
Non-overlap time	1.5 ms on energisation between NC and NO contact
Mount	Plate
Minimum switching current	5 mA for signalling circuit
Irms rated making capacity	250 A DC for signalling circuit conforming to IEC 60947-5-1
Signalling circuit frequency	25...400 Hz
[Ith] conventional free air thermal current	125 A (at 60 °C) for power circuit
Supplier Code	LC1D80BD
Time constant	75 ms
Breaking Capacity	1100 A
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
[Icw] rated short-time withstand current	100 A - 1 s for signalling circuit
360Image	https://visuals.se.com/LC1D80BD_Image-StopMotion/20230420T0750/360
Inrush power in W	22-22 W (at 20 °C)
Motor power kW	37 kW at 380...400 V AC 50 Hz (AC-3e)
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Insulation resistance	> 10 MOhm for signalling circuit
IP degree of protection	IP20 front face conforming to IEC 60529
Range	TeSys
Flame retardance	V1 conforming to UL 94
Weight	2.59 kg
Overvoltage category	III
Electrical durability	1.5 Mcycles 80 A AC-3e at Ue <= 440 V
Protective treatment	TH conforming to IEC 60068-2-30
Protective cover	with
Pollution degree	3
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Average impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Auxiliary contact composition	1 NO + 1 NC
[Ie] rated operational current	80 A (at <60 °C) at <= 440 V AC-3e for power circuit
Connections - terminals	control circuit: screw clamp terminals 2 1-4mm² - cable stiffness: flexible without cable end
Control circuit type	DC standard
Associated fuse rating	160 A gG at <= 690 V coordination type 2 for power circuit
Depth	186mm
Mounting support	rail
Pole contact composition	3 NO
Fire resistance	850 °C conforming to IEC 60695-2-1
Voltage	<= 690 V
Mechanical durability	4 Mcycles
Permissible ambient air temperature around the device	60-70 °C with derating
Climatic withstand	conforming to IACS E10 exposure to damp heat
Coil technology	without built-in suppressor module
Height	127mm
Minimum switching voltage	17 V for signalling circuit
Poles description	3P
Width	85mm
Operating altitude	0...3000 m
Operating time	95...130 ms closing
Device short name	LC1D
[Uc] control circuit voltage	24 V DC
Compatibility code	LC1D
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1
Mechanical robustness	vibrations contactor closed (3 Gn- 5...300 Hz)
[Ue] rated operational voltage	power circuit: <= 690 V AC
Pole Configuration	3 Pole
[Ui] rated insulation voltage	power circuit: 600 V UL certified
Contact compatibility	M9
Standards	EN 60947-4-1
Control circuit voltage limits	1...1.1 Uc (55-70 °C):operational DC
Brand Name	Schneider Electric
Product certifications	CCC
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Power dissipation per pole	12.5 W AC-1
IP Rating	IP20
Motor power hp	15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Utilisation category	AC-4
Net weight	2.59 kg
Product or component type	contactor
